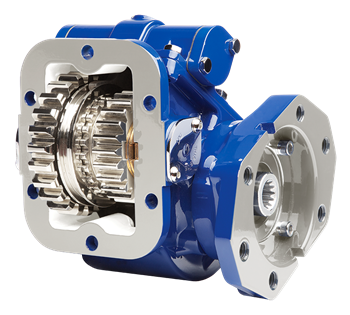

Muncie TG8S-KIT09-X1KG or TG8SKIT09X1KG is a TG8 Series power take-off with an 8-bolt housing and mechanical shift. This double-gear PTO takes power from the engine through the transmission into its own gearbox, which can then turn a hydraulic pump. The TG Series is available in 10 speed ratios and 11 input gears, so match the configuration to the job.
The mechanical shift means the PTO is engaged with its gears stopped. Once mounted, gear lash sets the sound: a tight setting whines and loads the idler shaft and bearings, a loose one chatters, and that chatter can ease under load. A genuine Muncie part from Pro Gear and Transmission. Call us to confirm proper fit.
Features
TG8 Series PTO with an 8-bolt housing and mechanical shift
Constant mesh input gear keeps the transmission clear of engagement mistakes
Die-cast aluminum case lowers weight and noise and sheds heat
Compact size limits mounting interference
Extra large shift cover opening for easy backlash checks
Input gear meshes with a transmission gear matched to the transmission
Tech Specs
Additional Information
| PTO Torque & Horsepower Ratings | ||||||
|---|---|---|---|---|---|---|
|
Relación de velocidad
|
Intermitente HP a 1000 RPM
|
Torque Intermitente lb/pie
|
Torque Continuo lb/pie
|
Intermitente (kw) a 1000 RPM
|
Torque Intermitente (NM)
|
Torque Continuo (NM)
|
| 04 | 54 | 285 | 200 | (40) | (386) | (270) |
| 05 | 51 | 270 | 189 | (38) | (366) | (256) |
| 06 | 47 | 245 | 172 | (35) | (332) | (232) |
| 07 | 44 | 230 | 161 | (33) | (312) | (218) |
| 08 | 44 | 230 | 161 | (33) | (312) | (218) |
| 09 | 39 | 205 | 144 | (29) | (278) | (195) |
| 12H | 40 | 210 | 147 | (30) | (284) | (199) |
| 13H | 40 | 210 | 147 | (30) | (284) | (199) |
| 15H | 37 | 195 | 137 | (28) | (264) | (185) |
| 18H | 33 | 175 | 123 | (25) | (237) | (166) |
Approximate Weight: 22 lbs. (10.0 Kg.)
Parts manual and diagrams: Muncie TG Series PTO parts list with prices
