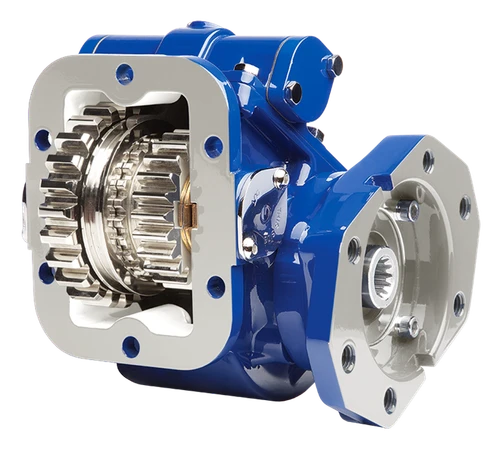

Muncie TG8S-M6507-P2KX or TG8SM6507P2KX is a TG8 Series PTO, an 8-bolt mechanical shift power take-off using Muncie's double-gear layout. Its die-cast aluminum housing keeps the unit lighter and quieter and moves heat away well, and the extra large shift cover opening gives easy access when checking backlash. The input gear stays in constant mesh with the transmission, so shifting takes place inside the PTO and the transmission is spared from engagement errors. Once installed, a whine tends to mean the gear mesh is too tight, and a chatter that fades with higher engine speed or load tends to mean it is too loose. A genuine Muncie part from Pro Gear and Transmission. Not sure of your application? Give us a call.
Features
TG8 Series 8-bolt mechanical shift PTO
Die-cast aluminum housing for a lighter, quieter unit with good heat dissipation
Constant mesh input gear isolates the transmission from engagement errors
Extra large shift cover opening for easy backlash checks
Modular design for flexibility and ease of repair
Drives auxiliary equipment such as a hydraulic pump through the PTO output
Tech Specs
Additional Information
| PTO Torque & Horsepower Ratings | ||||||
|---|---|---|---|---|---|---|
|
Relación de velocidad
|
Intermitente HP a 1000 RPM
|
Torque Intermitente lb/pie
|
Torque Continuo lb/pie
|
Intermitente (kw) a 1000 RPM
|
Torque Intermitente (NM)
|
Torque Continuo (NM)
|
| 04 | 54 | 285 | 200 | (40) | (386) | (270) |
| 05 | 51 | 270 | 189 | (38) | (366) | (256) |
| 06 | 47 | 245 | 172 | (35) | (332) | (232) |
| 07 | 44 | 230 | 161 | (33) | (312) | (218) |
| 08 | 44 | 230 | 161 | (33) | (312) | (218) |
| 09 | 39 | 205 | 144 | (29) | (278) | (195) |
| 12H | 40 | 210 | 147 | (30) | (284) | (199) |
| 13H | 40 | 210 | 147 | (30) | (284) | (199) |
| 15H | 37 | 195 | 137 | (28) | (264) | (185) |
| 18H | 33 | 175 | 123 | (25) | (237) | (166) |
Approximate Weight: 22 lbs. (10.0 Kg.)
Parts manual and diagrams: Muncie TG Series PTO parts list with prices
