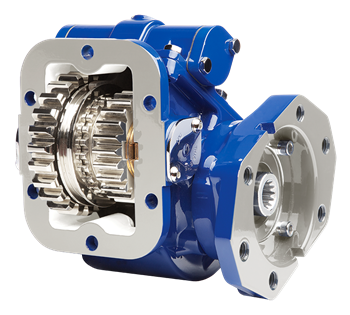

TG8S-U6806-A3VL or TG8SU6806A3VL is a Muncie TG8 Series power take-off with an 8-bolt housing and a mechanical shift. It belongs to Muncie's TG Series, the double-gear design the manufacturer calls the most widely used PTO in the industry, and the series can be configured for the speed, torque and horsepower a job calls for. Series features include a die-cast aluminum housing, a constant mesh input gear and an extra large shift cover opening that gives easy access to check backlash. A genuine Muncie part from Pro Gear and Transmission. Call us to confirm proper fit for your application.
Features
TG8 Series PTO with 8-bolt housing and mechanical shift
Die-cast aluminum housing reduces weight and noise, with superior heat dissipation (series feature)
Constant mesh input gear isolates the transmission from engagement errors (series feature)
Extra large shift cover opening allows easy access to check backlash (series feature)
Modular design provides flexibility and ease of repair (series feature)
Tech Specs
Additional Information
| PTO Torque & Horsepower Ratings | ||||||
|---|---|---|---|---|---|---|
|
Relación de velocidad
|
Intermitente HP a 1000 RPM
|
Torque Intermitente lb/pie
|
Torque Continuo lb/pie
|
Intermitente (kw) a 1000 RPM
|
Torque Intermitente (NM)
|
Torque Continuo (NM)
|
| 04 | 54 | 285 | 200 | (40) | (386) | (270) |
| 05 | 51 | 270 | 189 | (38) | (366) | (256) |
| 06 | 47 | 245 | 172 | (35) | (332) | (232) |
| 07 | 44 | 230 | 161 | (33) | (312) | (218) |
| 08 | 44 | 230 | 161 | (33) | (312) | (218) |
| 09 | 39 | 205 | 144 | (29) | (278) | (195) |
| 12H | 40 | 210 | 147 | (30) | (284) | (199) |
| 13H | 40 | 210 | 147 | (30) | (284) | (199) |
| 15H | 37 | 195 | 137 | (28) | (264) | (185) |
| 18H | 33 | 175 | 123 | (25) | (237) | (166) |
Approximate Weight: 22 lbs. (10.0 Kg.)
Parts manual and diagrams: Muncie TG Series PTO parts list with prices
