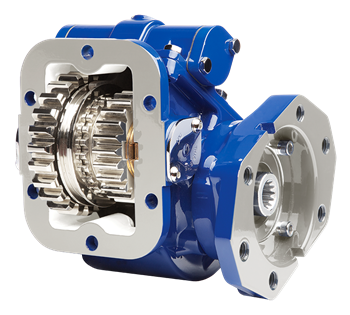

Muncie TG8S-U6812-X1BH or TG8SU6812X1BH is a genuine TG8 Series PTO with an 8-bolt housing and a mechanical shift. In general, a power take-off draws engine power through the transmission into its own gearbox, and from there it can turn auxiliary equipment such as hydraulic or vacuum pumps. A mechanically shifted unit is engaged with the input gear at rest. Muncie fits this series with a constant mesh input gear that keeps engagement mistakes from reaching the transmission, and its die-cast aluminum housing lowers weight and noise while shedding heat. Call us to confirm proper fit for your application.
Features
Muncie TG8 Series PTO with 8-bolt housing and mechanical shift
Constant mesh input gear keeps engagement mistakes from reaching the transmission
Die-cast aluminum housing cuts weight and noise and sheds heat well
Modular design provides flexibility and ease of repair
Compact size minimizes mounting interference
Gearbox output can drive hydraulic or vacuum pumps
Tech Specs
Additional Information
| PTO Torque & Horsepower Ratings | ||||||
|---|---|---|---|---|---|---|
|
Relación de velocidad
|
Intermitente HP a 1000 RPM
|
Torque Intermitente lb/pie
|
Torque Continuo lb/pie
|
Intermitente (kw) a 1000 RPM
|
Torque Intermitente (NM)
|
Torque Continuo (NM)
|
| 04 | 54 | 285 | 200 | (40) | (386) | (270) |
| 05 | 51 | 270 | 189 | (38) | (366) | (256) |
| 06 | 47 | 245 | 172 | (35) | (332) | (232) |
| 07 | 44 | 230 | 161 | (33) | (312) | (218) |
| 08 | 44 | 230 | 161 | (33) | (312) | (218) |
| 09 | 39 | 205 | 144 | (29) | (278) | (195) |
| 12H | 40 | 210 | 147 | (30) | (284) | (199) |
| 13H | 40 | 210 | 147 | (30) | (284) | (199) |
| 15H | 37 | 195 | 137 | (28) | (264) | (185) |
| 18H | 33 | 175 | 123 | (25) | (237) | (166) |
Approximate Weight: 22 lbs. (10.0 Kg.)
Parts manual and diagrams: Muncie TG Series PTO parts list with prices
