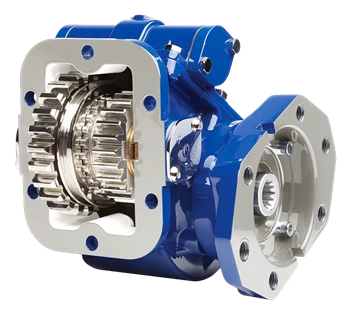

TG8S-U6818-P1KH or TG8SU6818P1KH is a genuine Muncie TG8 series PTO, an 8-bolt, mechanical shift power take-off. This kind of unit uses a double gear arrangement, so it can be sized to the speed and torque a given auxiliary job demands. The input gear stays in constant mesh with the transmission, so engagement mistakes are not passed back into the gearbox. The die-cast aluminum housing runs lighter and quieter and sheds heat well, and the extra large shift cover opening makes backlash easy to check. Call Pro Gear and Transmission to confirm proper fit for your transmission and application.
Features
Muncie TG8 series power take-off
8-bolt housing with mechanical shift
Double gear design
Constant mesh input gear isolates the transmission from engagement errors
Die-cast aluminum housing for lighter, quieter operation and heat dissipation
Extra large shift cover opening for checking backlash
Tech Specs
Additional Information
| PTO Torque & Horsepower Ratings | ||||||
|---|---|---|---|---|---|---|
|
Relación de velocidad
|
Intermitente HP a 1000 RPM
|
Torque Intermitente lb/pie
|
Torque Continuo lb/pie
|
Intermitente (kw) a 1000 RPM
|
Torque Intermitente (NM)
|
Torque Continuo (NM)
|
| 04 | 54 | 285 | 200 | (40) | (386) | (270) |
| 05 | 51 | 270 | 189 | (38) | (366) | (256) |
| 06 | 47 | 245 | 172 | (35) | (332) | (232) |
| 07 | 44 | 230 | 161 | (33) | (312) | (218) |
| 08 | 44 | 230 | 161 | (33) | (312) | (218) |
| 09 | 39 | 205 | 144 | (29) | (278) | (195) |
| 12H | 40 | 210 | 147 | (30) | (284) | (199) |
| 13H | 40 | 210 | 147 | (30) | (284) | (199) |
| 15H | 37 | 195 | 137 | (28) | (264) | (185) |
| 18H | 33 | 175 | 123 | (25) | (237) | (166) |
Approximate Weight: 22 lbs. (10.0 Kg.)
Parts manual and diagrams: Muncie TG Series PTO parts list with prices
