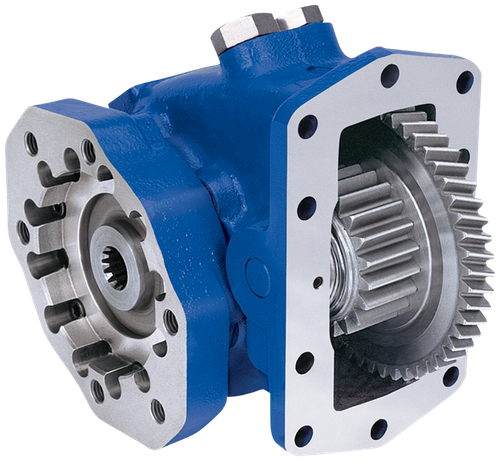

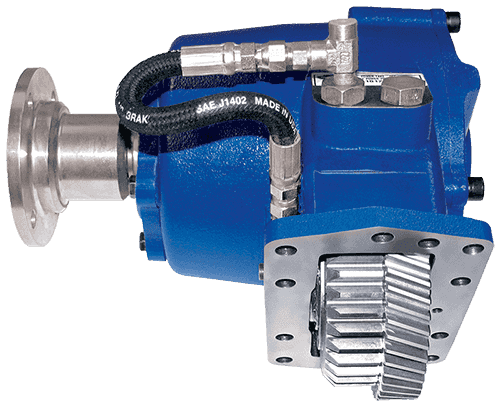

Genuine Muncie PTO P/N: CD40-A1010-M1CX or CD40A1010M1CX, we offer original, genuine parts straight from the manufacturer.
Features
Precision ground gears: High torque capacity with quiet operation
Extra large bearings & components: High torque and durability
1410 Series remote mount output shaft: For remote pump drives
S.A.E. "B" and "C" and DIN 5462 direct mount options: Fits most popular pumps requiring high power input
Rotatable direct mount flanges: Allows pump to be positioned for maximum clearance
Two assembly arrangements: Allows the PTO to be mounted shaft high or low on either side of the transmission
Standard pressue lubrication: No extra cost
Tech Specs
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
|
Speed Ratio
|
Intermittent HP@1000 RPM
|
Intermittent Torque lbs.ft.
|
Continuous Torque lbs.ft.
|
Intermittent (kw)@1000 RPM
|
Intermittent Torque (NM)
|
Continuous Torque (NM)
|
| 07 | 114 | 600 | 420 | (85) | (813) | (569) |
