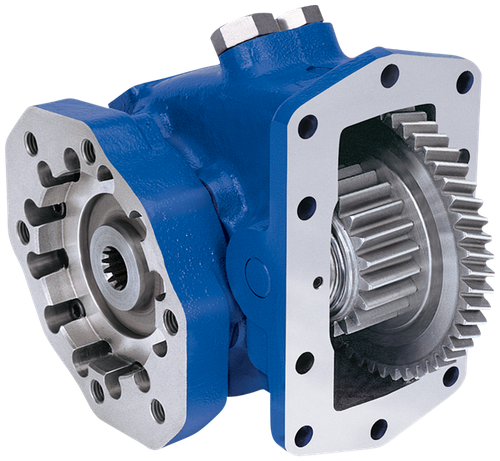

Genuine Muncie PTO P/N: CD10-A1010-M32X, this item is obsolete, use A30 Series. Call us for help identifying your correct unit.
Features
Up to 400 lbs.ft. torque capacity and 76 H.P. @1000 RPM: Power to drive high volume pumps
Three standard output shafts in both keyed and flange types: Versatility for remote pump drives
S.A.E. "A", "B", "BB", and "C"; DIN 5462 direct mount pump options: Fits most popular pumps
Multi-position direct mount flanges: Allows pump to be positioned for maximum clearance
Designed to work with Muncie's PTO Shaft Extensions on Allison 3000 and 4000 series transmissions: Clearance for large volume and variable displacement pumps
Four assembly arrangements: Allows the PTO to be mounted shaft high or low on either side of the transmission
Standard pressure lubrication: No extra cost
Tech Specs
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
|
Speed Ratio
|
Intermittent HP@1000 RPM
|
Intermittent Torque lbs.ft.
|
Continuous Torque lbs.ft.
|
Intermittent (kw)@1000 RPM
|
Intermittent Torque (NM)
|
Continuous Torque (NM)
|
| 05 | 76 | 400 | 280 | (57) | (542) | (379) |
| 06 | 73 | 385 | 270 | (54) | (522) | (365) |
| 07 | 68 | 360 | 252 | (51) | (488) | (342) |
| 08 | 64 | 336 | 235 | (48) | (456) | (319) |
| 10 | 59 | 310 | 217 | (44) | (420) | (294) |
| 12 | 50 | 260 | 182 | (37) | (352) | (246) |
| 15 | 43 | 225 | 158 | (32) | (305) |
(214) |
