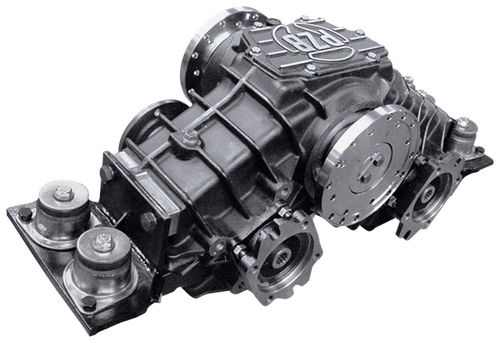

The Muncie SSH2-21XC-PEXEX (also referenced as SSH221XCPEXEX) is a split shaft power take-off from Muncie's SSH2 Series, engineered for extremely heavy-duty drive applications. The SSH2 Series delivers precision ground gearing for quiet, high-torque power transfer, with air-shift activation and individual output controls that allow each output to be engaged independently without interrupting other functions. PTO outputs span SAE "B" through SAE "D" pump mounts and accept Spicer 1410-to-1500 companion flanges. A frame mounting kit option simplifies installation using isolation-type mounts. Call us to confirm proper fit for your chassis and hydraulic configuration.
Features
SSH2 Series split shaft PTO design rated for extremely heavy-duty applications
Precision ground gearing for quiet, high-torque power delivery
Air-shift controls for straightforward activation
Individual output controls allow each output to be engaged or disengaged independently
Clutch-shift option available: outputs can be activated without stopping other functions
PTO outputs: SAE "B" through SAE "D" pump mounts; Spicer 1410-to-1500 companion flanges
Tech Specs
- Series: Muncie SSH2 Split Shaft PTO
- Part Number: SSH2-21XC-PEXEX or SSH221XCPEXEX
- Maximum Thru-Shaft Torque: Up to 21,600 lb.ft.
- Maximum PTO Output Torque: Up to 940 lb.ft.
- PTO Output Mounts: SAE "B" through SAE "D" pump mounts
- Companion Flanges: Spicer 1410 to 1500
- Shift Type: Air-shift
- Orientation: Upright or horizontal versions available
- Mounting: Frame mounting kit option (isolation-type mounts)
