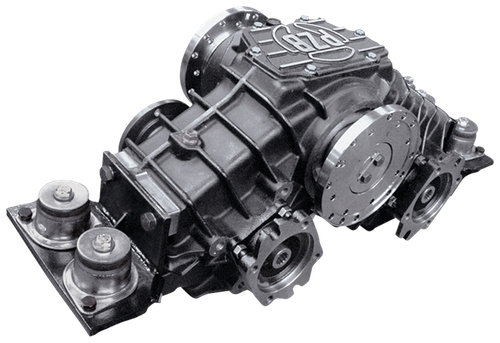

The Muncie SSH2-14X5-AEEEXX or SSH214X5AEEEXX is a split shaft power take-off built for extremely heavy-duty applications. Part of Muncie Power's SSH2 series, it features precision ground gearing for quiet, high-torque power delivery and air-shift controls for straightforward activation. The SSH2 series supports up to 21,600 lb.ft. of through-shaft torque and up to 940 lb.ft. of PTO output torque. Four output positions (2 front, 2 rear) accept SAE B through SAE D pump mounts and Spicer 1410 through 1500 companion flanges. Available in upright or horizontal versions to suit your installation. Call us to confirm proper fit for your application.
Maximum Torque (thru-shaft): Up to 21,600 lbs.ft.
Maximum PTO output torque: Up to 940 lbs.ft.
PTO Outputs (2-Front, 2-Rear): SAE "B" to "SAE "D" pump mounts Spicer 1410 to 1500 companion flanges
Features
Air-shift controls for straightforward engagement and activation
Precision ground gearing for quiet, high-torque power delivery
Four PTO outputs (2 front, 2 rear) accept SAE B through SAE D pump mounts and Spicer 1410 to 1500 companion flanges
Clutch shift option allows individual outputs to be activated without stopping other functions
Upright or horizontal mounting versions available to suit installation requirements
Optional frame mounting kit uses isolation-type mounts for easier installation
Tech Specs
- Maximum Torque (thru-shaft): Up to 21,600 lb.ft. (SSH2 series rating)
- Maximum PTO Output Torque: Up to 940 lb.ft. (SSH2 series rating)
- PTO Outputs: 4 total (2 front, 2 rear)
- Output Mount Types: SAE B through SAE D pump mounts; Spicer 1410 through 1500 companion flanges
- Shift Type: Air shift
- Mounting: Upright or horizontal versions available
- Frame Mounting Kit: Optional, isolation-type mounts
Additional Information
Weight: 234 lbs. (SSH2) 255 lbs. (SSV2)Maximum Torque (thru-shaft): Up to 21,600 lbs.ft.
Maximum PTO output torque: Up to 940 lbs.ft.
PTO Outputs (2-Front, 2-Rear): SAE "B" to "SAE "D" pump mounts Spicer 1410 to 1500 companion flanges
