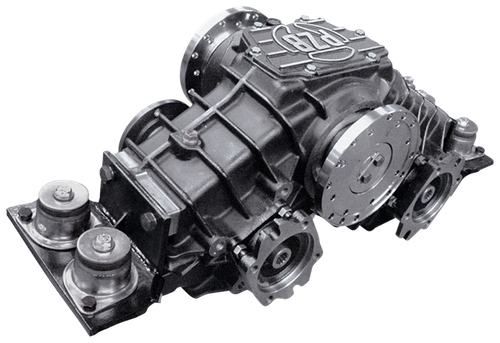

The Muncie SSH2-14X5-AKXEX (also referenced as SSH214X5AKXEX) is a split shaft power take-off engineered for extremely heavy-duty applications. It supports up to 21,600 lb.ft. of through-shaft torque and delivers up to 940 lb.ft. of PTO output torque. The unit provides four PTO outputs, two front and two rear, accepting SAE "B" through SAE "D" pump mounts and Spicer 1410 to 1500 companion flanges. Air-shift controls allow easy activation, and individual output controls let each drive be engaged independently, saving power when not all outputs are needed. Available in upright or horizontal orientations to suit your chassis installation. Call us to confirm proper fit for your application.
Features
Up to 21,600 lb.ft. maximum through-shaft torque capacity
Up to 940 lb.ft. maximum PTO output torque
Four PTO outputs (2-front, 2-rear): SAE "B" to SAE "D" pump mounts and Spicer 1410 to 1500 companion flanges
Air-shift controls for straightforward engagement
Individual output controls, each output activates independently without interrupting other drives
Available in upright or horizontal mounting orientations; frame mounting kit option with isolation-type mounts
Tech Specs
- Maximum Torque (thru-shaft): Up to 21,600 lb.ft.
- Maximum PTO Output Torque: Up to 940 lb.ft.
- PTO Outputs: 4 total (2-front, 2-rear)
- Pump Mounts: SAE "B" through SAE "D"
- Companion Flanges: Spicer 1410 to 1500 series
- Shift Type: Air shift
- Mounting Orientations: Upright or horizontal
