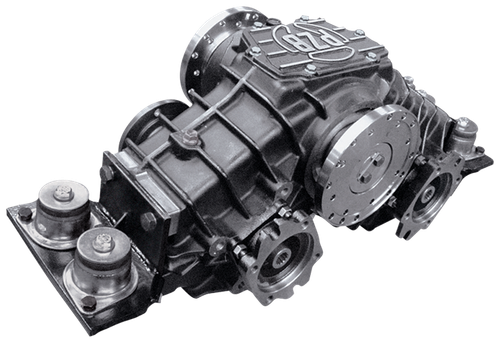

The Muncie SSH2-21XC-AXCXXX (also listed as SSH221XCAXCXXX) is a Split Shaft PTO rated up to 21,600 lb-ft maximum torque through the driveshaft and up to 940 lb-ft on the PTO outputs. The SSH2 mounts in upright or horizontal orientations and delivers power to up to four output positions, two front and two rear, using SAE "B" through SAE "D" pump mounts or Spicer 1410 to 1500 companion flanges. Air-shift controls handle activation, and each output can be individually engaged or disengaged without stopping other functions. A frame mounting kit option using isolation-type mounts simplifies installation. Call us to confirm proper fit for your chassis and hydraulic drive configuration.
Maximum Torque (thru-shaft): Up to 21,600 lbs.ft.
Maximum PTO output torque: Up to 940 lbs.ft.
PTO Outputs (2-Front, 2-Rear): SAE "B" to "SAE "D" pump mounts Spicer 1410 to 1500 companion flanges
Features
Maximum thru-shaft torque: up to 21,600 lb-ft
Maximum PTO output torque: up to 940 lb-ft
Four PTO output positions (2 front, 2 rear): SAE B through SAE D pump mounts or Spicer 1410-1500 companion flanges
Air-shift activation for each output
Clutch-shift option: individual outputs engage or disengage independently without stopping other functions
Available in upright or horizontal mounting orientation; frame mounting kit with isolation mounts available
Tech Specs
- Maximum Torque (thru-shaft): Up to 21,600 lb-ft
- Maximum PTO Output Torque: Up to 940 lb-ft
- PTO Outputs: 4 total (2 front, 2 rear)
- Pump Mount Range: SAE B to SAE D
- Companion Flange Compatibility: Spicer 1410 to 1500 series
- Shift Type: Air-shift (standard); Clutch-shift option available
- Mounting Orientations: Upright or horizontal
Additional Information
Weight: 234 lbs. (SSH2) 255 lbs. (SSV2)Maximum Torque (thru-shaft): Up to 21,600 lbs.ft.
Maximum PTO output torque: Up to 940 lbs.ft.
PTO Outputs (2-Front, 2-Rear): SAE "B" to "SAE "D" pump mounts Spicer 1410 to 1500 companion flanges
