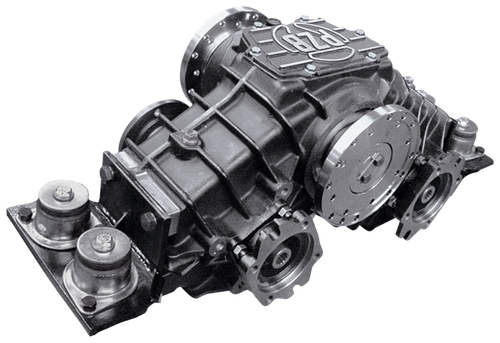

SSH2-21XC-EIIIIX Muncie SSH2 Split Shaft PTO

The Muncie SSH2-21XC-EIIIIX or SSH221XCEIIIIX is a split shaft power take-off built for extremely heavy-duty truck applications. Part of the Muncie SSH2 Series, this unit features precision ground gearing for quiet, high-torque power delivery, with air-shift controls for straightforward activation. The SSH2 Series supports up to 21,600 lb.ft. of through-shaft torque and up to 940 lb.ft. of PTO output torque. Four output positions (2-front, 2-rear) accept SAE "B" through SAE "D" pump mounts, as well as Spicer 1410 to 1500 companion flanges. Individual output controls allow each drive to be activated independently, and a frame mounting kit option simplifies installation using isolation-type mounts. Call us to confirm proper fit for your application.

Features

Air-shift controls for straightforward engagement and activation
Precision ground gearing for quiet, high-torque power delivery
Up to 21,600 lb.ft. maximum through-shaft torque (SSH2 Series rating)
Up to 940 lb.ft. maximum PTO output torque (SSH2 Series rating)
Four output positions (2-front, 2-rear): SAE "B" to SAE "D" pump mounts; Spicer 1410 to 1500 companion flanges
Individual output controls allow clutch-shift activation of each output without stopping other functions
Frame mounting kit option available with isolation-type mounts for easier installation

Tech Specs

•
• Maximum Torque (thru-shaft): Up to 21,600 lb.ft.
• Maximum PTO Output Torque: Up to 940 lb.ft.
• PTO Outputs: 4 total (2-front, 2-rear)
• Output Mounting: SAE "B" to SAE "D" pump mounts; Spicer 1410 to 1500 companion flanges
• Shift Type: Air shift
• Mounting: Frame mounting kit option available (isolation-type mounts)

Additional Information

Weight: 234 lbs. (SSH2) 255 lbs. (SSV2)
Maximum Torque (thru-shaft): Up to 21,600 lbs.ft.
Maximum PTO output torque: Up to 940 lbs.ft.
PTO Outputs (2-Front, 2-Rear): SAE "B" to "SAE "D" pump mounts Spicer 1410 to 1500 companion flanges
