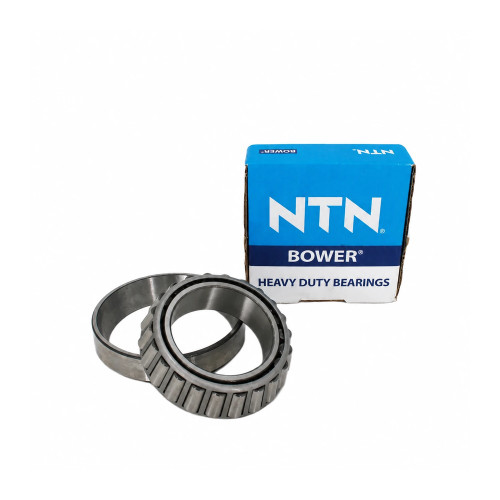

The 1779HD is an NTN Bower tapered roller bearing cone with a bore diameter of 23.812 mm and a cone width of 19.837 mm. It carries a dynamic load rating of 42.5 kN and a static load rating of 46.5 kN, and it is built to the 1700 catalog series under ABMA Class 4 (Inch) tolerance standards. This cone is sold by Pro Gear and Transmission as a genuine NTN Bower part.
Interchanges:
- Timken 1779 $52.24
Features
23.812 mm bore diameter
19.837 mm cone width
42.5 kN dynamic load rating
46.5 kN static load rating
1700 catalog series
ABMA Class 4 (Inch) tolerance class
Tech Specs
- Bore (ID): 23.812 mm
- Cone width: 19.837 mm
- Dynamic load rating: 42.5 kN
- Static load rating: 46.5 kN
- Catalog series: 1700
- Tolerance class: ABMA Class 4 (Inch)
