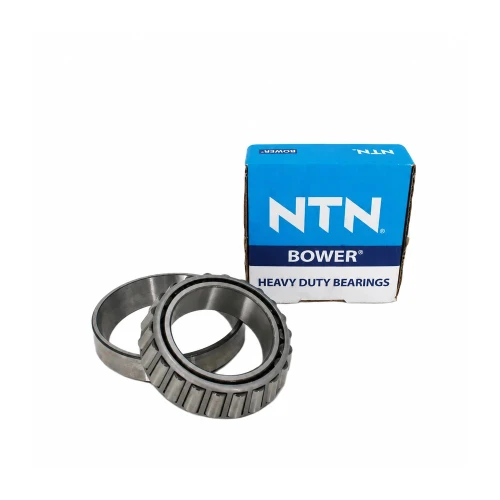

30305HD NTN Bower tapered roller bearing set fits a 25mm bore and 62mm outside diameter, with an assembled width of 18.25mm. The cone measures 17mm wide and the cup 15mm wide, part of the 30305 catalog series. It carries a dynamic load rating of 48.5 kN and a static load rating of 47.5 kN, built to ABEC-1, RBEC-1, JIS-0, and ISO-Normal tolerance class standards. Sold by Pro Gear and Transmission.
Interchanges:
- Timken 30305 $78.06
Features
25 mm bore diameter
62 mm outside diameter
18.25 mm assembled width
Cone width 17 mm, cup width 15 mm
Dynamic load rating 48.5 kN, static load rating 47.5 kN
ABEC-1, RBEC-1, JIS-0, ISO-Normal tolerance class
Tech Specs
- Bore (ID): 25 mm
- Outside Diameter (OD): 62 mm
- Assembled Width: 18.25 mm
- Cone Width: 17 mm
- Cup Width: 15 mm
- Dynamic Load Rating: 48.5 kN
- Static Load Rating: 47.5 kN
- Catalog Series: 30305
- Tolerance Class: ABEC-1, RBEC-1, JIS-0, ISO-Normal
