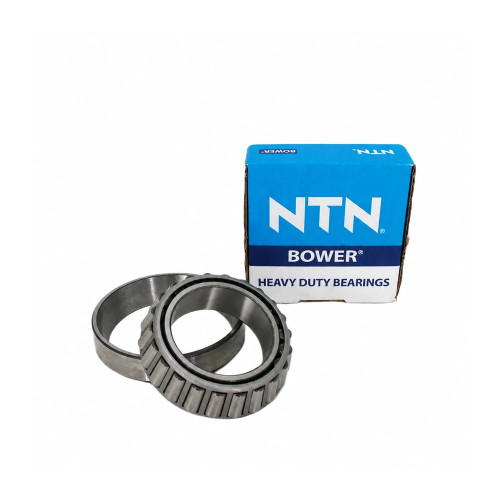

32214HD NTN Bower tapered roller bearing set fits a 70mm bore, 125mm outside diameter, with a 33.25mm assembled width. The cone measures 31mm wide and the cup 27mm wide, rated to a 166 kN dynamic load and 220 kN static load. Built to catalog series 32214 dimensions and held to ABEC-1, RBEC-1, JIS-0, ISO-Normal tolerance class. A genuine NTN Bower part from Pro Gear and Transmission.
Interchanges:
- Timken 32214 $190.38
Features
70mm bore diameter
125mm outside diameter
33.25mm assembled width
Cone width 31mm, cup width 27mm
Dynamic load rating 166 kN, static load rating 220 kN
ABEC-1, RBEC-1, JIS-0, ISO-Normal tolerance class
Tech Specs
- Bore (ID): 70 mm
- Outside Diameter (OD): 125 mm
- Assembled Width: 33.25 mm
- Cone Width: 31 mm
- Cup Width: 27 mm
- Dynamic Load Rating: 166 kN
- Static Load Rating: 220 kN
- Catalog Series: 32214
- Tolerance Class: ABEC-1, RBEC-1, JIS-0, ISO-Normal
