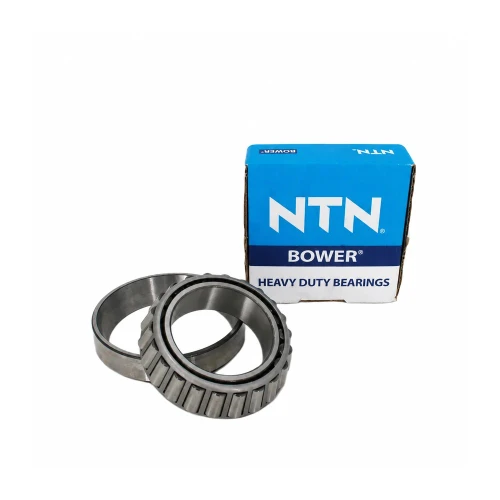

The 5584HD NTN Bower tapered roller bearing cone belongs to the 5500 catalog series. It has a 63.5 mm ID and a 43.7642 mm cone width, with a dynamic load rating of 189 kN and a static load rating of 280 kN, and it is built to ABMA Class 2 (Inch) tolerance. The cone carries the conical rollers that run against a matching cup, so the pair takes radial load and thrust load together. Dirt, water in the lubricant and poor lubrication are the usual causes of early failure, and pitted or torn running surfaces mean the cone is done. A genuine NTN Bower part from Pro Gear and Transmission.
Features
63.5 mm ID
43.7642 mm cone width
189 kN dynamic load rating, 280 kN static load rating
5500 catalog series
ABMA Class 2 (Inch) tolerance
Conical rollers carry radial and thrust load together
Tech Specs
- ID: 63.5 mm
- Cone width: 43.7642 mm
- Dynamic load rating: 189 kN
- Static load rating: 280 kN
- Catalog series: 5500
- Tolerance class: ABMA Class 2 (Inch)
