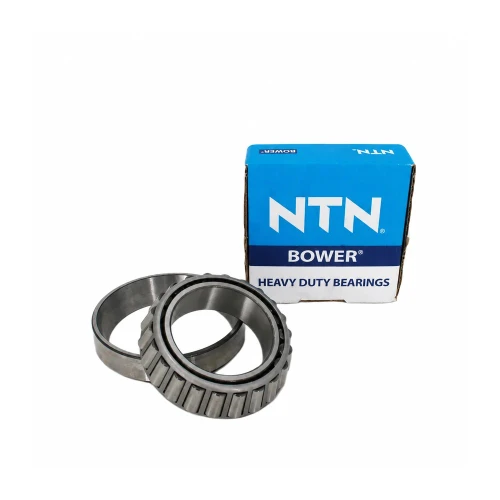

The NTN Bower 752HD is a tapered roller bearing cup built to catalog series 755 dimensions, with a 161.925 mm outside diameter and a 38.1 mm width. It meets ABMA Class 2 (Inch) tolerance. The cup is the outer ring of a tapered roller bearing: it supplies the raceway the rollers ride on and is paired with a matching cone. A cup with spalled or damaged raceway surfaces usually points back to poor lubrication, contamination or misalignment, so check those when you replace one. Bearing designation 752HD. A genuine NTN Bower part from Pro Gear and Transmission.
Interchanges:
- Timken 752 $142.94
Features
Tapered roller bearing cup
Outside diameter: 161.925 mm
Cup width: 38.1 mm
Catalog series 755, ABMA Class 2 (Inch) tolerance
Bearing designation 752HD
Tech Specs
- Outside diameter: 161.925 mm
- Cup width: 38.1 mm
- Catalog series: 755
- Tolerance class: ABMA Class 2 (Inch)
- Bearing designation: 752HD
