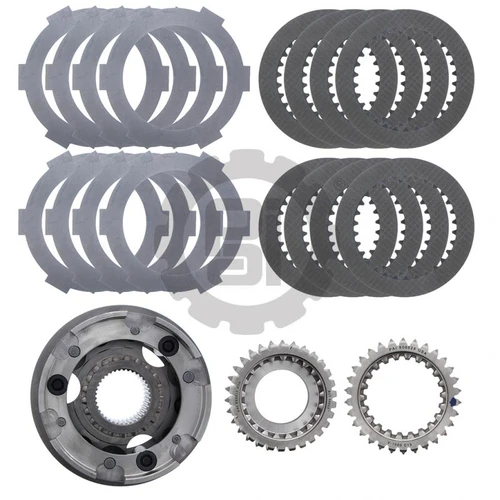

The 806805 is a Mack synchronizer upgrade kit that packages the low range hub, compound gear, synchronizer assembly and sub-assembly, two housings, three support sleeves, pins, spring sleeves, clamps, a synchronizer clutch and two disc sets of eight discs each into one box. Our parts manual lists it as the synchronizer upgrade kit in the rear case components of the Mack T2080 / T2090 / T2100, T309L / T310 and T310M transmissions. A synchronizer matches shaft and gear speed so a shift engages without clash, and a worn one starts to grind. Sold by Pro Gear and Transmission.
Features
Complete synchronizer upgrade kit, packaged as one kit and sold each
Low range hub and compound gear included
Synchronizer assembly and sub-assembly plus synchronizer clutch
Two housings, three support sleeves, pins, spring sleeves and clamps
Two synchronizer disc sets, eight discs each
Listed in the rear case components of the Mack T2080 / T2090 / T2100, T309L / T310 and T310M transmissions
Tech Specs
- Low Range Hub - 806810 / OEM 84KC410
- Compound Gear - 806831 / OEM 764KB4278
- Synchronizer Assembly - GSA-2497 / OEM 320KB464
- Synchronizer Sub-Assembly - GSA-2497-100
- Housing (x2) - GSH-2515 / OEM 53KC486E
- Synchronizer Support Sleeve (x3) - GSL-2524 / OEM 301KC243C
- Screw (x3) - GSC-2201 / OEM 6AX1606X
- Clamp (x3) - GCL-2516 / OEM 298KB213
- Clamp (x3) - GCL-2517 / OEM 298KB214
- Synchronizer Pin (x3) - GPN-2508 / OEM 301KC33
- Synchronizer Pin (x3) - GPN-2509 / OEM 301KC34
- Spring Sleeve (x3) - GSP-2506 / OEM 107KD247
- Spring Sleeve (x3) - GPN-2507 / OEM 301KC35
- Synchronizer Clutch - GGB-2499 / OEM 21636360
- Synchronizer Disc (x8) - GSD-2525 / OEM 495KB361
- Synchronizer Disc (x8) - GSD-2526 / OEM 495KB367
- Sell Pack: 1 Each
Additional Information
UPC 193807230760.Used in these Mack models
