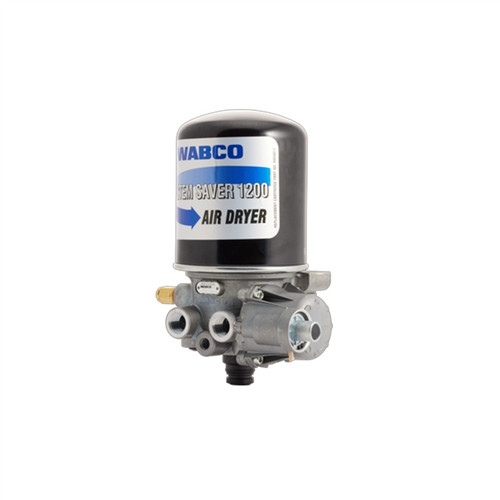

The Wabco Air Dryer System E, part number 4324130060, is the USA-spec desiccant-cartridge air dryer built to OE specification. It operates at a maximum pressure of 130.5 psi, with a cut-out pressure range of 114.58 to 130.53 psi and a backflow pressure of 10.2 psi. The unit ships as the USA version with an 11-bar safety valve and runs on 12V power for the integrated heater (Wabco heater 894 260 046 2). The heating circuit connects via a 280 Metri-Pack connector. Port threads include a 1/2"-14 NPTF supply port and a 1/4"-18 NPTF delivery port. Rated for operation from -40 degrees C to +65 degrees C. Available from Pro Gear and Transmission. Call us to confirm proper fit for your application.
Features
Wabco OE specification desiccant cartridge air dryer
USA version with 11-bar safety valve
12V integrated heater - Wabco heater reference 894 260 046 2
Heating connection: 280 Metri-Pack NR.1202 0599
Supply port: 1/2"-14 NPTF; delivery port: 1/4"-18 NPTF
Operating temperature range: -40 degrees C to +65 degrees C
Tech Specs
- Backflow pressure: 10.2 psi
- Calculated volume: 8.9213 dm3
- Cartridge type: Desiccant Cartridge
- USA version with 11-bar safety valve
- Cut-out pressure: 114.58 to 130.53 psi
- Maximum operating pressure: 130.5 psi
- Opening pressure: 130.53 psi
- Voltage: 12V
- Heater reference: 894 260 046 2
- Heating connection: 280 Metri-Pack NR.1202 0599
- Port thread 2: 1/2" - 14 NPTF
- Port thread 3: JED-463-0
- Port thread 4/2: 1/4" - 18 NPTF
- Exhaust: JED-463-0
- Temperature range: -40 degrees C to +65 degrees C
- Dimensions: 213 mm x 283 mm x 148 mm
- Technical specification: OE specification
