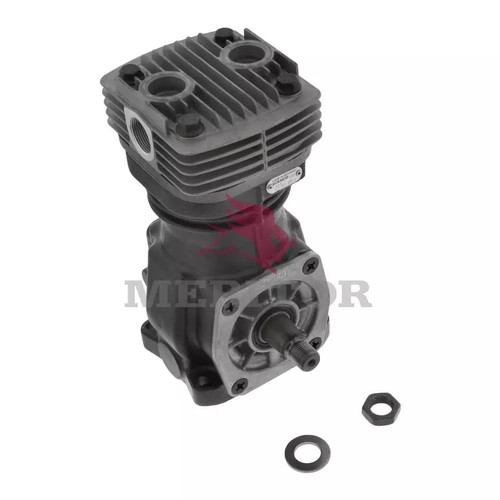

The Wabco 4111410010 (also listed as 411 141 001 0) is a single-cylinder, air-cooled air compressor built to OE specification. It delivers a 159 cm³ swept volume with a 2.95 in piston diameter and 1.42 in piston stroke, rated to a maximum operating pressure of 145.0 psi at up to 3,000 RPM. Lubrication is supplied from the engine. The unit uses foot mounting and carries an M18 x 1.5 crankshaft thread. Multiple port threads accommodate system plumbing: M26 x 1.5 on ports 0 and 2, M10 x 1 on port 8.1, and M22 x 1.5 on port 8.2. Overall dimensions are 231 x 202 x 327 mm. Compatible pulley 4111411304 is sold separately. Call us to confirm proper fit for your application.
Features
Single-cylinder, air-cooled design; engine-supplied lubrication
Swept volume: 159 cm³; piston diameter 2.95 in, piston stroke 1.42 in
Maximum operating pressure: 145.0 psi; rated operating speed up to 3,000 RPM
Foot mounting with M18 x 1.5 crankshaft thread
Port threads: M26 x 1.5 (ports 0 and 2), M10 x 1 (port 8.1), M22 x 1.5 (port 8.2)
Compatible with pulley 4111411304 (sold separately); OE specification
Tech Specs
- Brand: Wabco
- Type: Single Cylinder, Air-Cooled
- Technical Specification: OE Specification
- Swept Volume: 159 cm³
- Piston Diameter: 2.95 in
- Piston Stroke: 1.42 in
- Max. Operating Pressure: 145.0 psi
- Operating Speed: 3,000 RPM
- Lubrication: Supplied from engine
- Cooling: Air
- Mounting: Foot mounting
- Crankshaft Thread: M18 x 1.5
- Port Thread 0: M26 x 1.5
- Port Thread 2: M26 x 1.5
- Port Thread 8.1: M10 x 1
- Port Thread 8.2: M22 x 1.5
- Overall Size: 231 x 202 x 327 mm
- Compatible Pulley (sold separately): 4111411304
