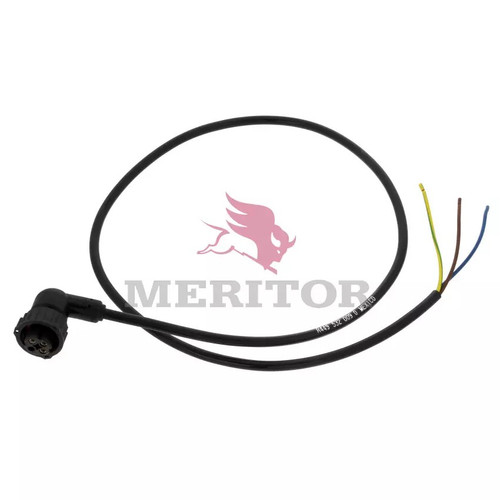

The 4495320260 Wabco ABS modulator valve cable is 2.6 m (8.53 ft) long, with a 90 degree bayonet connector on one end and an open end on the other. It connects the ABS modulator valves to the ABS chassis. The bayonet socket follows DIN 72585-B1-3.1-Sn/K1, and the open end carries three strands with push-on contacts, 3 x 1.5 mm².
A genuine Wabco part from Pro Gear and Transmission. Call us to confirm proper fit for your ABS setup.
Features
Length 2.6 m (8.53 ft)
90 degree bayonet connector, DIN 72585-B1-3.1-Sn/K1 bayonet socket
Open end with three strands and push-on contacts, 3 x 1.5 mm²
Connects the ABS modulator valves to the ABS chassis
Supersedes part number(s) S449-532-026-0
Tech Specs
- Brand WABCO
- Part type Premium original quality
- Product category Device
- Cable end (left side of diagram)Bayonet socket DIN 72585-B1-3.1-Sn/K1 4-pin
- Cable end (right side of diagram)Open 3-Strand with push-on contacts 3 x 1.5 mm²
- Calculated Volume (dm³)3.401
- Length 2.6 m
- Technical specification OE specification
- Size (mm x mm x mm)216 x 67 x 235
