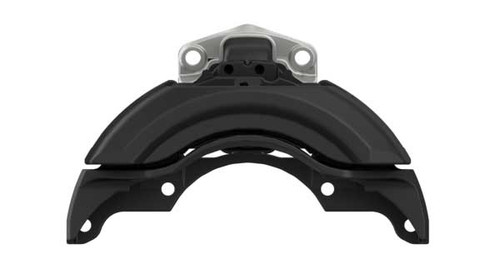

The Wabco 6402250810 (also listed as 640-225-081-0 or M6402250810X) is a genuine OEM PAN 22-1 air disc brake caliper assembly for heavy-duty truck applications. This right-hand caliper mounts via a 6x M20 bolt pattern to a 16.93 in. diameter rotor. Disc thickness is 1.77 in. and piston stroke measures 1.04 in. Sold without pads, it is built to OE specification under the PAN 22-1 platform. This caliper is also cross-referenced as Wabco 640225037. Call us to confirm proper fit for your axle and brake configuration.
A refundable core charge of $840.00 applies to this item and will be collected at checkout. The core charge is refunded upon receipt of your returned core, subject to its condition; customer is responsible for return shipping. Call us at (877) 776-4600 for details.
Features
PAN 22-1 air disc brake caliper, right-side mounting
6x M20 bolt pattern
16.93 in. rotor diameter; 1.77 in. disc thickness
1.04 in. piston stroke
Sold without brake pads
Built to OE specification; cross-references Wabco 640225037 and M6402250810X
Tech Specs
- Type: PAN 22-1 Air Disc Brake Caliper
- Side: Right
- Mounting: 6x M20
- Rotor Diameter: 16.93 in.
- Disc Thickness: 1.77 in.
- Piston Stroke: 1.04 in.
- Version: Without Pads
- Specification: OE
- Cross-References: 640-225-081-0, 640225037, M6402250810X
