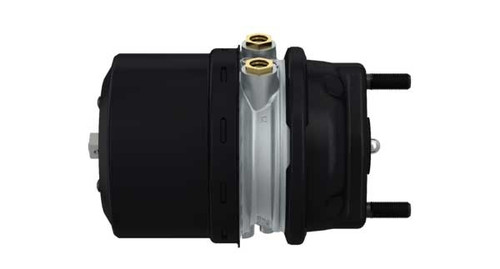

Genuine Wabco Chamber P/N: 9253940010 or 925-394-001-0, for help on parts, availability or questions, please call and we would love to help.
Tech Specs
- Brand WABCO
- Part type Premium original quality
- Product category Device
- Bolt lengths 1.50 in
- Bolt threads 5/8'' - 11 UNC
- Calculated Volume (dm³)33.8
- Clevis pin 0.51 in
- Distance between bolts 4.75 in
- Max. operating pressure 145.0 psi
- Port angle 135°
- Port thread 113/8" - 18 NPTF
- Port thread 123/8" - 18 NPTF
- Push-rod length 3.55 in
- Release pressure 71.07 psi
- Stroke 2.99 in
- Technical specification OE specification
- Temperature range -40°C to +80°C
- Total lenght 14.88 in
- Type 30/36
- Type of operation Cam
- Version Without boot
- Size (mm x mm x mm)500 x 260 x 260
