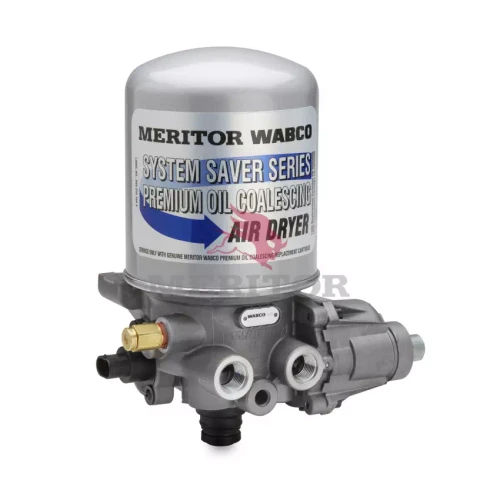

The Wabco SS1200 Air Dryer, part number RWABK118, is a genuine OE-specification unit built for heavy-duty air systems. It operates on 12V and includes an integrated turbo cut-off valve. The desiccant cartridge design handles system pressures from a cut-out of 130.53 psi up to a maximum operating pressure of 149.4 psi, with an opening pressure of 185.65 psi. The exhaust uses a snap-on contour fitting, and the heating connection is Delphi Metri-Pack 280. Port threads include 1/2"-14 NPTF, 1/2"-14 NPTF, and 1/4"-18 NPTF configurations, plus a JED-463-0 port. The unit measures 335 x 242 x 183 mm and operates across a temperature range of -40 degrees C to +80 degrees C. Sold by Pro Gear and Transmission. Call us to confirm proper fit for your application.
Features
Genuine OE-specification Wabco SS1200 Air Dryer, part number RWABK118
12V operation with Delphi Metri-Pack 280 heating connection
Turbo cut-off valve installed
Desiccant cartridge type with snap-on contour exhaust
Cut-out pressure 130.53 psi, max operating pressure 149.4 psi, opening pressure 185.65 psi
Temperature range -40 degrees C to +80 degrees C; dimensions 335 x 242 x 183 mm
Tech Specs
- Brand: Wabco
- Technical Specification: OE Specification
- Voltage: 12V
- Cartridge Type: Desiccant Cartridge
- Turbo Cut-Off Valve: Installed
- Cut-Out Pressure: 130.53 psi
- Max. Operating Pressure: 149.4 psi
- Opening Pressure: 185.65 psi
- Back Flow: 0.7 bar
- Exhaust: Snap-On Contour
- Heating Connection: Delphi Metri-Pack 280
- Port Thread 1: 1/2"-14 NPTF
- Port Thread 2: 1/2"-14 NPTF
- Port Thread 3: JED-463-0
- Port Thread 4: 1/4"-18 NPTF
- Port Thread 4/23: 1/4"-18 NPTF
- Temperature Range: -40 degrees C to +80 degrees C
- Calculated Volume: 14.836 dm3
- Dimensions (mm): 335 x 242 x 183
