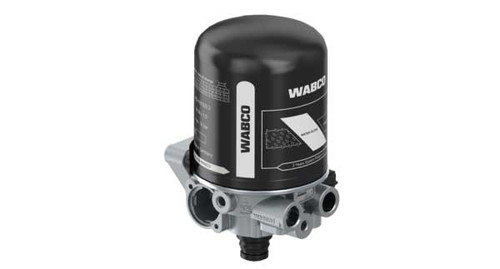

RWABK119 is a genuine Wabco SS1200 24V air dryer with a turbo cutoff valve, a standard desiccant cartridge and a pressure relief valve. It runs on 24 volts with a 100-watt heater. The supply and delivery ports are 0.50 in.-14 NPTF, and the control and purge tank ports are 0.25 in.-18 NPTF. An air dryer strips moisture and oil vapor out of compressed air before it reaches the brake system, and it purges itself on a repeating cycle. Water at the tank drains or frozen lines in cold weather point to a saturated desiccant. Sold by Pro Gear and Transmission.
Features
SS1200 air dryer, 24 V, with turbo cutoff valve (TCV)
100-watt heater and pressure relief valve
Standard desiccant cartridge, uses 4324209232 or 4329012482
Supply port 1 and delivery port 21: 0.50 in.-14 NPTF; control port 4 and purge tank port 22: 0.25 in.-18 NPTF
Supersedes part number(s) SRWABK119
Tech Specs
- Model: SS1200
- Voltage: 24 V
- Heater: 100-watt
- Cartridge type: Standard desiccant cartridge
- Turbo cutoff valve (TCV): Yes
- Pressure relief valve: Yes
- Supply port 1: 0.50 in.-14 NPTF
- Delivery port 21: 0.50 in.-14 NPTF
- Control port 4: 0.25 in.-18 NPTF
- Purge tank port 22: 0.25 in.-18 NPTF
- Maximum operating pressure: 149.4 psi
- Cut-out pressure: 130.53 psi
- Opening pressure: 185.65 psi
- Back flow: 0.7 bar
- Temperature range: -40°C to +80°C
- Size: 335 x 242 x 183 mm
