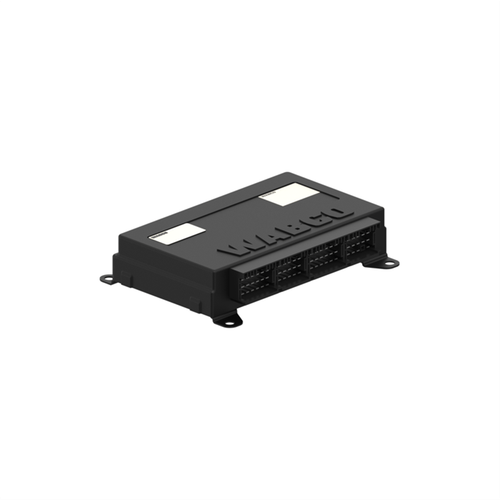

4008651690 is a genuine Wabco PABS ECU E4C for tractor anti-lock braking. It reads the wheel speed signals and commands the modulator valves so the wheels do not lock up under braking. The listing shows a 12 V unit for a 4S/4M system with ATC and PLC, rated for -40°C to +75°C with IP 30 protection (IEC 529), and a unit size of 184 x 57 x 216 mm. Call us to confirm proper fit for your application.
A refundable core charge of $420.00 applies to this item and will be collected at checkout. The core charge is refunded upon receipt of your returned core, subject to its condition; customer is responsible for return shipping. Call us at (877) 776-4600 for details.
Features
PABS ECU E4C, 12 V, 4S/4M system
Tractor unit with ATC, PLC, XBR, HSA and RSC options
Temperature range -40°C to +75°C, protection class IP 30 (IEC 529)
Size 184 x 57 x 216 mm, mounting 4x Ø 7.5 mm, hole spacing 6.42x4.82 in
Supersedes part number S400-865-169-0
Tech Specs
- Brand WABCO
- Part type Premium original quality
- Product category Device
- Calculated Volume (dm³)2.265
- Distance between holes 6.42x4.82 in
- Mounting 4x Ø 7.5 mm
- Protection class IP 30 (IEC 529)
- System4S/4M
- Technical specification OE specification
- Temperature range-40°C to +75°C
- Type PABS ECU E4C
- Voltage 12 V
- Size (mm x mm x mm)184 x 57 x 216
