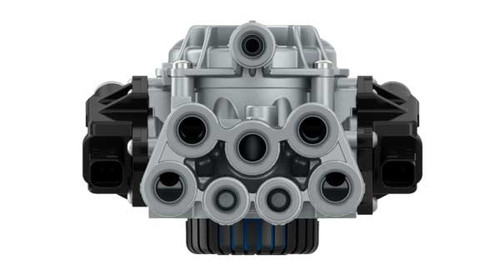

Wabco 9730110110 release valve assembly for ABS, a pressure reduction version with a 1:1 regulating ratio. It has an opening pressure of 7.25 psi, a maximum operating pressure of 145.04 psi and a temperature range of -40°C to +80°C. The valve mounts with 4x M8 fasteners and measures 98 x 103 x 109 mm. Supersedes part number(s) S973-011-011-0. This is a genuine Wabco part from Pro Gear and Transmission. Call us to confirm proper fit for your application.
Features
Pressure reduction version, 1:1 regulating ratio
Opening pressure 7.25 psi
Maximum operating pressure 145.04 psi
Temperature range -40°C to +80°C
Mounting 4x M8
Supersedes part number(s) S973-011-011-0
Tech Specs
- Brand: WABCO
- Product category: Device
- Version: Pressure reduction
- Regulating ratio: 1:1
- Opening pressure: 7.25 psi
- Max. operating pressure: 145.04 psi
- Predominance: 1.45 psi
- Temperature range: -40°C to +80°C
- Mounting: 4x M8
- Exhaust: Snap on contour JED-463
- Port thread: M22 x 1.5
- Port thread: 2x M22 x 1.5
- Port thread: JED-463
- Port thread: M16 x 1.5
- Calculated volume: 1.1002 dm³
- Size (mm x mm x mm): 98 x 103 x 109
- Technical specification: OE specification
