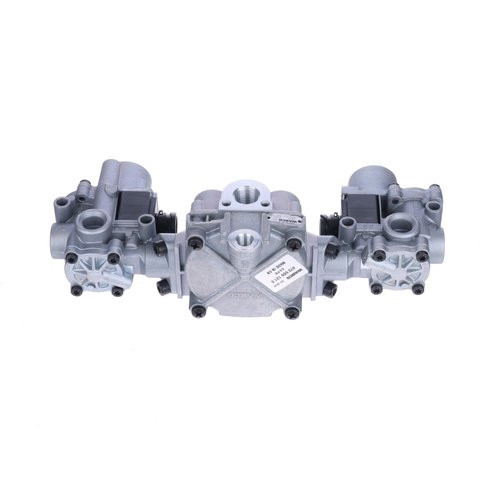

Genuine Wabco Valve Abs Rr Xchange P/N: 9760001077, for help on parts, availability or questions, call us, we will gladly help.
Tech Specs
- Brand WABCO
- Part type Premium original quality
- Product category Device
- Calculated Volume (dm³)10.083
- Electrical connection TYCO HDSCS 3x2.8 Coding A+B, TYCO HDSCS 2x1.5 Coding A
- Max. operating pressure 159.5 psi
- Port thread 11/2 - 14 Dry Seal NPTF
- Port thread 211/2 - 14 Dry Seal NPTF
- Port thread 221/2 - 14 Dry Seal NPTF
- Port thread 231/2 - 14 Dry Seal NPTF
- Port thread 241/2 - 14 Dry Seal NPTF
- Port thread 253/8 - 18 Dry Seal NPTF
- Port thread 26Closed
- Port thread 31Silencer
- Port thread 43/8 - 18 Dry Seal NPTF
- Protection class IP 6K6K, IP 6K9K
- Rated current2220 mA
- Response pressure 0.38 bar
- System4S/4M, 6S/4M
- Technical specification OE specification
- Temperature range-40°C to +80°C
- Voltage 12 V
- Size (mm x mm x mm)238 x 238 x 178
