Meritor Stud P/N: E4965-L or E4965L

E4965-L Meritor Left Hand Wheel Stud, Grade 8 - 10-Pack

Meritor

Stud

Listing Price: $53.82
Sale Price: $29.60

This item qualifies for FREE shipping on orders over $295 and under 70 lbs

(No reviews yet) Write a Review
Product Code:
MERE4965L
UPC:
729374201140
Condition:
New
Availability:
Usually Ships in 3 to 5 Business Days
Adding to cart… The item has been added

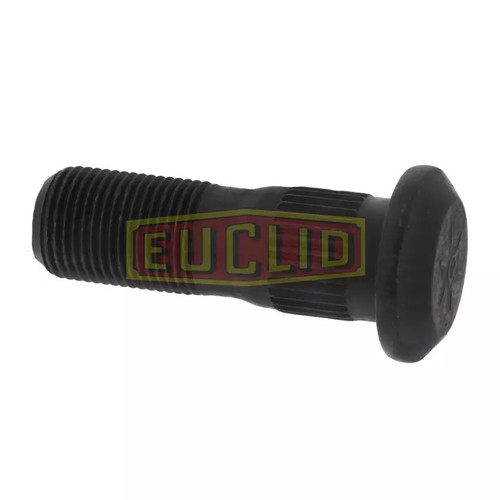

The Meritor E4965-L or E4965L is a left-hand wheel stud sold in a 10-pack, marketed under the Euclid brand and cataloged as an active wheel-end hardware part. Thread specification is 3/4"-16 UNF-2A with 16 threads per inch and a 0.75 in. thread diameter; thread length measures 0.97 in. Body diameter runs 0.786 in./0.780 in. (stepped body) with a 1.00 in. body length. The serrated shank features a 0.820 in. serration diameter over a 0.50 in. serration length. The round head measures 1.28 in. in diameter and 0.31 in. thick. Overall length from under the head is 2-3/8 in. Fits TK, TKL, RL, TL, RN, and RQ axle applications, including some Eaton applications. Call us to confirm proper fit for your specific axle or drum combination.

This unit is sold in packs of 10.

Features

Left-hand (LH) thread direction, 3/4"-16 UNF-2A, 16 threads per inch
Grade 8 strength, round head style, 1.28 in. head diameter, 0.31 in. head thickness
Stepped body: 0.786 in./0.780 in. body diameter, 1.00 in. body length
Serrated shank: 0.820 in. serration diameter, 0.50 in. serration length
2-3/8 in. length from under head; 0.97 in. thread length
Fits TK, TKL, RL, TL, RN, RQ axles including select Eaton applications; sold in a 10-pack

Tech Specs

  • Thread: 3/4"-16 UNF-2A
  • Thread Direction: Left Hand (LH)
  • Threads per Inch: 16
  • Thread Diameter: 0.75 in.
  • Thread Length: 0.97 in.
  • Body Diameter: 0.786 in./0.780 in. (Stepped)
  • Body Length: 1.00 in.
  • Serration: Serrated
  • Serration Diameter: 0.820 in.
  • Serration Length: 0.50 in.
  • Length from Under Head: 2-3/8 in.
  • Head Style: Round
  • Head Diameter: 1.28 in.
  • Head Thickness: 0.31 in.
  • Grade: 8
  • Type: Headed
  • Unit Pack: 10
  • Application: TK, TKL, RL, TL, RN, RQ axles (including select Eaton); for some cast drums on TK/TKL, see E-4968-R/L
  • OEM Cross-Reference: Meritor 20-X-687, 20-X-1805; Budd 59192; Kelsey K-36708
  • Interchange: Automann 2016035L, Dorman 610051, Spicer 501122L, Dayton Parts Batco 131102L, Navistar 22423V/878211R1, Haldex 67242, Napa 6411044, World Truck 1541702L, Trailmobile 384965L/5033A28, Sirco Brake 192, Flagg W65, BWP M75, NWRA X1081, New Life/Fleetcraft NL5303
!
