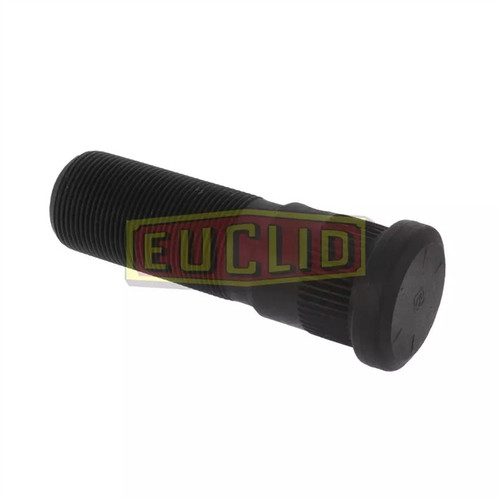

E5982-R Meritor Grade 8 Front Wheel Stud, Aluminum Disc Wheels, 10-Pack

Meritor E5982-R or E5982R is a Grade 8 headed wheel stud designed for front axle aluminum disc wheel applications on Kenworth, Peterbilt, and Paccar vehicles. This is a right-hand, serrated stud with a 1-1/8"-16 UN-2A thread. Thread diameter is 1.125 in., thread length is 2.25 in., and overall length from under the head is 3-3/4 in. The round head measures 1.50 in. in diameter and 0.36 in. thick. The serration diameter is 1.252 in. with a 0.56 in. serration length for secure press-in retention. Sold in a 10-pack. Pro Gear and Transmission carries this genuine Euclid by Meritor part. Call us to confirm proper fit for your axle and wheel configuration.

This unit is sold in packs of 10.

Features

Grade 8 headed stud rated for front wheel end hardware applications on aluminum disc wheels
Right-hand thread, 1-1/8"-16 UN-2A, 16 threads per inch
Thread diameter 1.125 in., thread length 2.25 in., overall length from under head 3-3/4 in.
Serrated shank: serration diameter 1.252 in., serration length 0.56 in.
Round head: 1.50 in. diameter, 0.36 in. thick

Tech Specs

• Grade: 8
• Type: Headed
• Head Style: Round
• Head Diameter: 1.50 in.
• Head Thickness: 0.36 in.
• Thread: 1-1/8"-16 UN-2A
• Thread Direction: Right Hand (RH)
• Threads per Inch: 16
• Thread Diameter: 1.125 in.
• Thread Length: 2.25 in.
• Body Diameter: 1.219 in.
• Body Length: 1.22 in.
• Length from Under Head: 3-3/4 in.
• Serration: Serrated
• Serration Diameter: 1.252 in.
• Serration Length: 0.56 in.
• Application: Front Wheel Stud for aluminum disc wheels
• Unit Pack: 10

Additional Information

New Life/Fleetcraft: NL5567
Spicer: 501097R
Trailmobile: 385982R
World Truck: 1541301R
