The Meritor 20X2040 is a genuine OEM right-hand wheel end stud, sold here as a 2-pack. It carries an M22 x 1.5-6g metric thread with a 22.0 mm thread diameter and 61.11 mm thread length. The overall length from under the head measures 140.1 mm, and the body diameter is 24.76 mm with a 53.1 mm body length. The round head measures 35.1 mm in diameter and 6.73 mm thick. A serrated shank section - 11.2 mm long with a 25.951 mm serration diameter - locks the stud securely into the hub. Grade 8 construction. Call us to confirm proper fit for your axle application.
Interchanges:
- 823520X2040
- ATI20X2040
- TDA20X2040
This unit is sold in packs of 2.
Features
Right-hand thread direction, M22 x 1.5-6g metric thread specification
Grade 8 construction
Thread length 61.11 mm, thread diameter 22.0 mm
Overall length from under head: 140.1 mm; body length 53.1 mm
Serrated shank - 11.2 mm serration length, 25.951 mm serration diameter - for secure hub retention

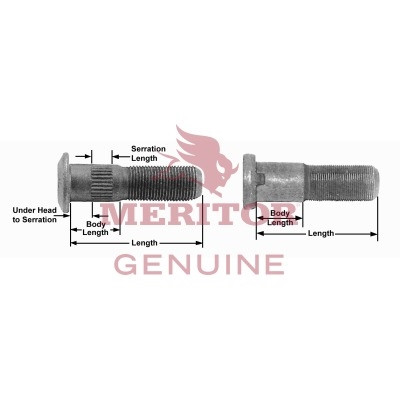

Tech Specs
- Thread Size: M22 x 1.5-6g (metric)
- Thread Direction: Right Hand (RH)
- Thread Length: 61.11 mm
- Thread Diameter: 22.0 mm
- Body Diameter: 24.76 mm
- Body Length: 53.1 mm
- Length from Under Head: 140.1 mm
- Head Style: Round
- Head Diameter: 35.1 mm
- Head Thickness: 6.73 mm
- Serration: Serrated shank
- Serration Length: 11.2 mm
- Serration Diameter: 25.951 mm
- Grade: 8
- VMRS Code: 018-003-009
- Pack Quantity: 2
