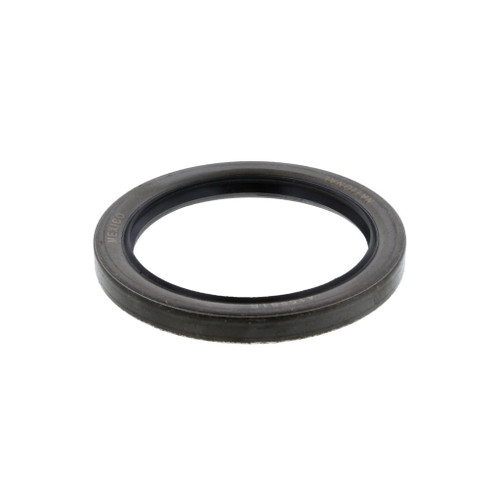

This crankshaft seal is a PAI-made replacement sized 3.5 in. free ID x 4.506 in. OD x 0.468 in. width, fitting Mack TRL-107, TRL-1076/1078, TRDXL-107, TC-150, CRDPC 92/112, CRDP 95, and CRD 93 units, along with Fuller RT/RTO 12513 transmissions. It seats at the crankshaft bore to hold engine oil in as the shaft rotates, keeping it from working past the block opening.
Features
3.5 in. free ID x 4.506 in. OD x 0.468 in. width (88.9 mm x 114.45 mm x 11.88 mm)
Fits Mack TRL-107, TRL-1076/1078, TRDXL-107, TC-150, CRDPC 92/112, CRDP 95, CRD 93
Compatible with Fuller RT/RTO 12513 transmissions
Cross-referenced to Fuller 7512, Dana 62599, Navistar 478864C1 and 321267R92
Also referenced as 88AX259P2, 88AX292, 88AX348P2, 88AX362P2, 88AX440P2/P4
Tech Specs
- Free ID: 3.5 in. (88.9 mm)
- OD: 4.506 in. (114.45 mm)
- Width: 0.468 in. (11.88 mm)
- Primary application: Mack TRL-107/TRL-1076/1078/TRDXL-107/TC-150/CRDPC 92/112/CRDP 95/CRD 93, Fuller RT/RTO 12513
