Mack CRDP 95 / CRD 96 Differential Parts Manual
Service Kits
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 205SP75A | Kit, Bearing & Seal | Includes (1) 46AX450, (2) 46AX491, (1) 27KH116, (1) 62AX80, (1) 62AX165, (2) 62AX329, (1) 62AX396, (1) 62AX412, (1) 64AX38, (1) 64AX241, (1) 64AX240, (1) 64AX212, (1) 64AX165, (1) H414201 | $1,671.81 | Add to Cart | |
| 1 | Bearing and Seal Kit | Kit, Bearing & Seal (same As 205SP75A W/o Case Set Bearings, 62AX329) | $1,463.22 | Add to Cart |
Crdp 95
Item 12Item 13Item 47Item 14Item 48Item 50Item 66Item 49Item 16Item 17Item 18Item 19Item 20Item 21Item 15Item 22Item 10Item 9Item 45Item 46Item 11Item 43Item 40Item 41Item 42Item 44Item 8Item 6Item 2Item 7Item 3Item 4Item 5Item 2Item 1Item 51Item 52Item 62Item 30Item 53Item 29Item 54Item 28Item 27Item 26Item 61Item 55Item 57Item 56Item 25Item 24Item 23Item 59Item 60Item 39Item 38Item 35Item 36Item 63Item 62Item 34Item 32Item 31Item 33Item 64Item 64Item 65Item 37Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 21AX814 | Nut, Shift Rail | Interchanges with Mack 21AX475 | $65.50 | Add to Cart | |
| 2 | 31KD152 | Washer, Shift Piston | Sold as a 5-pack | $43.31 | Add to Cart | |
| 3 | 56AX283 | O-ring | Sold as a 5-pack | $15.55 | Add to Cart | |
| 4 | 531KB11 | Felt, Shift Piston | Sold as a 5-pack | $15.35 | Add to Cart | |
| 5 | 336KC139 | Piston | Interchanges with Mack 336KC213 | $145.33 | Add to Cart | |
| 6 | 75KH14 | Spacer | $31.05 | Add to Cart | ||
| 7 | 96KH11 | Spring | $9.97 | Add to Cart | ||
| 8 | 94KH15 | Rail, Air Shift | — | Call for availability | ||
| 9 | 7AX264X | Screw, Lock (dog Point) | Interchanges with Mack 7AX152, Mack 7AX255. Sold as a 10-pack | $61.55 | Add to Cart | |
| 10 | 98KH24 | Fork, Shift | — | Call for availability | ||
| 11 | 21AX776PL | Nut, Yoke | $99.87 | Add to Cart | ||
| 12 | 8235-92NYS4017 | Yoke, Drive | Wing Type, 9C Series. Interchanges with Mack 38MU3230P1 | $835.13 | Add to Cart | |
| 12 | 38MU3386 | Yoke, Drive (1760 Series) | — | Call for availability | ||
| 13 | 88AX440P4 | Seal, Yoke | Interchanges with National 415146N, Navistar 478864C1 | $34.19 | Add to Cart | |
| 13 | 1458-34889 | Seal, Yoke | Interchanges with CHI 34889 | $34.19 | Add to Cart | |
| 14 | 46AX491 | Bearing, Power Divider | Interchanges with BCA D7213J | $116.26 | Add to Cart | |
| 15 | 97KH27 | Clutch | $769.51 | Add to Cart | ||
| 16 | 33KN47 | Cage, Power Divider | Early Model. Interchanges with Mack 33KN374 | $2,941.62 | Add to Cart | |
| 16 | 33KN385 | Cage, Power Divider (w/ Lockout) | — | Call for availability | ||
| 17 | 30KN13 | Wedge Set (24 Pcs) | Interchanges with Mack 30KN21 | $771.52 | Add to Cart | |
| 18 | 35KN112 | Ring, Inner | $88.98 | Add to Cart | ||
| 19 | 35KN110 | Ring, Outer | $306.70 | Add to Cart | ||
| 20 | 32KN233 | Cam, Inner Power Divider | Interchanges with Mack 32KN222 | $629.87 | Add to Cart | |
| 21 | 267KC122 | Nut | $116.26 | Add to Cart | ||
| 22 | 91KH22 | Bearing, Cage Pilot | — | Call for availability | ||
| 23 | 31KN325 | Cam, Power Divider (w/o Lockout) | $1,507.03 | Add to Cart | ||
| 23 | 31KN334 | Cam, Power Divider (w/ Lockout) | $1,262.78 | Add to Cart | ||
| 24 | 62AX165 | Cone | Interchanges with Timken 661, Navistar 835632R91 | $117.35 | Add to Cart | |
| 25 | 64AX165 | Cup | Interchanges with Timken 653, Navistar 85237R1 | $52.17 | Add to Cart | |
| 26 | 52KH173P251 | Spacer | NOTE: Spacer thicknesses vary in increments .002in between .251in through .339in, when ordering specify desired thickness | — | Call for availability | |
| 27 | 52KH159P2 | Spacer | Ratios: 7.58, 6.73 & 11.38 | — | Call for availability | |
| 27 | 52KH159P3 | Spacer | Ratios: 4.60, 5.22 & 5.88 | — | Call for availability | |
| 28 | 64AX38 | Cup | Interchanges with Timken 742, Navistar 18241H1 | $63.76 | Add to Cart | |
| 29 | 62AX80 | Cone | Interchanges with Timken 740 | $82.52 | Add to Cart | |
| 30 | Gear | Click on following links for more info:. Gear Ratio Application Chart | — | Call for availability | ||
| 31 | 53KH226P2 | Retainer Assembly | $657.87 | Add to Cart | ||
| 32 | 90KH413 | Shaft, Interaxle | Includes (1) 96KH18. Interchanges with Mack 90KH256A | $801.37 | Add to Cart | |
| 33 | 96KH18 | Spring | Interchanges with Mack 96KH12 | $77.80 | Add to Cart | |
| 34 | 46AX450 | Bearing | Interchanges with BCA 1212, Navistar 287048R91 | $96.36 | Add to Cart | |
| 35 | 88AX303P2 | Seal | Interchanges with National 485500 | $38.28 | Add to Cart | |
| 36 | 75KH16 | Ring, Wear | Interchanges with National K179 | $15.11 | Add to Cart | |
| 37 | 27KH116 | Kit, Seal | Includes (1) 88AX303P2, (1) 75KH16. Interchanges with National 5578 | $50.13 | Add to Cart | |
| 38 | 8235-17N42441 | Yoke, Drive (2-1/4in X 10 Spline) | 3-1/8in Dia. Hub. Interchanges with Dana 6-4-2441, Mack 38MU366P1 | — | Call for availability | |
| 39 | 21AX658 | Nut | $20.44 | Add to Cart | ||
| 40 | 6AX1317X | Screw (7/16in-14 X 1-1/4in) | Interchanges with Mack 4AX4. Sold as a 5-pack | $28.38 | Add to Cart | |
| 41 | 36AX4 | Washer | Interchanges with Mack 36AX42 | $1.18 | Add to Cart | |
| 42 | 476KB33B | Cylinder, Air Housing | Spring Return. Interchanges with Mack 476KB33AP2 | — | Call for availability | |
| 42 | 476KB33AP1 | Cylinder, Air Housing | Double Action | $176.17 | Add to Cart | |
| 43 | 49AX244 | Plug | Interchanges with Mack 63AX4, Navistar 444619. Sold as a 10-pack | $23.70 | Add to Cart | |
| 44 | 629KB132 | Gasket | Sold as a 10-pack | $26.40 | Add to Cart | |
| 45 | 4AX44 | Screw | — | Call for availability | ||
| 46 | 36AX5 | Washer, Lock | Interchanges with Navistar 1662463C1 | $2.49 | Add to Cart | |
| 47 | 49KH337 | $105.02 | Add to Cart | |||
| 48 | 56AX353 | O-ring | Interchanges with National 623026. Sold as a 10-pack | $32.30 | Add to Cart | |
| 49 | 56AX341 | O-ring | Sold as a 5-pack | $29.42 | Add to Cart | |
| 50 | 39KN44P2 | Housing, Lockout | — | Call for availability | ||
| 51 | 50KH110 | Gasket | Sold as a 5-pack | $13.70 | Add to Cart | |
| 52 | 95KH11 | $5.16 | Add to Cart | |||
| 53 | 6AX1304X | Screw (3/8in-16 X 5/8in) | Interchanges with Navistar 56105R1 | $141.50 | Add to Cart | |
| 54 | 36AX3 | Washer, Lock | Interchanges with Navistar 38R | $1.33 | Add to Cart | |
| 55 | 36KN26P1 | Housing, Pinion (ratios: 6.72) | 7.58,8.27,9.10,10.11,11.38 | — | Call for availability | |
| 55 | 36KN26P2 | Housing, Pinion | Ratios: 4.60, 5.22 & 5.88 | — | Call for availability | |
| 56 | 49AX73 | Plug, Magnetic | Sold as a 5-pack | $28.51 | Add to Cart | |
| 57 | 39AX21 | Washer | Sold as a 10-pack | $33.80 | Add to Cart | |
| 58 | 49AX145 | Plug | — | Call for availability | ||
| 59 | 6AX282 | Screw | — | Call for availability | ||
| 60 | 36AX7X | Washer | Interchanges with Navistar 103325 | $1.16 | Add to Cart | |
| 61 | 51KH34P20 | Shim (.020in Thk) | Sold as a 5-pack | $57.50 | Add to Cart | |
| 61 | 51KH34P22 | Shim (.022in Thk) | Sold as a 5-pack | $57.50 | Add to Cart | |
| 61 | 51KH34P25 | Shim (.025in Thk) | Sold as a 5-pack | $90.92 | Add to Cart | |
| 61 | 51KH34P31 | Shim (.031in Thk) | Sold as a 5-pack | $90.92 | Add to Cart | |
| 62 | 50KH221P1 | Gasket (.015in Thk) | Sold as a 5-pack | $16.55 | Add to Cart | |
| 62 | 50KH221P2 | Gasket (.031in Thk) | Sold as a 5-pack | $15.25 | Add to Cart | |
| 63 | 49KH248A | $156.70 | Add to Cart | |||
| 64 | 36AX5 | Washer, Lock | Interchanges with Navistar 1662463C1 | $2.49 | Add to Cart | |
| 65 | 6AX750 | Screw | — | Call for availability | ||
| 66 | 50KH247 | Gasket, Front Seal Retainer | New design | — | Call for availability |
Crdpc 95
Item 31Item 39Item 13Item 5Item 6Item 8Item 9Item 7Item 6Item 42Item 40Item 5Item 4Item 1Item 2Item 3Item 8Item 9Item 10Item 12Item 34Item 35Item 36Item 37Item 33Item 32Item 11Item 14Item 25Item 24Item 23Item 21Item 22Item 43Item 43Item 30Item 41Item 20Item 19Item 38Item 18Item 17Item 16Item 15Item 14Item 29Item 26Item 27Item 28Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 29AX5 | Pin, Cotter | Interchanges with Mack 63SZ15. Sold as a 50-pack | $111.50 | Add to Cart | |
| 2 | 31AX59 | Pin, Lock | Sold as a 2-pack | $10.91 | Add to Cart | |
| 3 | 64AX240 | Cup | Interchanges with Timken 753A | $225.21 | Add to Cart | |
| 4 | 43KH233 | Nut, Adjusting | $97.93 | Add to Cart | ||
| 5 | 62AX329 | Cone | Interchanges with Timken 766 | $109.96 | Add to Cart | |
| 6 | 30KH3366A | Casing | Interchanges with Mack 30KH3260A | $2,000.64 | Add to Cart | |
| 7 | Gear, Bull | Click on following links for more info:. Gear Ratio Application Chart | — | Call for availability | ||
| 8 | 38KH217 | Washer, Side Gear Thrust | Sold as a 2-pack | $63.03 | Add to Cart | |
| 9 | 34KH228C | Gear, Side | $309.28 | Add to Cart | ||
| 10 | 32KH340 | Spider (current) | $243.14 | Add to Cart | ||
| 10 | 32KH230A | Spider | Interchanges with Mack 32KH230AP1 | $205.10 | Add to Cart | |
| 11 | 37KH137 | Washer, Spider Gear Thrust | Sold as a 4-pack | $67.32 | Add to Cart | |
| 12 | 33KH264A | Gear, Spider | $161.57 | Add to Cart | ||
| 13 | 64AX241 | Cup (lh) | Interchanges with Timken 752B | $159.13 | Add to Cart | |
| 14 | 6AX1361X | Screw (5/8in-11 X 1-1/2in) | Interchanges with Mack 6AX876. Sold as a 6-pack | $29.86 | Add to Cart | |
| 15 | 297KB123B | Clamp | Interchanges with Mack 297KB110A | $26.45 | Add to Cart | |
| 16 | 62AX412 | Cone (rh) | Interchanges with Timken H414235, Navistar 972451R91 | $133.14 | Add to Cart | |
| 17 | 64AX235 | Cup (rh) | Interchanges with Timken H414210, Navistar 972463R1 | $33.56 | Add to Cart | |
| 18 | 53KH150AP2 | Retainer, Assembly | Ratios: 4.60, 5.22 & 5.88 | — | Call for availability | |
| 19 | 51KH232P20 | Shim (.020in Thk) | Sold as a 5-pack | $74.17 | Add to Cart | |
| 19 | 51KH232P22 | Shim (.022in Thk) | Sold as a 5-pack | $74.17 | Add to Cart | |
| 19 | 51KH232P25 | Shim (.025in Thk) | Sold as a 5-pack | $74.17 | Add to Cart | |
| 19 | 51KH232P31 | Shim (.031in Thk) | Sold as a 5-pack | $88.52 | Add to Cart | |
| 20 | 52KH164P362 | Spacer | NOTE: Spacer thicknesses vary in increments of .002in between .362in through .472in, when ordering specify desired thickness | — | Call for availability | |
| 21 | Pinion, Helical | Click on following links for more info:. Gear Ratio Application Chart | — | Call for availability | ||
| 22 | 151KC110B | Key | Sold as a 2-pack | $19.40 | Add to Cart | |
| 23 | 64AX212 | Cup (lh) | Interchanges with Timken 6535W | $162.67 | Add to Cart | |
| 24 | 62AX396 | Cone (lh) | Interchanges with Timken 6580, Navistar 968384R91 | $149.54 | Add to Cart | |
| 25 | 297KB121B | Clamp | Interchanges with Mack 297KB112 | $102.05 | Add to Cart | |
| 26 | 6AX756 | Screw | — | Call for availability | ||
| 27 | 36AX5 | Washer | Interchanges with Navistar 1662463C1 | $2.49 | Add to Cart | |
| 28 | 57KH228A | $206.75 | Add to Cart | |||
| 29 | 50KH218A | Gasket | Sold as a 5-pack | $16.80 | Add to Cart | |
| 30 | 541KB29 | Breather | Interchanges with Mack 541KB16. Sold as a 5-pack | $62.87 | Add to Cart | |
| 31 | 4AX320 | Screw (7/8in-9 X 4-1/2in) | Interchanges with Mack 6AX837. Sold as a 5-pack | $31.35 | Add to Cart | |
| 32 | 50KH38 | Gasket | Sold as a 5-pack | $24.39 | Add to Cart | |
| 33 | 84KH35A | $240.93 | Add to Cart | |||
| 34 | 6AX272 | Screw | — | Call for availability | ||
| 35 | 37AX6 | Washer | Sold as a 16-pack | $38.56 | Add to Cart | |
| 36 | 49AX145 | Plug | — | Call for availability | ||
| 37 | 39AX21 | Washer | Sold as a 10-pack | $33.80 | Add to Cart | |
| 38 | 31AX57 | Pin, Lock | Sold as a 5-pack | $22.66 | Add to Cart | |
| 39 | 3AX1739X | Screw, Bull Gear Mounting | 9/16in-18 x 3in. Interchanges with Mack 72KH119. Sold as a 6-pack | $44.75 | Add to Cart | |
| 40 | 21AX855 | Nut, Bull Gear Mounting | Interchanges with Mack 21AX687. Sold as a 10-pack | $32.80 | Add to Cart | |
| 41 | 63AX83 | Plug | Interchanges with Mack 63AX1. Sold as a 10-pack | $28.50 | Add to Cart | |
| 42 | 711GC1100P3 | Washer | Sold as a 6-pack | $21.00 | Add to Cart | |
| 43 | 56AX383 | O-ring | Sold as a 5-pack | $81.26 | Add to Cart |
Gear Ratio Application Chart
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 24KH1846BP6 | Set, Ring & Pinion (forward) | $1,524.42 | Add to Cart | |||
| 24KH1846BP6 | Set, Ring & Pinion (forward) | $1,524.42 | Add to Cart | |||
| 24KH1846BP6 | Set, Ring & Pinion (forward) | $1,524.42 | Add to Cart | |||
| 24KH1846B | Set, Ring & Pinion (forward) | $1,856.99 | Add to Cart | |||
| 24KH1846B | Set, Ring & Pinion (forward) | $1,856.99 | Add to Cart | |||
| 24KH1846BP2 | Set, Ring & Pinion (forward) | $2,760.25 | Add to Cart | |||
| 24KH1847AP6 | Set, Ring & Pinion (rear) | $2,300.69 | Add to Cart | |||
| 24KH1847AP6 | Set, Ring & Pinion (rear) | $2,300.69 | Add to Cart | |||
| 24KH1847AP6 | Set, Ring & Pinion (rear) | $2,300.69 | Add to Cart | |||
| 24KH1847B | Set, Ring & Pinion (rear) | $1,817.64 | Add to Cart | |||
| 24KH1847B | Set, Ring & Pinion (rear) | $1,817.64 | Add to Cart | |||
| 24KH1847BP2 | Set, Ring & Pinion (rear) | $1,811.37 | Add to Cart | |||
| 56KH450 | Gear, Helical Pinion | — | Call for availability | |||
| 56KH448 | Gear, Helical Pinion | $1,738.32 | Add to Cart | |||
| 56KH446 | Gear, Helical Pinion | $1,066.74 | Add to Cart | |||
| 56KH447 | Gear, Helical Pinion | $1,163.68 | Add to Cart | |||
| 56KH447 | Gear, Helical Pinion | $1,163.68 | Add to Cart | |||
| 56KH447 | Gear, Helical Pinion | $1,163.68 | Add to Cart | |||
| 56KH447 | Gear, Helical Pinion | $1,163.68 | Add to Cart | |||
| 61KH450 | Gear, Bull | — | Call for availability | |||
| 61KH448 | Gear, Bull | $2,726.79 | Add to Cart | |||
| 61KH449 | Gear, Bull | $2,099.20 | Add to Cart | |||
| 61KH448 | Gear, Bull | $2,726.79 | Add to Cart | |||
| 61KH449 | Gear, Bull | $2,099.20 | Add to Cart | |||
| 61KH449 | Gear, Bull | $2,099.20 | Add to Cart | |||
| 61KH449 | Gear, Bull | $2,099.20 | Add to Cart | |||
| 61KH449 | Gear, Bull | $2,099.20 | Add to Cart | |||
| 61KH449 | Gear, Bull | $2,099.20 | Add to Cart |
Service Kits (2)
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 205SP76A | Kit, Bearing & Seal | Includes (1) 64AX240, (1) 62AX192, (1) 62AX358, (1) 64AX212, (1) 62AX396, (1) 62AX412, (1) 64AX29, (1) 64AX104, (2) 62AX329, (1) 64AX241, (1) 27KH116 | $1,479.11 | Add to Cart | |
| 1 | Bearing and Seal Kit | Kit, Bearing & Seal (same As 205SP76A) | w/o Case Set Bearings, 62AX329 | $1,221.68 | Add to Cart |

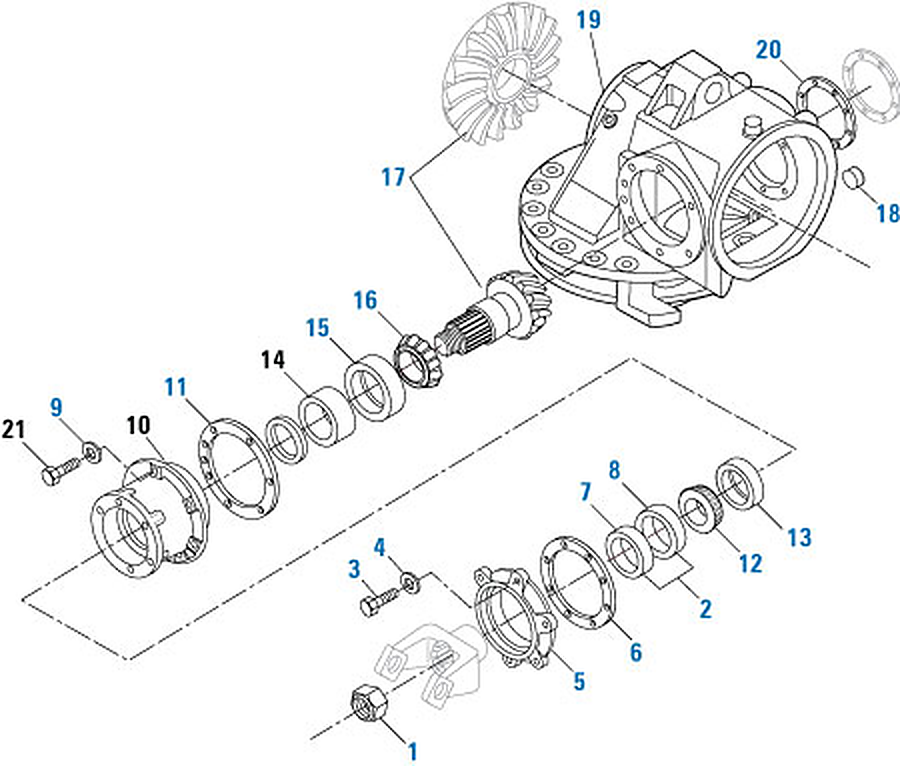

Crd 96
Item 40Item 13Item 12Item 5Item 6Item 7Item 8Item 36Item 10Item 11Item 9Item 27Item 8Item 7Item 6Item 42Item 41Item 5Item 2Item 2Item 1Item 4Item 37Item 36Item 35Item 34Item 33Item 32Item 29Item 28Item 26Item 43Item 39Item 38Item 31Item 30Item 24Item 25Item 25Item 22Item 23Item 21Item 14Item 15Item 16Item 18Item 18Item 17Item 19Item 20Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 29AX5 | Pin, Cotter | Interchanges with Mack 63SZ15. Sold as a 50-pack | $111.50 | Add to Cart | |
| 2 | 31AX59 | Pin, Adjusting Nut Lock | Sold as a 2-pack | $10.91 | Add to Cart | |
| 3 | 43KH233 | Nut, Bearing Adjustment | $97.93 | Add to Cart | ||
| 4 | 64AX240 | Cup (rh) | Interchanges with Timken 753A | $225.21 | Add to Cart | |
| 5 | 62AX329 | Cone | Interchanges with Timken 766 | $109.96 | Add to Cart | |
| 6 | 30KH3366A | Casing | Interchanges with Mack 30KH3260A | $2,000.64 | Add to Cart | |
| 7 | 38KH217 | Washer, Side Gear Thrust | Sold as a 2-pack | $63.03 | Add to Cart | |
| 8 | 34KH228C | Gear, Side | $309.28 | Add to Cart | ||
| 9 | 25101049 | Spider, Current | $243.14 | Add to Cart | ||
| 9 | 32KH230A | Spider | Interchanges with Mack 32KH230AP1 | $205.10 | Add to Cart | |
| 10 | 37KH137 | Washer, Spider Gear Thrust | Sold as a 4-pack | $67.32 | Add to Cart | |
| 11 | 33KH264A | Gear, Spider | $161.57 | Add to Cart | ||
| 12 | 64AX241 | Cup (lh) | Interchanges with Timken 752B | $159.13 | Add to Cart | |
| 13 | 4AX320 | Screw (7/8in-9 X 4-1/2in) | Interchanges with Mack 6AX837. Sold as a 5-pack | $31.35 | Add to Cart | |
| 14 | 6AX756 | Screw | — | Call for availability | ||
| 15 | 36AX5 | Washer, Lock | Interchanges with Navistar 1662463C1 | $2.49 | Add to Cart | |
| 16 | 57KH228A | $206.75 | Add to Cart | |||
| 17 | 50KH218A | Gasket | Sold as a 5-pack | $16.80 | Add to Cart | |
| 18 | 6AX1361X | Screw (5/8in-11 X 1-1/2in) | Interchanges with Mack 6AX876. Sold as a 6-pack | $29.86 | Add to Cart | |
| 19 | 297KB123B | Clamp | Interchanges with Mack 297KB110A | $26.45 | Add to Cart | |
| 20 | 62AX412 | Cone (rh) | Interchanges with Timken H414235, Navistar 972451R91 | $133.14 | Add to Cart | |
| 21 | 64AX235 | Cup (rh) | Interchanges with Timken H414210, Navistar 972463R1 | $33.56 | Add to Cart | |
| 22 | 31AX57 | Pin, Lock | Sold as a 5-pack | $22.66 | Add to Cart | |
| 23 | 53KH160AP2 | Retainer, Assembly | Ratios: 4.60, 5.22 & 5.88 | — | Call for availability | |
| 24 | 52KH164P362 | Spacer | NOTE: Spacer thicknesses vary in increments of .002in between .362in through .472in, when specify desired thickness | — | Call for availability | |
| 25 | 51KH232P20 | Shim (.020in Thk) | Sold as a 5-pack | $74.17 | Add to Cart | |
| 25 | 51KH232P22 | Shim (.022in Thk) | Sold as a 5-pack | $74.17 | Add to Cart | |
| 25 | 51KH232P25 | Shim (.025in Thk) | Sold as a 5-pack | $74.17 | Add to Cart | |
| 25 | 51KH232P31 | Shim (.031in Thk) | Sold as a 5-pack | $88.52 | Add to Cart | |
| 26 | Pinion, Helical | Click on following links for more info:. Gear Ratio Application Chart | — | Call for availability | ||
| 27 | Gear, Bull | Click on following links for more info:. Gear Ratio Application Chart | — | Call for availability | ||
| 28 | 64AX212 | Cup (lh) | Interchanges with Timken 6535W | $162.67 | Add to Cart | |
| 29 | 62AX396 | Cone (lh) | Interchanges with Timken 6580, Navistar 968384R91 | $149.54 | Add to Cart | |
| 30 | 63AX83 | Plug | Interchanges with Mack 63AX1. Sold as a 10-pack | $28.50 | Add to Cart | |
| 31 | 151KC110B | Key | Sold as a 2-pack | $19.40 | Add to Cart | |
| 32 | 297KB121B | Clamp | Interchanges with Mack 297KB112 | $102.05 | Add to Cart | |
| 33 | 6AX1361X | Screw (5/8in-11 X 1-1/2in) | Interchanges with Mack 6AX876. Sold as a 6-pack | $29.86 | Add to Cart | |
| 34 | 50KH38 | Gasket | Sold as a 5-pack | $24.39 | Add to Cart | |
| 35 | 84KH35A | $240.93 | Add to Cart | |||
| 36 | 37AX6 | Washer | Sold as a 16-pack | $38.56 | Add to Cart | |
| 37 | 6AX272 | Screw | — | Call for availability | ||
| 38 | 39AX21 | Washer | Sold as a 10-pack | $33.80 | Add to Cart | |
| 39 | 49AX145 | Plug | — | Call for availability | ||
| 40 | 3AX1739X | Screw, Bull Gear Mounting | 9/16in-18 x 3in. Interchanges with Mack 72KH119. Sold as a 6-pack | $44.75 | Add to Cart | |
| 41 | 21AX855 | Nut, Bull Gear Mounting | Interchanges with Mack 21AX687. Sold as a 10-pack | $32.80 | Add to Cart | |
| 42 | 711GC1100P3 | Washer | Sold as a 6-pack | $21.00 | Add to Cart | |
| 43 | 56AX383 | O-ring | Sold as a 5-pack | $81.26 | Add to Cart |
Crd 96 (2)
Item 19Item 20Item 17Item 16Item 15Item 14Item 11Item 10Item 9Item 21Item 3Item 4Item 7Item 8Item 1Item 5Item 6Item 2Item 12Item 13Item 18Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 21AX658 | Nut | $20.44 | Add to Cart | ||
| 2 | 27KH116 | Kit, Seal | Includes (1) 88AX303P2, (1) 75KH16 | $50.13 | Add to Cart | |
| 3 | 6AX1317X | Screw (7/16in-14 X 1-1/4in) | Interchanges with Mack 4AX4. Sold as a 5-pack | $28.38 | Add to Cart | |
| 4 | 36AX4 | Washer | Interchanges with Mack 36AX42 | $1.18 | Add to Cart | |
| 5 | 49KH249A | $154.28 | Add to Cart | |||
| 6 | 50KH233 | Gasket | Sold as a 5-pack | $19.60 | Add to Cart | |
| 7 | 88AX303P2 | Seal | Interchanges with National 455500 | $38.28 | Add to Cart | |
| 8 | 75KH16 | Ring, Wear | Interchanges with National K179 | $15.11 | Add to Cart | |
| 9 | 36AX7X | Washer | Interchanges with Navistar 103325 | $1.16 | Add to Cart | |
| 10 | 48KH19P1 | Housing, Pinion, Assembly | Includes (1) 64AX104, (1) 64AX29 | — | Call for availability | |
| 11 | 51KH34P20 | Shim (.020in Thk) | Sold as a 5-pack | $57.50 | Add to Cart | |
| 11 | 51KH34P22 | Shim (.022in Thk) | Sold as a 5-pack | $57.50 | Add to Cart | |
| 11 | 51KH34P25 | Shim (.025in Thk) | Sold as a 5-pack | $90.92 | Add to Cart | |
| 11 | 51KH34P31 | Shim (.031in Thk) | Sold as a 5-pack | $90.92 | Add to Cart | |
| 12 | 62AX192 | Cone | Interchanges with Timken 65225, Navistar 61950R91 | $106.13 | Add to Cart | |
| 13 | 64AX104 | Cup | Interchanges with Timken 65500, Navistar 74745R1 | $37.04 | Add to Cart | |
| 14 | 52KH1113P583 | Spacer | NOTE: Spacer thicknesses vary in increments of .002in between .538in through .684in, when ordering specify desired thickness | — | Call for availability | |
| 15 | 64AX29 | Cup | Interchanges with Timken 6420, Navistar 98241H1 | $67.47 | Add to Cart | |
| 16 | 62AX358 | Cone | Interchanges with Timken 6466, Navistar 896946R91 | $139.49 | Add to Cart | |
| 17 | Set, Gear | Click on following links for more info:. Gear Ratio Application Chart | — | Call for availability | ||
| 18 | 63AX83 | Plug | Interchanges with Mack 63AX1. Sold as a 10-pack | $28.50 | Add to Cart | |
| 19 | 541KB23 | Breather | Interchanges with Navistar 110891H | $7.72 | Add to Cart | |
| 20 | 50KH221P2 | Gasket (.031in Thk) | Sold as a 5-pack | $15.25 | Add to Cart | |
| 21 | 6AX282 | Screw | — | Call for availability |
No parts match that search — try the part number with no dashes.
This is the illustrated parts breakdown for the Mack CRDP 95 / CRD 96 Differential — every part in these diagrams, matched to our live inventory. We stock 188 of the 227 parts above; click any part number to view it, or add it straight to your cart. Click a number on any diagram to jump to that part.
More Mack parts manuals: Mack Transmission Parts Manuals · Mack Differential Parts Manuals
