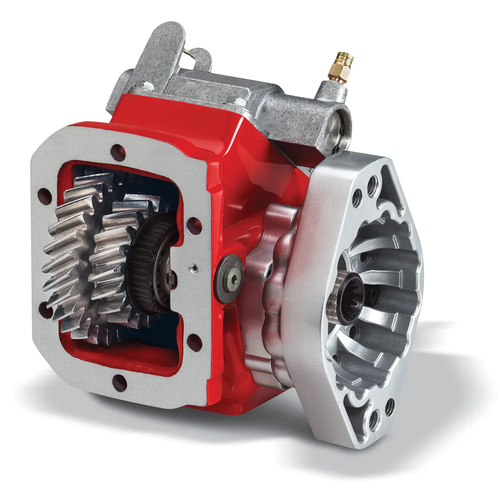

The Chelsea 442 Series Power Take-Off, part number 442XLESX-W3XK or 442XLESXW3XK, is a 6-bolt, air-shift PTO built around a cast iron housing with tapered cone bearings on the output shaft. The gear ratio is 0.391:1, the output is a 1-1/4" round standard shaft, and the mounting configuration is standard mount with metric studs. Lubrication is splash-style with no pressure lube circuit required. The 442 Series targets light-to-medium duty vocational work including tow trucks, dump trucks, service trucks, and aerial units. The output flange is rotatable for improved clearance in tight installations, and the output shaft is greaseable for extended service intervals. Call us to confirm proper fit for your transmission application.
Features
Chelsea 442 Series, 6-bolt mounting, standard mount with metric studs
Air shift actuation
0.391:1 gear ratio
1-1/4" round standard output shaft
Cast iron housing with tapered cone bearings
Rotatable output flange; greaseable output shaft for extended service life
Tech Specs
- Product Series: 442
- Gear Ratio: 0.391:1
- Shift Type: Air Shift
- Mounting Option: Standard Mount with Metric Studs (6-Bolt)
- Output Option: 1-1/4" Round Standard Shaft
- Lubricant: No Pressure Lube
- Input Gear Designator: AH
- Assembly: 3
