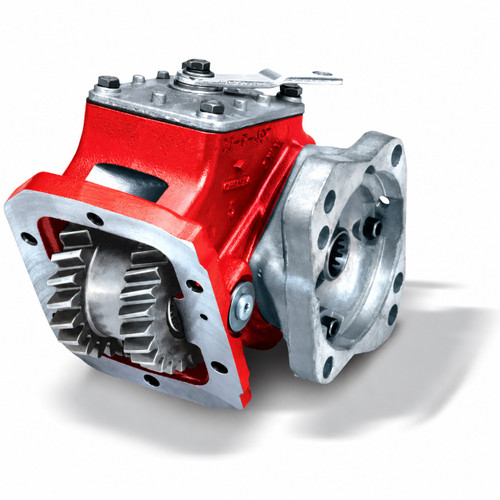

The Chelsea 447GWGPX-A5RA is a 6-bolt mounted Power Take-Off from the Chelsea 447 Series, engineered around a one-piece input gear with a space between its two sets of gear teeth. That design eliminates interference problems inside the transmission PTO aperture, making it compatible with a wide variety of transmissions without an adapter plate. Shift type is wire/cable or mechanical. Output is a round shaft with a 1-1/4" key. The 447 Series carries an intermittent torque rating of 201 to 300 lb-ft (check application pages for actual torque ratings) and delivers up to 43 HP at 1,000 RPM. Tapered bearings replace the needle bearings used in comparable PTOs, providing greater load-bearing capability. Available from Pro Gear and Transmission.
Features
6-bolt mounting, no adapter plate required for a wide range of transmissions
One-piece input gear eliminates interference problems inside the PTO aperture
Wire/cable or mechanical shift options
Round shaft output with 1-1/4" key
Tapered bearings for greater load-bearing capability versus needle-bearing designs
Tech Specs
- Mounting Type: 6-Bolt
- Shift Type: Wire/Cable or Mechanical
- Output Shaft Type: Round Shaft, 1-1/4" Key
- Intermittent Torque (Series): 201 to 300 lb-ft / 301 to 400 Nm (check application pages for actual torque ratings)
- Continuous Torque: De-rate intermittent rating by 30% (check application pages for actual torque ratings)
- Output Power (Series): 36 to 45 HP / 31 to 40 kW
- Shaft Power: 21 HP at 500 RPM; 43 HP at 1,000 RPM
- Lubricant: No pressure lube (X designation)
Additional Information
The Chelsea 447 Series is suited for aerial equipment, utility trucks, dump truck and trailer applications, snow and ice removal, and fire and rescue vehicles. The series offers twenty-six output options including Chelsea's 360-degree rotatable flange, four internal speed ratios, and eleven shift options. Special options and installation kits are available for Eaton FS series and Nissan/UD MLS series transmissions. Part number 447GWGPX-A5RA is also referenced as SP447GWGPX-A5RA. Relevant Parker Chelsea documents include the 447 Series Parts List (HY25-2442-M1_US), 447 Series Sales Literature, and the 340/348/442/447/489/660/680/823/863/880 Series Owner's Manual.Parts Manual: Chelsea 447 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
