Chelsea PTO 447 Series Parts Manual

View the official Chelsea PTO 447 parts manual (PDF)Download PDFOwner's Manual (PDF)Full Manual, all series (PDF)

Model Number Designation

Chelsea PTO 447 Model Number Designation exploded-view diagram
ItemPart No.DescriptionQtyNotesPrice

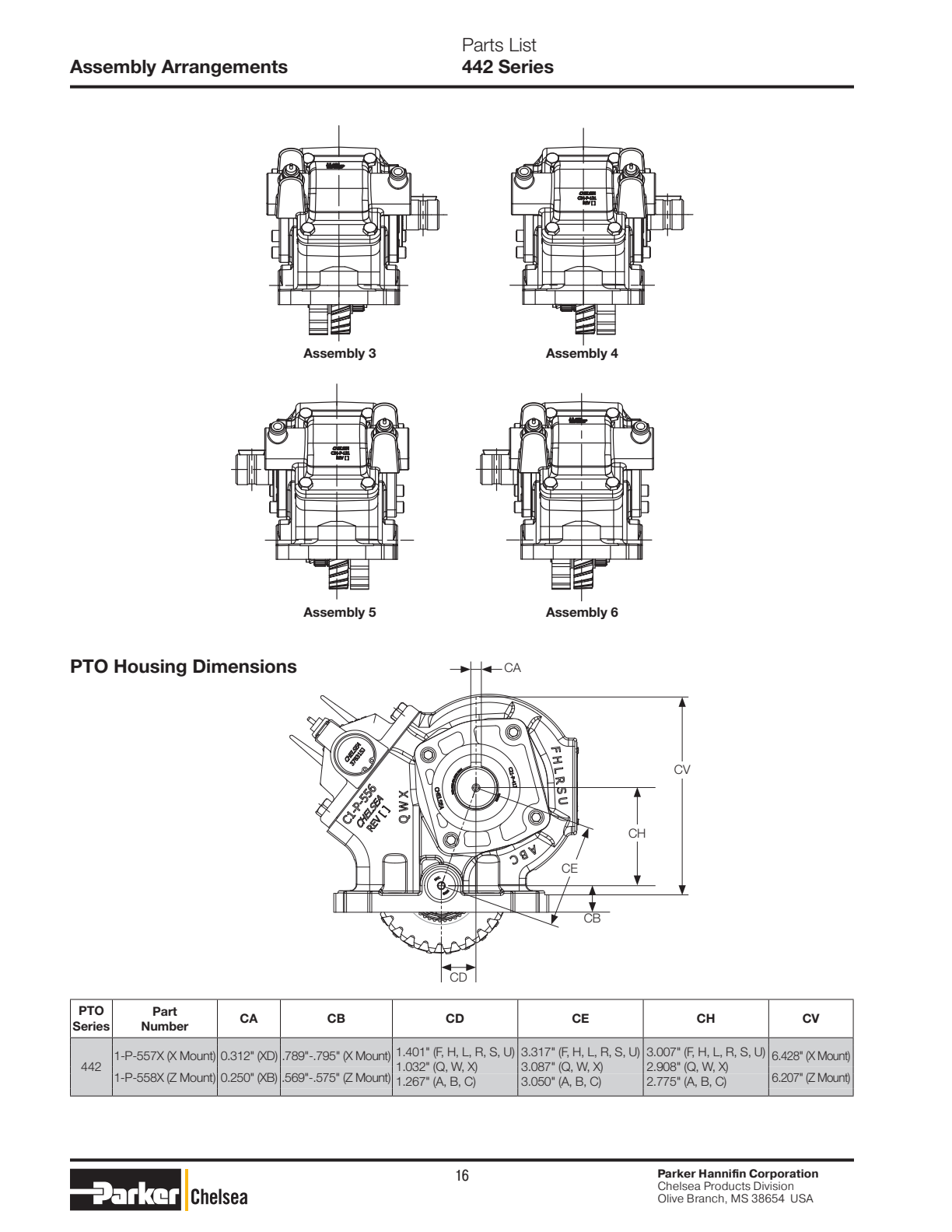

Model Number Designator 447 Series

Chelsea PTO 447 Model Number Designator 447 Series exploded-view diagram
ItemPart No.DescriptionQtyNotesPrice
DIN5462Pump Mount, Din 5462 Shaft (B8x32x36) Special Sae A Pilot & 2-Bolt Flange V Xo ,—Call for availability

Parts List Bill of Materials 447 Series

Chelsea PTO 447 Parts List Bill of Materials 447 Series exploded-view diagram

Click a number on the diagram to highlight that part below.

ItemPart No.DescriptionQtyNotesPrice
11P557XStandard Mount Housing (x, G & K ) (includes Item 23)1 or$257.42Add to Cart
1P558XDeep Mount Housing (z & L) (includes Item 23)1$253.28Add to Cart
2550397Bearing Cone1$36.75Add to Cart
33P202Output Shaft (xd) Standard (1 .250" Rd .313" Kw)1 or$95.42Add to Cart
59P88Idler Standard Shaft1 or$79.32Add to Cart
9P89Idler Pressure Lube Shaft (p)1$207.54Add to Cart
614P731Idler Gear Spacer (.149" .151 ")A.R.$10.38Add to Cart
14P732Idler Gear Spacer (.152 " .154")A.R.$11.01Add to Cart
14P733Idler Gear Spacer (.155" .157 ")A.R.$10.38Add to Cart
731P102Bearing Thrust Washer1$3.72Add to Cart
828P216Oil Seal (xd Output)1$21.40Add to Cart
928P191O-ring1$3.59Add to Cart
1068P511Adhesive Label1—Call for availability
328273XOpen End Bearing Cap Assembly (xd Output)1$64.09Add to Cart
12328274XCClose End Bearing Cap Assembly1—Call for availability
13378391Lockring (all Other Shifter Types Except M)2$2.47Add to Cart
1537844761/4" Socket Hex Head Cap Screw (.312 " -18 X 1 .000") (xd Output)4$4.33Add to Cart
18379672Plug O-ring W/ Socket Face (nwd Plug) ,1$12.09Add to Cart
1950000729Woodruff Key (xd Output)1$3.11Add to Cart
21550439Bearing Cone2$51.63Add to Cart
22550532Bearing Cone1$36.75Add to Cart
2835P8Gasket, Shifter Cover1$3.48Add to Cart
3037843091/2 " Hex Head Cap Screw (.312 " -18 X .875") (electric, Air & Wire)4$1.76Add to Cart
37843081/2 " Hex Head Cap Screw (.312 " -18 X .625") (constant Mesh) Shifter Cover Assemblies4$2.06Add to Cart
3422P1271Bearing Cap Gasket (.010")A.R.$2.30Add to Cart
22P1272Bearing Cap Gasket (.020")A.R.$2.30Add to Cart
22P1273Bearing Cap Gasket (.015")A.R.$2.30Add to Cart
378414Pressure Protection Valve (v Shifter Option)1$66.97Add to Cart
379640Booted Connector (v Shifter Only) As Required Continued On Next –1$18.40Add to Cart
3289486XGasket And Installation Instructions Stud Kits1$24.01Add to Cart
32817076XStud Kit (x Mounting Type)1$30.69Add to Cart
32817077XStud Kit (z Mounting Type)1$38.59Add to Cart
717072XMounting Kit (g Metric Mounting Type) Installation Kit1$53.10Add to Cart
3287511XInstallation Kit (c, H W, X, Y) , Air Shift Installation Kits1$65.59Add to Cart
32838847XAir Shift Installation Kit (p Shifter)1$563.43Add to Cart
32838848XAir Shift Installation Kit (q Shifter)1$544.19Add to Cart
32838865XAir Shift Installation Kit (s Shifter)1$762.60Add to Cart
32838898XAir Shift Installation Kit (a Shifter) Shifter Kits1$367.41Add to Cart
32910671XShifter Kit (air Shift, A Shift Option)1—No longer available — call for replacement
32910675XShifter Kit (air Shift, P Shift Option)1$611.09Add to Cart
32910677XShifter Kit (air Shift, Q Shift Option)1—No longer available — call for replacement
329106113XShifter Kit (wire Control 3 & 6, Q & W Ratio; W Shift Option)1—Call for availability
329106114XShifter Kit (wire Control 3 & 6, Q & W Ratio; W Shift Option)1—No longer available — call for replacement
329106117XShifter Kit (wire Control 3 & 6, Q & W Ratio; X Shift Option)1—No longer available — call for replacement
329106118XShifter Kit (wire Control 4 & 5 Q & W Ratio; X Shift Option) ,1$223.71Add to Cart
329106151XShifter Kit (v Shift Option).1$147.66Add to Cart
32834610XWire Control Cable (w Shifter)1$135.56Add to Cart
328380XWire Control Parts Bag (w Shifter) Service Kits1$13.25Add to Cart
32835613XGasket & Seal Kit1$55.97Add to Cart
32835615XShifter Cover Seal Kit (wire Control)1$85.55Add to Cart
32835617XShifter Cover Seal Kit (air Shift)1$77.91Add to Cart
32835626XShifter Cover Seal Kit (lever To Air)1—Call for availability
32859413XBearing And Spacer Kit (non-pressure Lube) Pump Kit1$228.03Add to Cart
328711XPump Mounting Kit (xr Output) Service Conversion Kits1$14.26Add to Cart
3290961XField Conversion Kit (self Lube Replace 3-P-202)1—Call for availability
3290971XField Conversion Kit (self Lube Replace 3-P-282) Output Conversion Kits1—Call for availability

Gear Ratio Options 447 Series

ItemPart No.DescriptionQtyNotesPrice
447QET5-P-865 19 Left Helix 19 2-P-69724—Call for availability
447QES5-P-869 22 Left Helix 19 2-P-69724—Call for availability
447SET5-P-866 19 Left Helix 24 2-P-69822—Call for availability
447SES5-P-870 22 Left Helix 24 2-P-69822—Call for availability
447UET5-P-867 19 Left Helix 26 2-P-69920—Call for availability
447UES5-P-871 22 Left Helix 26 2-P-69920—Call for availability

Gear Ratio Options 447 Series Gear Chart (cont’d)

ItemPart No.DescriptionQtyNotesPrice
5P868V 447*WET — Teeth* 19, Helix No. Teeth** Left Helix, Output 26, Teeth 17$360.82Add to Cart
2P700No For V 447*WET$184.49Add to Cart
5P872447*WES — Teeth* 22, Helix No. Teeth** Left Helix, Output 26, Teeth 17$305.04Add to Cart
5P1208V 447*WEV — Teeth* 40, Helix No. Teeth** Spur, Output 26, Teeth 17—Call for availability
5P890V 447*WFE — Teeth* 29, Helix No. Teeth** Left Helix, Output 26, Teeth 17$377.95Add to Cart
5P988V 447*WGD — Teeth* 19, Helix No. Teeth** Right Helix, Output 26, Teeth 17—Call for availability
5P1148V 447*WGP — Teeth* 23, Helix No. Teeth** Spur, Output 26, Teeth 17$412.45Add to Cart
5P1272V 447*WJX — Teeth* 40, Helix No. Teeth** Spur, Output 26, Teeth 17—Call for availability
5P900V 447GWFH — Teeth* 20, Helix No. Teeth** Right Helix, Output 26, Teeth 17—Call for availability
5P901V 447GWFG — Teeth* 18, Helix No. Teeth** Right Helix, Output 26, Teeth 17—Call for availability

Lube Options 447 Series

ItemPart No.DescriptionQtyNotesPrice
373784476Socket Head Cap Screw (.312 " -18 X 1 .000") 4 4 4$4.33Add to Cart
93P857Output Shaft (vld Output) 1 Or$444.71Add to Cart
3P858Output Shaft (vla, Vlb, Vlc, Vle, Vlf Output) 1—No longer available — call for replacement
51329091XLube Pump & Bearing Cap Assembly 1—No longer available — call for replacement
52329092XPressure Lube Hose Assembly 1$92.32Add to Cart
54500841190° Street Elbow 1$9.09Add to Cart
555008973Shipping Plug 1—No longer available — call for replacement

Shift Options 447 Series Air Shifter Cover Assembly

ItemPart No.DescriptionQtyNotesPrice
329363XAir Shifter Cover Assembly (includes Item 1 -1 1)1 or$337.38Add to Cart
3293631XAir Shifter Cover Assembly (e Shift) (includes Item 1 -10 & 12)1—Call for availability
111P75Shifter Shaft1$60.75Add to Cart
228P41O-ring (.734" X .141 ")1$5.03Add to Cart
328P42O-ring (1 .051 " X .070")2$3.59Add to Cart
432P180Shifter Fork1$105.58Add to Cart
534P130Shifter Cover1$95.72Add to Cart
637P21Shifter Spring1$2.86Add to Cart
7378315Cover Plug2$5.55Add to Cart
8378316Internal Lockring2$1.68Add to Cart
937844741/4" Socket Hex Head Cap Screw (w/ Threadlocker) (.312 " -18 X .750")1$1.78Add to Cart
105008975Shipping Plug1—Call for availability
380515Indicator Switch (329363X)1 or$25.03Add to Cart
12379038Indicator Switch (329363-1X)1$46.35Add to Cart

Shift Options 447 Series Lever Control Shifter Cover Assembly

ItemPart No.DescriptionQtyNotesPrice
3291511XLever Shifter Cover Assembly (assembly 3 & 6) (includes Item 1 -1 1)1 or$188.84Add to Cart
3291512XLever Shifter Cover Assembly (assembly 4 & 5) (includes Item 1 -1 1) Ratios S & U1 or$188.84Add to Cart
3291521XLever Shifter Cover Assembly (assembly 3 & 6) (includes Item 1 -10 & 12)1 or$192.95Add to Cart
3291522XLever Shifter Cover Assembly (assembly 4 & 5) (includes Item 1 -10 & 12)1$192.23Add to Cart
137P19Spring (.220" X 1 .188")1$2.04Add to Cart
25004096Hex Head Cap Screw (.312 " -24 X .625")1$1.23Add to Cart
351P22Shifter Lever1$12.57Add to Cart
450035610Lock Washer (.575" X .319" X .056")1$1.53Add to Cart
550036522Flat Washer (.688" X .344" X .065")1$1.05Add to Cart
6378004Flat Washer (.641 " X 1 .000" X .097 ")1$2.01Add to Cart
734P74Shifter Cover1$44.57Add to Cart
8379652Indicator Switch1$40.79Add to Cart
963P16Shifter Poppet1$9.26Add to Cart
1028P191O-ring (.549" X .103")1$3.59Add to Cart
3291181XShifter Plate Assembly (329151 -1X)1 or$69.07Add to Cart
3291182XShifter Plate Assembly (329151 -2X)1 or$69.07Add to Cart
3291201XShifter Plate Assembly (329152-1X)1 or$81.03Add to Cart
3291202XShifter Plate Assembly (329152-2X)1$86.10Add to Cart

Shift Options 447 Series Constant Mesh Parts (M Designator)

ItemPart No.DescriptionQtyNotesPrice
874P165Drive Shaft Spacer 1$18.43Add to Cart
34P39Shifter Cover Plate. 1$54.10Add to Cart
35P8Shifter Cover Gasket 1 1 1 1$3.48Add to Cart
37843081/2 " Hex Head Cap Screw (.312 " -18 X .625") 4$2.06Add to Cart

Model Number Designator 489 Series 442/489 442/447/489 Series Series

Chelsea PTO 447 Model Number Designator 489 Series 442/489 442/447/489 Series Series exploded-view diagram
ItemPart No.DescriptionQtyNotesPrice
DIN5462Pump Mount, Din 5462 Shaft (B8x32x36) Non -standard Sae B Shaft- 3/16" Key)—Call for availability

Output Options 442/447/489 Series Output Conversion Kits

Chelsea PTO 447 Output Options 442/447/489 Series Output Conversion Kits exploded-view diagram
Chelsea PTO 447 Output Options 442/447/489 Series Output Conversion Kits exploded-view diagram
ItemPart No.DescriptionQtyNotesPrice

Output Options 442/447/489 Series Bill of Materials Pump Mount

Chelsea PTO 447 Output Options 442/447/489 Series Bill of Materials Pump Mount exploded-view diagram
ItemPart No.DescriptionQtyNotesPrice
28P219Flange, Sae Bb Oil Seal, 1$28.20Add to Cart
329088X.70] — Flange, Sae Bb Bearing Cap Assembly, 1$363.17Add to Cart
329658XFlange, Sae Bb Cover Kit (wet Spline, Shaft (1 " 15T) Only), 1$157.74Add to Cart
32859130X[13.1] — Flange, Sae Bb Conversion Kit (xd, Shaft (1 " 15T) To Af)$508.28Add to Cart
32859171X.41 " — Flange, Sae Bb Conversion Kit (xd, Shaft (1 " 15T) To Gf)$845.87Add to Cart
328591108XFlange, Sae Bb Conversion Kit (af, Shaft (1 " 15T) To Gf)$576.41Add to Cart
3P282Flange, Sae Bb Output Shaft, Shaft (1 " 15T) 1, Or$187.84Superseded by 3P282XAdd to Cart
28P216[101 .70] — Flange, Sae Bb Oil Seal, 1$21.40Add to Cart
328989XFlange, Sae Bb Bearing Cap Assembly, 1$378.21Add to Cart
32859128X.41 " — Flange, Sae Bb Conversion Kit (xd, Shaft (1 " 15T) To Ak)$392.52Add to Cart
3294367XFlange, Sae Bb Conversion Kit (xd, Shaft (1 " 15T) To Ak) (b Ratio)—No longer available — call for replacement
32859189X[14.3] — Flange, Sae Bb Conversion Kit (xd, Shaft (1 " 15T) To Gk)$569.55Add to Cart
32859186XFlange, Sae Bb Conversion Kit (xk, Shaft (1 " 15T) To Gk)$554.78Add to Cart

General

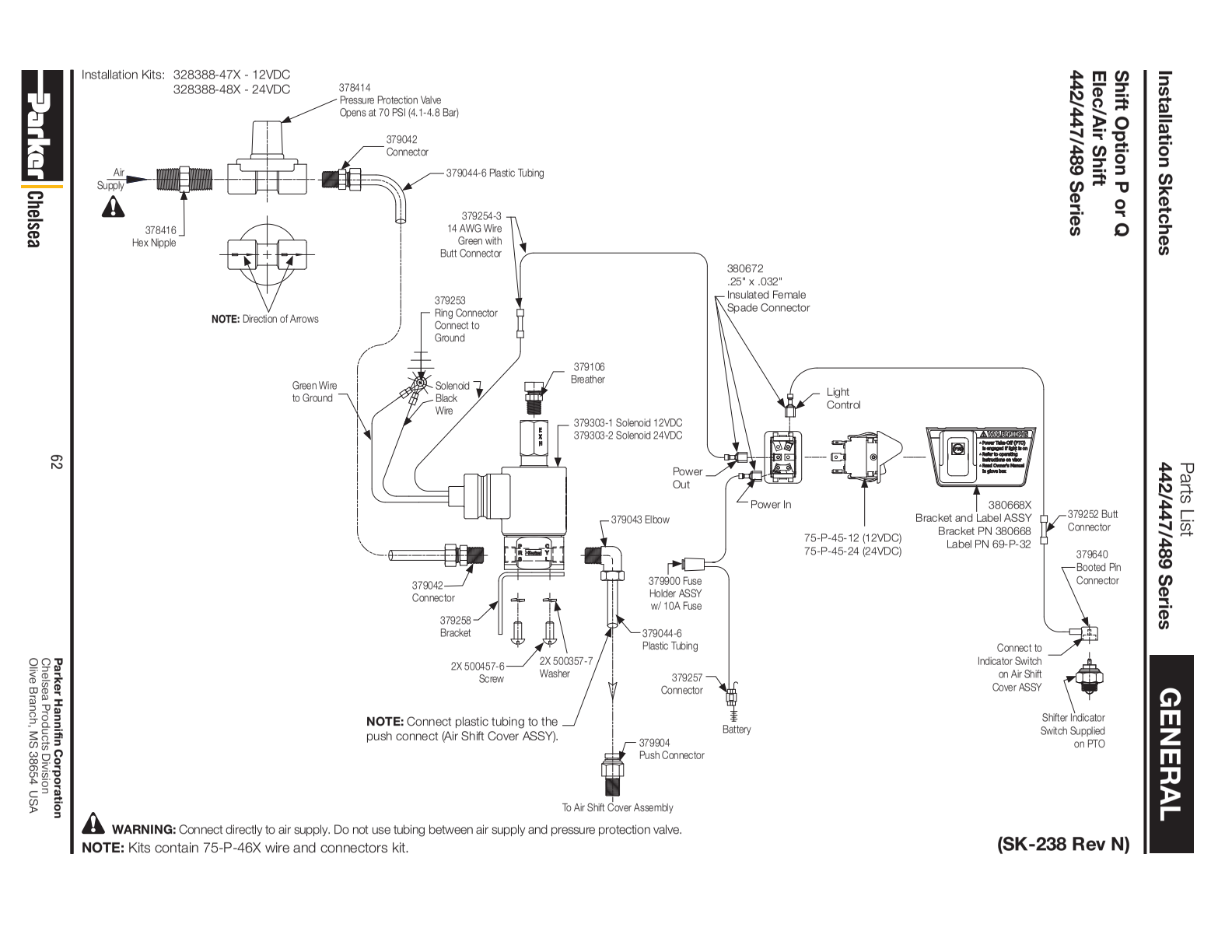

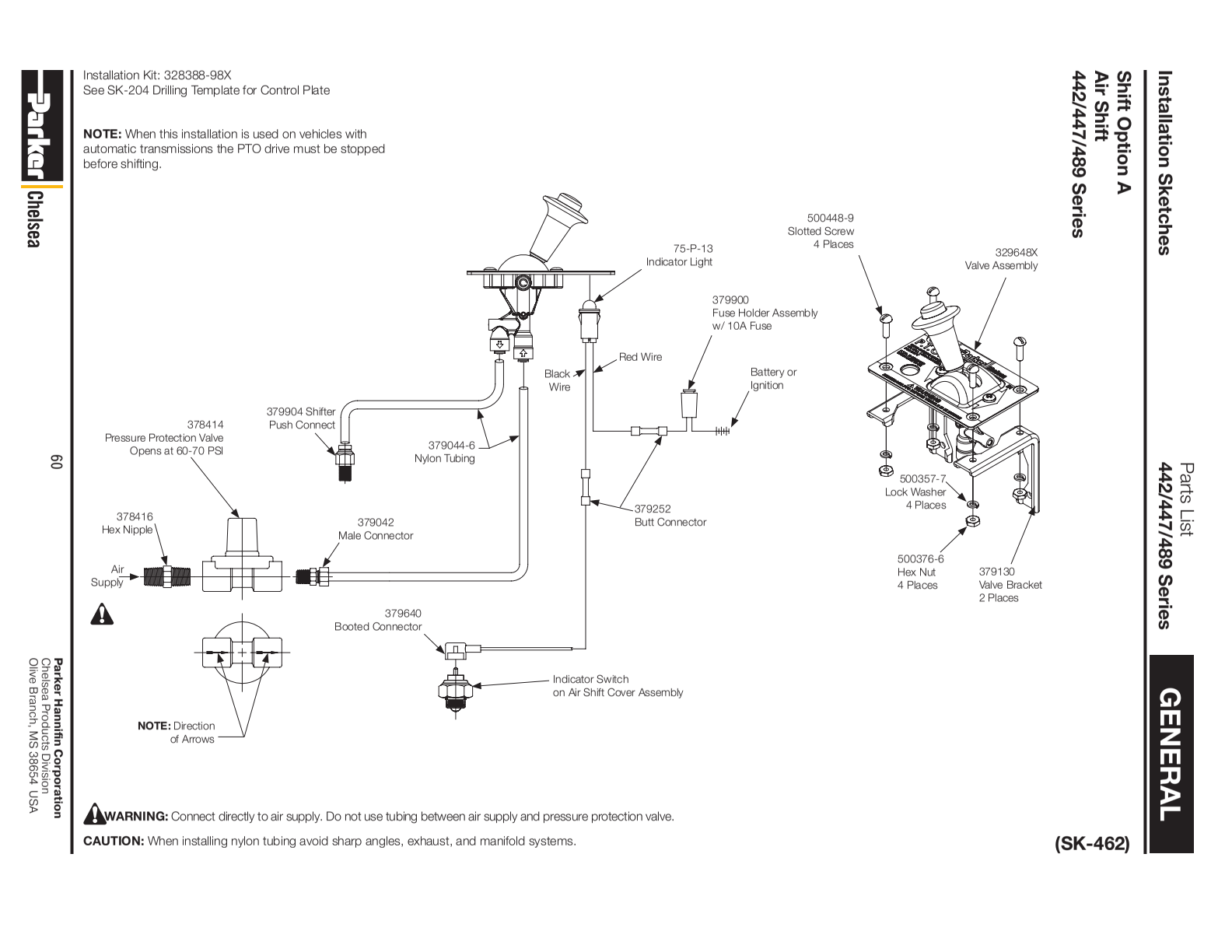

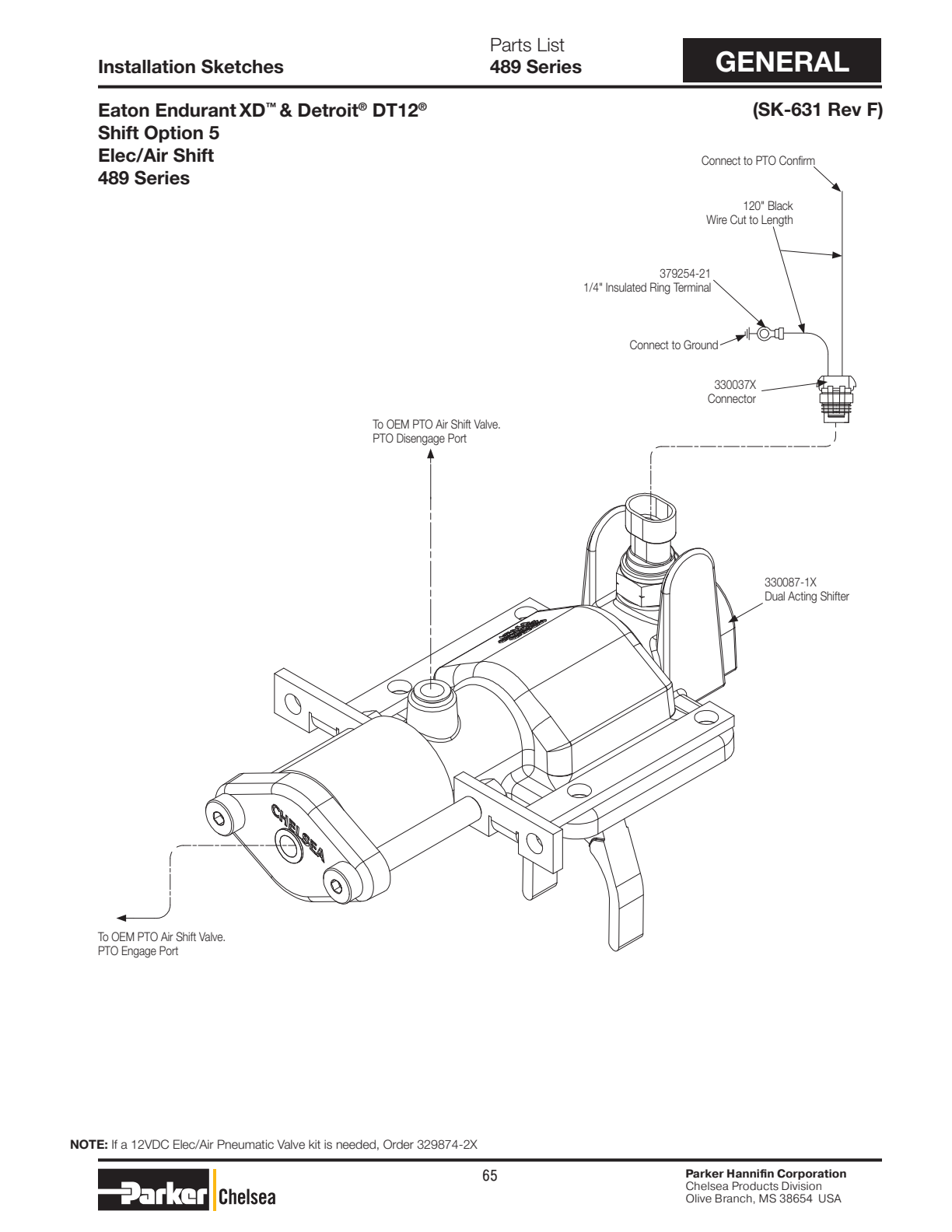

Chelsea PTO 447 General exploded-view diagram
Chelsea PTO 447 General exploded-view diagram
Chelsea PTO 447 General exploded-view diagram
Chelsea PTO 447 General exploded-view diagram
ItemPart No.DescriptionQtyNotesPrice

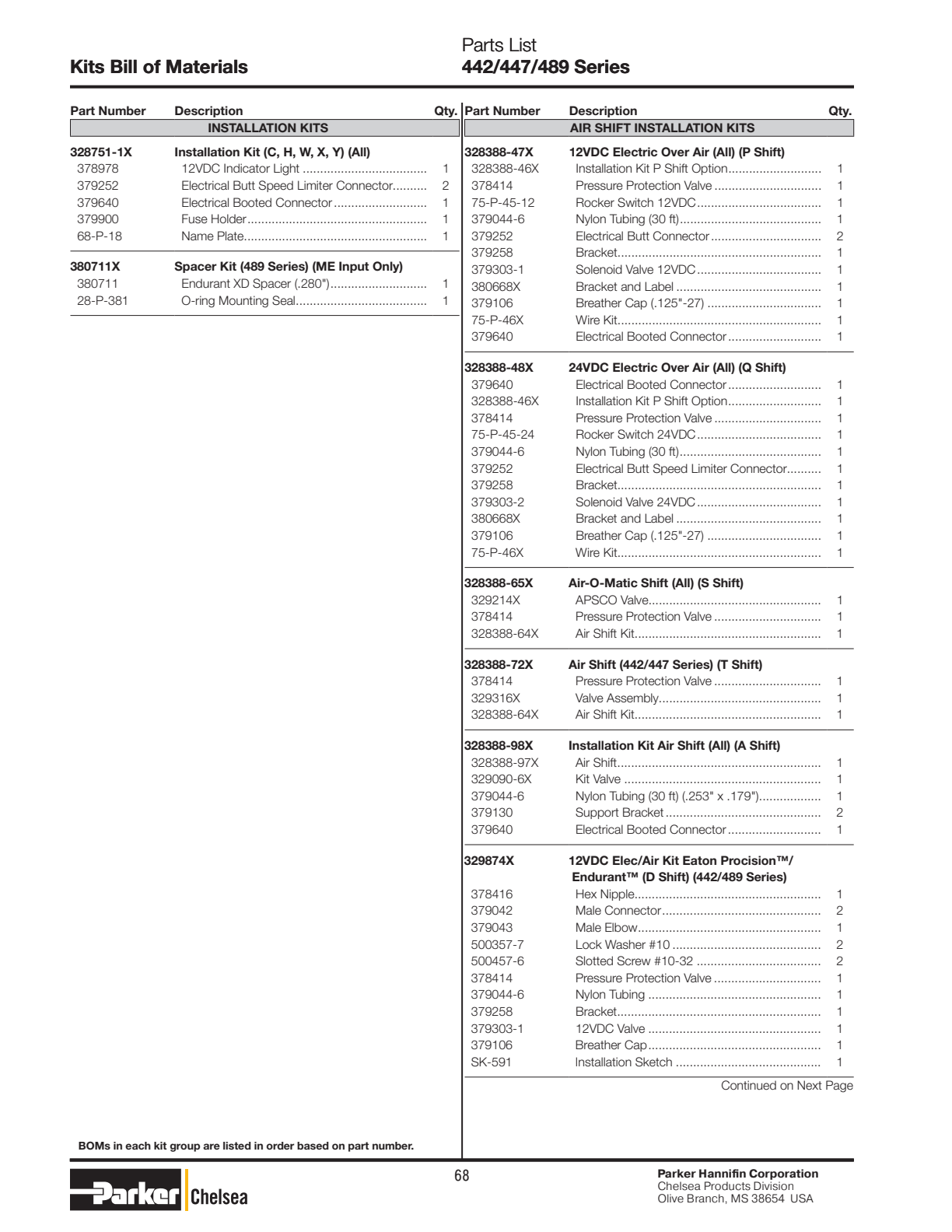

Parts Parts List List Kits Kits Bill Bill of of Materials Materials 442/447/489 442/447/489 Series Series

Chelsea PTO 447 Parts Parts List List Kits Kits Bill Bill of of Materials Materials 442/447/489 442/447/489 Series Series exploded-view diagram
Chelsea PTO 447 Parts Parts List List Kits Kits Bill Bill of of Materials Materials 442/447/489 442/447/489 Series Series exploded-view diagram
Chelsea PTO 447 Parts Parts List List Kits Kits Bill Bill of of Materials Materials 442/447/489 442/447/489 Series Series exploded-view diagram
Chelsea PTO 447 Parts Parts List List Kits Kits Bill Bill of of Materials Materials 442/447/489 442/447/489 Series Series exploded-view diagram
ItemPart No.DescriptionQtyNotesPrice

Additional Parts Listed in This Manual

ItemPart No.DescriptionQtyNotesPrice
500597-14Roll Pin, Deep Mount (1" Long) 11$3.24Add to Cart
500597-16Roll Pin, Standard Mount (1.125" Long) 11$1.18Add to Cart
379639Indicator Switch, Pin Style (normally Off) 11$25.03Add to Cart
328170-201X Mounting Kit ("g" Metric Mounting Type)1—Call for availability
328388-37XAir Shift Installation Kit ("a" Shifter) 11$367.41Add to Cart
379319Indicator Switch Booth 11—Call for availability
329166-12XElectric Shift Installation Kit 11—Call for availability
329218XIndicator Switch Service Kit 11$18.40Add to Cart
329304XBearing Cap And Seal Assembly (pressure Lube) 11$256.67Add to Cart
379904Push Connect, For 1/4" Tubing 11$7.13Add to Cart
329106-10BX Shifter Kit (wire Control 4 & 5, "q", "w", "x" Ratio; "x" Shift Option) 11—Call for availability
329106-11Ox Shifter Kit (wire Control 4 & 5, "f", "l.:', "r", "s", "u" Ratio; "w" Shift Option) 11—Call for availability
329106-111X Shifter Kit (wire Control 3 & 6, "f", "l.:', "r", "s", "u" Ratio; "x" Shift Option) 11—Call for availability
329106-135XConstant Mesh Kit 11$227.52Add to Cart
239102XBearing Cap Ass'y (21-P-532)1—Call for availability
378447-8Socket Head Capscrew (.312" 18 X 1.5")4$2.32Add to Cart
378447-10Socket Head Capscrew (.312" 18 X 2.0")4$4.45Add to Cart
3-P-979Output Shaft (''b" Ratio Only)1$227.80Add to Cart
28-P-275Oil Seal1$37.46Add to Cart
329052XBearing Cap Ass'y (21-P-508)1$613.82Add to Cart
378447-11Socket Head Capscrew (.312" 18 X 2.5")4$7.47Add to Cart
3-P-981X"ge" Shaft Assembly 1 Or$512.42Add to Cart
3-P-921X"gf" Shaft Assemblies 1 Or$860.23Add to Cart
3-P-933X"gq", "gk", "gp" Shaft Assemblies 1 Or$581.33Add to Cart
3-P-938X"gy" Shaft Assemblies 1 Or$819.60Add to Cart
3-P-939X"gz" Shaft Assemblies 1 Or$873.79Add to Cart
3-P-941X"gh", "gj" Shaft Assemblies1$1,076.84Add to Cart
500168-2Lube Fitting (zerk)1$6.59Add to Cart
379819Grease Fitting Cap1$2.07Add to Cart
379688Coupling Lube Pack (5/8 Fl.oz)1$8.98Add to Cart
28-P-268Rear Bearing Cap Shaft Oil Seal1$69.47Add to Cart
329195XBearing Cap Ass'y (21-P-574)1$132.25Add to Cart
21-P-661Pump Flange1$294.15Add to Cart
328170-207XCapscrew Bag Kit1$9.52Add to Cart
329264XBearing Cap Ass'y (21-P-629)1$164.26Add to Cart
28-P-271O-ring1$28.61Add to Cart
3-P-980Output Shaft (''b" Ratio Only)1$206.00Add to Cart
21-P-628Pump Flange (ship Loose W/unit)1$100.24Add to Cart
378170-6Socket Head Capscrew3—Call for availability
21-P-572Pump Flange (ship Loose W/unit)1$114.69Add to Cart
329322XBearing Cap Ass'y (21-P-640)1$744.53Add to Cart
21-P-638Pump Flange1$643.81Add to Cart
328170-21Ox Capscrew Bag Kit1—Call for availability
21-P-654Pump Flange1$88.51Add to Cart
21-P-626Pump Flange1$115.30Add to Cart
378446-4Socket Head Capscrew6$5.98Add to Cart
21-P-625Pump Flange1$317.28Add to Cart
329356XBearing Cap Ass'y (21-P-532)1$774.79Add to Cart
329355-1XStandard Loose Parts Kit1$116.34Add to Cart
379740-6Socket Head Capscrew (M10 1.5" X .984")3$11.57Add to Cart
22-P-100Gasket1$11.50Add to Cart
22-P-84Gasket1$45.16Add to Cart
328328XBearing Cap Ass'y (21-P-161)1$318.47Add to Cart
328580XBearing Cap Ass'y (21-P-259)1$439.30Add to Cart
328333XBearing Cap Ass'y (21-P-424) & (28-P-216)1$239.73Add to Cart
328589XBearing Cap Ass'y (21-P-269)1$324.47Add to Cart
329194XBearing Cap Assembly (21-P-574)1$135.04Add to Cart
379673Hex Shoulder Screw (.312" 24)4$12.77Add to Cart
379063Flat Washer4$2.70Add to Cart
378919Washer4$1.97Add to Cart
500963-1Hex Lock Nut (.312" 24)4—No longer available — call for replacement
379828Companion Flange1$705.64Add to Cart
378431-8Set Screw1—Call for availability
379111Square Key1$23.18Add to Cart
501181Hex Locknut (1.0" -20}1—No longer available — call for replacement
328234XBearing Cap Ass'y (21-P-614)1—Call for availability
329449XBearing Cap Ass'y (21-P-692)1$350.10Add to Cart
28-P-249O-ring 2 329361X Shifter Cover1$6.21Add to Cart
3-P-881Ge Rotor Shatt 1 378430-9 Hex Capscrew4$38.36Add to Cart
329093XPump Adapter 1 35-P-8 Shifter Cover1—No longer available — call for replacement
21-P-530Pump Adapter 1 328388-98X Kit Installation1—Call for availability
550221Bearing Tab1$14.19Add to Cart
378429-11Hex Capscrew 3 329106-43X Electric/ Air 12V$2.63Add to Cart
379173Plate-plump 1 328388-47X 12V Electric1$176.96Add to Cart
379175Retaining 1 329361X Shifter Cover1$11.60Add to Cart
379176Pump-gerotor 1 378430-9 Hex Capscrew4$130.42Add to Cart
379525Pump Cap 1 35-P-8 Shifter Cover1$247.07Add to Cart
500037-7Dowel Pin2—No longer available — call for replacement
500566-3Ball 1 329106-45X Electric/air 24V$1.26Add to Cart
500897-11Cap Plug 1 328388-48X 24V Electric Over Air1—No longer available — call for replacement
500897-8Shipping Plug 1 329361X Shifter Cover1—Call for availability
379280Fitting Swivel1$7.49Add to Cart
385004Female Jic 1 329106-105X Cable Shift ("q", "w', & "x")$10.91Add to Cart
385003Male Nptf 1 328380X Mounting Parts Kit1$12.24Add to Cart
385006Hose Bulk 1 329119-1X Cable Control Cover1$12.24Add to Cart
379534Inst Instruction 1 328380X Mounting Parts Kit1$9.14Add to Cart
28-P-190O-ring .73 1 35-P-8 Shifter Cover1$3.94Add to Cart
9-P-76Idler Shatt 1 378441-10 Wire1—Call for availability
378422Drive Screw 2 378502 Knob1$11.52Add to Cart
379646Installation1—Call for availability
68-P-2Name Plate 1 35-P-8 Shifter Cover1$2.65Add to Cart
378441-1010 Ft. Wire 1 378430-9 Hex Capscrew4$85.17Add to Cart
378502Knob 1 Owners Manual HY25-1135-M1/US1$14.54Add to Cart
378246Lockring1—Call for availability
64-P-1Shifter Shoe1—Call for availability
378244Shifter Post1—Call for availability
63-P-21Shifter Pin1—Call for availability
62-P-46Shifter Plate 1 Wire Control (ass'y 4 & 5)—Call for availability
378313Lifter Plate 1 63-P-16 Poppet Pin1—Call for availability
35-P-14Gasket 1 329120-2X Shifter Plate Ass'y1$2.88Add to Cart
378430-4Capscrew Hex Head 2 378004 Flat Washer1$6.00Add to Cart
65-P-23Cover Shift 1 379652 Indicator Switch Norm. "on"1$20.58Add to Cart
500457-6Slotted Screw4$1.12Add to Cart
379061XTie Wire1—Call for availability
379252Butt Connector 1 329271-1X Shifter Cover Assembly$2.30Add to Cart
1-P-557P.t.o. Housing 1 63-P-16 Poppet Pin1—No longer available — call for replacement
1-P-558Housing Deep Mount1—Call for availability
1-P-552Housing 1 51-P-22 Shifter Lever1—Call for availability
62-P-45Shifter Plate 1 378447-6 Socket Head7—Call for availability
63-P-23Shifter Pin 1 379638 P.t.o. Tag1—Call for availability
379638P.t.o. Tag1$3.08Add to Cart
329436-3XPump Conv Kit "xk" "b" Ratio Only 328170-77X Stud Kit, Deep Mount (422 Series)$319.28Add to Cart
379424-18Stud2$4.30Add to Cart
329436-6XPump Conv Kit "xo" "b" Ratio Only 379745 Flange Nut2—No longer available — call for replacement
378774Lockwasher6$2.19Add to Cart
329436-9XPump Conv Kit "sq" "b" Ratio Only 28-P-191 O-ring1—No longer available — call for replacement
379423-15Stud .375"6$4.89Add to Cart
379744Flange Nut6$1.63Add to Cart
22-P-69Gasket 1 328388-47X 12V Electric Over Air$7.85Add to Cart
28-P-226Oil Seal 1 378414 Pressure Protection Valve1$70.54Add to Cart
378326Nut, Hex 1 328388-46X Inst Kit P Shift Option1$2.22Add to Cart
50-P-17Bracket, Wire Control. 1 378414 Pressure Protection Valve1$5.47Add to Cart
50-P-19Swivel Bracket 1 378881 Rocker Swivel1$3.48Add to Cart
500396-8Screw, Hex 1 379005 Indicator1$1.17Add to Cart
500568-4Set Screw 1 379044-7 Nylon Tubing1$1.45Add to Cart
378019Pivot Pin 1 379252 Butt Connector1$4.50Add to Cart
379258Bracket1$5.11Add to Cart
328388-44XAir Shift 1 379336 Switch Bracket1$107.93Add to Cart
329090-1XValve Kit. 1 379106 Breather Cap1—Call for availability
379044-7Nylon Tubing 1 379254-3 Wire, Green1$41.17Superseded by 3790446Add to Cart
379130Support Bracket2$3.48Add to Cart
68-P-27Control Plate 1 328388-65X Air-o-matic Shift$17.36Add to Cart
378416Hex Nipple1$4.80Add to Cart
378978Indicator 1 328388-72X Air Shift$25.82Add to Cart
379042Male Connector 2 378414 Pressure Protection Valve1$5.66Add to Cart
379043Male Elbow 1 329316X Valve Assembly1$7.39Add to Cart
500357-7Lockwasher8$1.07Add to Cart
500376-6Nut 10-24 4 328388-97X Airshift—No longer available — call for replacement
500448-9Screw Slot 4 328931X Kit Valve1$1.05Add to Cart
379900Ass'y Fuse 1 500357-7 Lockwasher4$5.99Add to Cart
75-P-13Light Indicator1$25.84Add to Cart
328388-97XAir Shift 1 28-P-216 Oil Seal1$107.93Add to Cart
329090-6XKit Valve 1 3-P-282 Pump Shaft1$216.58Add to Cart
3-P-283Pump Shaft1$187.84Add to Cart
378430-11Hex Capscrew 4 22-P-127-1 Bearing Cone2$4.84Add to Cart
328591-10X"xg" Pump Conversion 379688 Lubricant Spline1$174.50Add to Cart
3-P-281Pump Shaft 1 22-P-127-2 Bearing Cone2$224.42Add to Cart
328591-11X"xj" Pump Conversion 378447-8 Socket Head4$369.75Add to Cart
3-P-284Pump Shaft 1 22-P-127-2 Bearing Cone2$289.72Add to Cart
328591-16X"xk" Pump Conversion 378447-8 Socket Head4$357.11Add to Cart
328591-29X"fp' Pump Conversion 500897-5 Plug Shipping1—No longer available — call for replacement
3-P-851Pump Shaft 1 22-P-127-1 Bearing Cone2—Call for availability
3-P-854Pump Shaft 1 378447-8 Socket Head4$599.82Add to Cart
328591-44X"la" Pump Conversion—Call for availability
379533Installation 1 378447-8 Socket Head4—No longer available — call for replacement
328591-48X"lf" Pump Conversion 328591-56X Pump Conv. Kit "xd"$1,029.12Add to Cart
328591-52XPump Conv. Kit "xd"$260.80Add to Cart
3-P-844Output Shaft1$750.67Add to Cart
328591-53XPump Conv. Kit "r"$122.93Add to Cart
328591-54XPump Conv. Kit "r"$122.93Add to Cart
3-P-921Drive Shaft1$860.23Add to Cart
328591-73XPump Conversion Kit 328591-76X Pump Conversion Kit$405.83Add to Cart
3-P-923XDrive Shaft Ass'y 1 379688 Lubricant Spline1$655.03Add to Cart
3-P-923Drive Shaft 1 500168-2 Fitting1$655.03Add to Cart
328591-74XPump Conversion Kit 22-P-127-3 Bearing Cone1$591.49Add to Cart
328591-75XPump Conversion Kit 28-P-216 Oil Seal1—No longer available — call for replacement
3-P-939Output Shaft 1 3-P-933X Output Shaft1$412.43Add to Cart
3-P-933Output Shaft 1 378447-6 Socket Head4—Call for availability
328591-90XConversion Kit "xd"to "gp" 22-P-127-3 Bearing Cone1$483.90Add to Cart
328591-106XConversion Kit "ra" To "ga" 328591-112X Conversion Kit "xd" To "rc"—Call for availability
328591-113XConversion Kit "xd" To "rd"$1,002.61Add to Cart
328591-107XConversion Kit "rb" To "gb" 21-P-638 Pump Flange1$428.82Add to Cart
328591-116XConversion Kit "xd" To "gh" 328591-134X Pump Conv Kit "xd" To "re"$864.02Add to Cart
3-P-941Drive Shaft 1 3-P-924 Output Shaft1—Call for availability
328591-121XConversion Kit "xd" To "xy" 378447-6 Socket Head7$710.56Add to Cart
3-P-768Shaft Output ("xy") 1 329264X Bearing Cap Ass'y1$728.64Superseded by 3P768XAdd to Cart
329234XBearing Cap 1 28-P-219 Oil Seal1$674.37Add to Cart
328591-122XConversion Kit "xd" To "xx" 500168-2 Fitting1$639.97Add to Cart
3-P-766Shaft Earby 1 328591-142X Pump Conversion Kit "xd" To "pf"$787.30Add to Cart
328591-130XConversion Kit "xd" To "xv" 378447-6 Socket Head7$690.01Add to Cart
378454-7Setscrew 1 379638 P.t.o. Tag1$45.66Add to Cart
328591-131XConversion Kit "xd" To "ry" 21-P-661 Pump Flange1$1,115.57Add to Cart
328591-149X"sq" Pump Conversion 328594-16X Bearing And Spacer Kit—No longer available — call for replacement
328946XCaution Label Kit1—No longer available — call for replacement
5-P-1001$1,260.77Add to Cart
5-P-1061$384.70Add to Cart
5-P-1063$324.70Add to Cart
5-P-1003$464.19Add to Cart
5-P-1064$245.32Add to Cart
5-P-1004$244.88Add to Cart
5-P-1065$393.34Add to Cart
5-P-1005—No longer available — call for replacement
5-P-1006$368.61Add to Cart
5-P-1007$399.96Add to Cart
5-P-1008$535.77Add to Cart
5-P-1069$159.06Add to Cart
5-P-1009$187.23Add to Cart
5-P-1070$430.19Add to Cart
5-P-1010$606.90Add to Cart
5-P-1011$462.96Add to Cart
5-P-1071$356.85Add to Cart
5-P-1012$479.52Add to Cart
5-P-1150$356.85Add to Cart
5-P-1015$321.54Add to Cart
5-P-1152$414.30Add to Cart
5-P-1016$251.25Add to Cart
5-P-1157$191.75Add to Cart
5-P-1017—No longer available — call for replacement
5-P-1018—No longer available — call for replacement
5-P-1235$299.16Add to Cart
5-P-1019$500.31Add to Cart
5-P-1236$324.97Add to Cart
5-P-1020$520.00Add to Cart
5-P-1237$350.67Add to Cart
5-P-1021$219.00Add to Cart
5-P-1243$810.05Add to Cart
5-P-1022$539.57Add to Cart
5-P-1023$566.00Add to Cart
5-P-1248$298.78Add to Cart
5-P-1024—No longer available — call for replacement
5-P-1256$546.46Add to Cart
5-P-1025$474.18Add to Cart
5-P-1257$636.08Add to Cart
5-P-1261$423.27Add to Cart
5-P-1263$292.22Add to Cart
5-P-1028$390.51Add to Cart
5-P-1268$296.52Add to Cart
5-P-1029—No longer available — call for replacement
5-P-1310—No longer available — call for replacement
5-P-1031$474.18Add to Cart
5-P-1316$451.82Add to Cart
5-P-1319$350.66Add to Cart
5-P-1036$349.82Add to Cart
5-P-1343$243.99Add to Cart
5-P-1037$419.96Add to Cart
5-P-1383$279.18Add to Cart
5-P-1411$331.47Add to Cart
5-P-1041$208.54Add to Cart
5-P-1279$417.19Add to Cart
5-P-1042$349.82Add to Cart
5-P-1280$492.15Add to Cart
5-P-1043$178.28Add to Cart
5-P-1283$484.51Add to Cart
5-P-1045—No longer available — call for replacement
5-P-1284$379.80Add to Cart
5-P-1046$342.28Add to Cart
5-P-1285$245.75Add to Cart
5-P-1048$363.33Add to Cart
5-P-1050$480.56Add to Cart
5-P-1418$239.23Add to Cart
5-P-1052$292.10Add to Cart
5-P-1286$405.21Add to Cart
5-P-1287$269.79Add to Cart
5-P-1055$279.18Add to Cart
5-P-1056$389.02Add to Cart
5-P-1289$315.30Add to Cart
5-P-1290$252.20Add to Cart
5-P-1075—No longer available — call for replacement
5-P-1057$356.85Add to Cart
5-P-1291$419.96Add to Cart
5-P-1292$213.77Add to Cart
5-P-1059$271.87Add to Cart
5-P-1076$401.18Add to Cart
5-P-1060$473.37Add to Cart
5-P-1077$243.99Add to Cart
5-P-1079$338.98Add to Cart
5-P-1080$484.49Add to Cart
5-P-1097$389.04Add to Cart
5-P-1081$445.55Add to Cart
5-P-1082$321.50Add to Cart
5-P-1151$414.30Add to Cart
5-P-1300$302.07Add to Cart
5-P-1084$372.39Add to Cart
5-P-1311$176.88Add to Cart
5-P-1085$419.96Add to Cart
5-P-1317$189.11Add to Cart
5-P-1320$317.11Add to Cart
5-P-1088$434.61Add to Cart
5-P-1090$299.67Add to Cart
5-P-1364$243.99Add to Cart
5-P-1091$152.23Add to Cart
5-P-1365$419.96Add to Cart
5-P-1092$245.70Add to Cart
5-P-1094$428.09Add to Cart
5-P-1095$181.09Add to Cart
5-P-964$227.25Add to Cart
2-P-791$269.76Add to Cart
5-P-965$227.25Add to Cart
2-P-833$341.19Add to Cart
5-P-1214$227.27Add to Cart
2-P-792$228.95Add to Cart
5-P-966$257.25Add to Cart
2-P-726$228.95Add to Cart
5-P-967$227.25Add to Cart
2-P-802$228.95Add to Cart
5-P-968$227.25Add to Cart
2-P-727$228.95Add to Cart
5-P-969$227.25Add to Cart
2-P-559$224.47Add to Cart
2-P-637$224.47Add to Cart
2-P-560$224.47Add to Cart
2-P-561$224.47Add to Cart
2-P-728$228.95Add to Cart
5-P-1183$244.00Add to Cart
5-P-1184$798.34Add to Cart
5-P-1185$198.12Add to Cart
5-P-1186$311.75Add to Cart
5-P-1187$355.29Add to Cart
5-P-1188$176.02Add to Cart
5-P-1189$350.72Add to Cart
5-P-1190$502.57Add to Cart
5-P-1191$350.72Add to Cart
5-P-1192$867.29Add to Cart
5-P-1193$323.27Add to Cart
5-P-1194$165.40Add to Cart
5-P-1195$738.72Add to Cart
5-P-1196$397.02Add to Cart
5-P-1197$327.95Add to Cart
5-P-1199—No longer available — call for replacement
328591-70X$903.54Add to Cart
328591-72X$591.49Add to Cart
328591-114X$592.43Add to Cart
328591-138X$864.02Add to Cart
328591-91X$626.74Add to Cart
328591-76X—No longer available — call for replacement
328591-92X$700.87Add to Cart
328591-93X$808.83Add to Cart
328591-88X$561.97Add to Cart
328591-151X$399.75Add to Cart
328591-143X$221.71Add to Cart
328591-142X—No longer available — call for replacement
328591-55X$382.35Add to Cart
329436-1X$245.24Add to Cart
328591-56X$382.35Add to Cart
329436-2X$243.61Add to Cart
329436-8X$656.83Add to Cart
328591-134X$583.72Add to Cart
328591-78X$586.51Add to Cart
328591-27X$402.60Add to Cart
328591-17X$357.11Add to Cart
This is the complete factory parts breakdown for the Chelsea PTO 447 — every part in the manual, matched to our live inventory. We stock 381 of the 516 parts above; click any part number to view it, or add it straight to your cart. Click a number on any diagram to jump to that part.

No parts match that search — try the part number with no dashes.

This Chelsea Illustrated Parts List covering the 447 PTO helps you identify the correct gear sets, shifter kits and service parts for your power take-off before you order.

Models covered447
PTO typeChelsea 400 Series
DocumentIllustrated Parts List (Chelsea)
Length92 pages
FormatPDF — free download

What’s inside

  • Gear sets & output shaft assemblies
  • Shifter & air-shift control kits
  • Mounting gaskets & adapter plates
  • Housings & cover assemblies
  • Seal, bearing & snap-ring kits
  • Application & ratio reference tables
  • Exploded views with OEM part numbers

Chelsea parts & units we stock

Pro Gear and Transmission stocks new, remanufactured and good-used parts for Chelsea PTO units:

Not sure exactly which unit you have? Check our identification guides, or Ask an Expert — send us photos of your data tag and our drivetrain specialists will identify the unit and the exact parts you need. Or call (877) 776-4600.

Browse all Chelsea PTO parts — rebuild kits, seal kits, gears & shift covers — or shop complete Chelsea PTO units.

!
Call Us Now!
