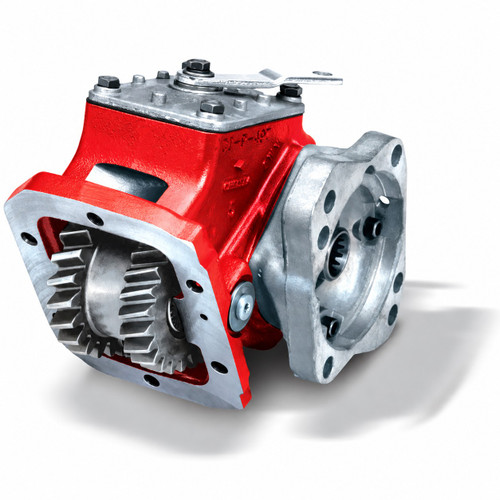

The Chelsea 447XQETX-H3XK is a 447 Series Power Take-Off built with a one-piece input gear that spaces its two sets of gear teeth to eliminate interference problems inside the transmission PTO aperture. The 447 Series mounts with a 6-bolt pattern and requires no adapter plate on most applications. Output is through a round shaft with a 1-inch, 1/4-inch key. Shift options include wire/cable and mechanical. The series carries an intermittent torque range of 201-300 lb-ft and delivers up to 43 HP at 1,000 RPM. Strong tapered bearings replace needle bearings for greater load capacity. Available with special installation kits for Eaton FS series and Nissan/UD MLS series transmissions.
Features
6-bolt mounting pattern, no adapter plate required on most transmissions
One-piece input gear eliminates interference problems inside the PTO aperture
Round shaft output, 1-inch diameter with 1/4-inch key
Shift options: wire/cable or mechanical
Intermittent torque rating: 201-300 lb-ft (305 Nm); up to 43 HP at 1,000 RPM
Tapered bearings for greater load-bearing capability over needle bearing designs
Tech Specs
- Mounting Type: 6-Bolt
- Shift Type: Wire/Cable or Mechanical
- Output Shaft Type: Round Shaft (1" diameter, 1/4" key)
- Intermittent Torque: 201-300 lb-ft (301-400 Nm); nominal 225 lb-ft (305 Nm) -- check application pages for actual torque rating
- Continuous Torque: De-rate intermittent rating by 30% -- check application pages for actual torque rating
- Output Power: 36-45 HP (31-40 kW)
- Shaft Power: 21 HP at 500 RPM, 43 HP at 1,000 RPM (16 kW at 500 RPM, 32 kW at 1,000 RPM)
- Lubricant: No pressure lube (X designation)
- Application Notes: Installation kits available for Eaton FS series and Nissan/UD MLS series transmissions
Additional Information
The Chelsea 447 Series shares its broad option set with the 442 Series and extends it further, offering 26 output configurations including Chelsea's 360-degree rotatable flange output, four internal speed ratios, and eleven shift options. Typical vocational applications include utility trucks, dump truck and trailer, snow and ice removal equipment, and fire and rescue apparatus. Parker Chelsea documents for this series include the 447 Series Parts List (HY25-2442-M1_US), the 340/348/442/447/489/660/680/823/863/880 Series Owner's Manual, and the Chelsea Power Take-Off General Information Catalog.Parts Manual: Chelsea 447 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
