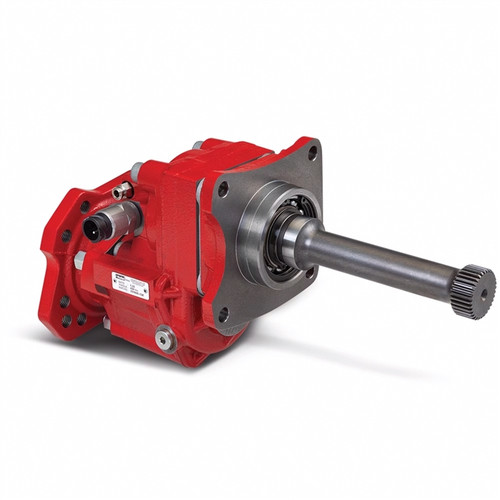

The Chelsea 524XTAHX-P-XV is a 524 Series rear mount power take-off designed for vocational truck applications. This pneumatic-shift PTO uses the rear mount aperture on compatible transmissions, helping eliminate clearance issues with its compact two-gear housing. The 524 Series carries an intermittent torque rating of 407 lb-ft and delivers 49 to 57 HP at 100 RPM output shaft speed. Output flanges conform to the DIN 5462 standard, and the housing integrates six shift options for a space-saving installation. Input adapters are available for ZF, Mack mDrive, Volvo I-Shift, and Eaton Endurant transmissions. Available from Pro Gear and Transmission.
Features
524 Series rear mount design uses rear aperture on compatible transmissions to reduce clearance conflicts
Pneumatic shift with six shift options integrated into the PTO housing
Intermittent torque rating of 407 lb-ft; output power 49 to 57 HP at 100 RPM output shaft
DIN 5462 output shaft and 4-bolt DIN 5462 direct mount pump output flanges
ISO 7653 80mm x 80mm mount option
Input adapters available for ZF, Mack mDrive, Volvo I-Shift, and Eaton Endurant transmissions
Tech Specs
- Series: Chelsea 524
- Mounting Type: Rear Mount
- Shift Type: Pneumatic
- Intermittent Torque: 407 lb-ft
- Output Power: 49 to 57 HP (at 100 RPM output shaft)
- Output Shaft Type: DIN 5462
- Mount Option: ISO 7653 80mm x 80mm
- Lubricant: Dry Spline
