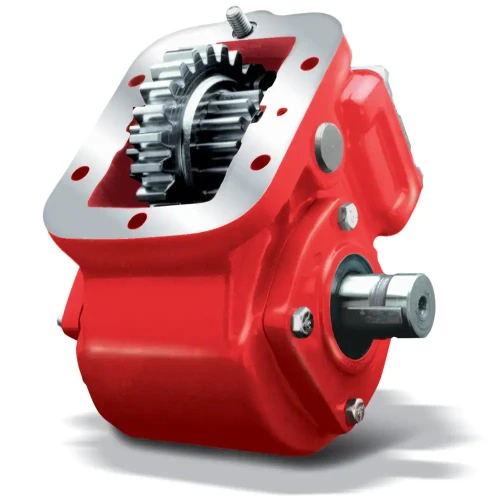

The Chelsea 221 Series Power Take-Off, part number 221XCAJP-W3XP or 221XCAJPW3XP, is a cast iron, 6-bolt mounted PTO designed for low-speed, heavy-duty applications such as dump trucks, tow and recovery, and aerial equipment. The 221 Series carries an intermittent torque rating of 250 lb-ft (339 Nm) and delivers shaft power of 24 HP at 500 RPM or 48 HP at 1,000 RPM. Output options in this series span SAE A, SAE B, and SAE C pump flanges, ISO 7652 pump flange, and driveline configurations. Compatible transmission families include Allison, Eaton/Fuller, and Volvo/Mack platforms. Note: Parker Chelsea lists the 221 Series as obsolete. Call us to confirm proper fit and current availability for your application.
Features
Chelsea 221 Series PTO, part number 221XCAJP-W3XP or 221XCAJPW3XP
6-bolt mounting configuration
Cast iron housing with tapered cone output shaft bearings
Intermittent torque rating: 250 lb-ft (339 Nm)
Shaft power: 24 HP at 500 RPM, 48 HP at 1,000 RPM
Compatible with Allison, Eaton/Fuller, and Volvo/Mack transmissions
Parker Chelsea lists the 221 Series as obsolete - call us to verify availability
