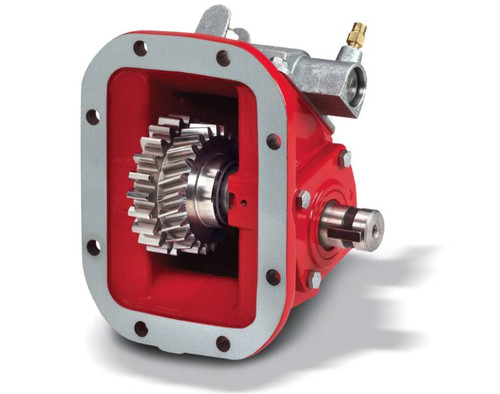

The Chelsea 221XEAJP-A3AF or 221XEAJPA3AF is a Power Take-Off from Chelsea's 221 Series, a cast-iron, 6-bolt mounted PTO designed for low-speed, heavy-duty applications such as dump trucks, tow and recovery equipment, and aerial units. The 221 Series carries an intermittent torque rating of 250 lb-ft (339 Nm) and supports continuous operation with a 30% de-rating. Output power reaches up to 48 HP at 1,000 RPM. The series accommodates multiple transmission manufacturers including Allison, Eaton/Fuller, and Volvo/Mack. Tapered cone output bearings provide greater load capacity than needle-bearing designs. Call us to confirm proper fit for your application.
Features
Chelsea 221 Series Power Take-Off (PTO)
6-bolt mounting configuration
Cast iron housing with tapered cone output bearings for high load capacity
Intermittent torque rating: 250 lb-ft (339 Nm)
Output power: up to 48 HP at 1,000 RPM
Compatible with Allison, Eaton/Fuller, and Volvo/Mack transmissions
Suited for dump trucks, tow and recovery, and aerial vocational applications
Additional Information
Parts Manual: Chelsea 221 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
