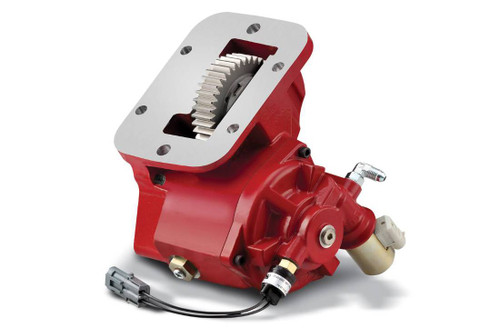

The Chelsea 249FMLLX-BV12 or 249FMLLXBV12 is a hydraulic PowerShift PTO designed for Ford transmissions using a Ford 6-bolt mounting pattern. Output is rated at 56+ HP (41-50 kW), with shaft power measured at 57 HP (42 kW) at 1,488 RPM, and a 1-1/4" round output shaft. Intermittent torque capacity runs up to 200 lb-ft (271 Nm) - check the Chelsea application pages for your specific torque rating. This unit features a built-in noise suppression system, making it the only quiet PTO available for the Ford Super Duty TorqueShift 6 transmission. A single-hose connection with an integrated actuation valve simplifies installation and reduces potential leak paths. Sold by Pro Gear and Transmission - call us to confirm proper fit for your application.
Features
Ford 6-bolt mounting pattern for Ford transmissions
Hydraulic PowerShift (hydraulic) shift type
1-1/4" round output shaft
56+ HP (41-50 kW) output power; 57 HP (42 kW) at 1,488 RPM shaft speed
Intermittent torque up to 200 lb-ft (271 Nm) - verify via Chelsea application pages
Noise suppression system - the only quiet PTO for the Ford Super Duty TorqueShift 6
Single-hose connection with integrated actuation valve reduces installation time and leak paths
Tech Specs
- Transmission Manufacturer: Ford
- Mounting Type: Ford 6-Bolt
- Shift Type: Hydraulic PowerShift (Hydraulic)
- Output Shaft Type: 1-1/4" Round
- Output Power: 56+ HP (41-50 kW)
- Shaft Power: 57 HP (42 kW) at 1,488 RPM
- Intermittent Torque: Up to 200 lb-ft (271 Nm) - check Chelsea application pages for actual torque ratings
