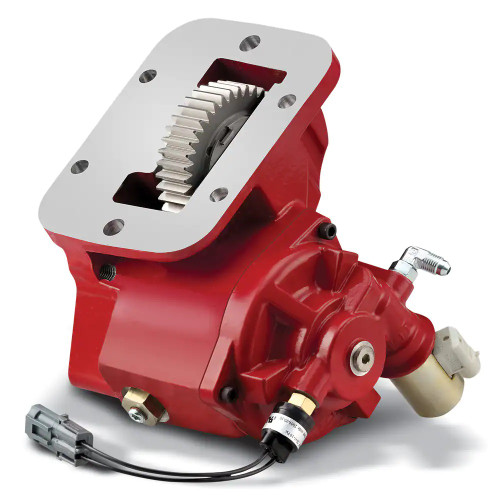

The Chelsea 249HMLLX-BV22 or 249HMLLXBV22 is a 249 Series Power Take-Off engineered specifically for Ford Super Duty trucks equipped with the 6R140 TorqShift 6 automatic transmission, in both 2WD and 4WD configurations. This series uses a 6-bolt Ford mounting pattern and a hydraulic PowerShift engagement, with a single hose connection and an integrated cartridge valve and pressure switch that streamline installation and reduce leak paths. The 249 Series carries an intermittent torque rating of up to 200 lb-ft (271 Nm) and delivers 56-plus HP of output power. Chelsea's patented noise-reduction design makes this the only PTO on the market built to suppress torsional noise on these transmissions. Call us to confirm proper fit for your application.
Features
Chelsea 249 Series PTO, part number 249HMLLX-BV22 or 249HMLLXBV22
Designed for Ford Super Duty trucks with the 6R140 TorqShift 6 automatic transmission, 2WD and 4WD
6-bolt Ford mounting pattern with hydraulic PowerShift engagement
Intermittent torque rating up to 200 lb-ft (271 Nm); 56-plus HP output
Single hose connection with integrated actuation valve and pressure switch for simplified installation
Patented noise-suppression system, the only quiet PTO solution for Ford TorqShift 6 applications
Tech Specs
- Mounting Type: Ford 6-Bolt
- Shift Type: Hydraulic PowerShift
- Intermittent Torque Rating: Up to 200 lb-ft (271 Nm)
- Output Power: 56+ HP (42 kW)
- Shaft Power: 57 HP at 1488 RPM (42 kW at 1488 RPM)
- Transmission Application: Ford 6R140 TorqShift 6 Automatic
- Vehicle Application: Ford Super Duty, 2WD and 4WD
- Lubricant: Internal Pressure Lube
- Continuous Operation: Yes, with 30% de-rating
- Output Shaft Options (series): Round Shaft 1-1/4 in. with 5/16 in. key; 3/4 in. 11-tooth pump spline; SAE B 7/8 in. 13-tooth pump spline
Additional Information
The Chelsea 249 Series is suited for aerial, tow and recovery, service truck, small dump truck, fire and rescue, water drilling, and other mobile work truck applications. Installation requires no special tools. The integrated actuation valve and single hose connection minimize installation time and eliminate extra leak paths compared to conventional PTO setups. Reference Parker documents: 247/249/249V/272-F Series Owner's Manual; 249 Series Parts List HY25-2249-M1_US; Chelsea Power Take-Off General Information Catalog.Parts Manual: Chelsea 249 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
