Chelsea PTO 249 Series Parts Manual

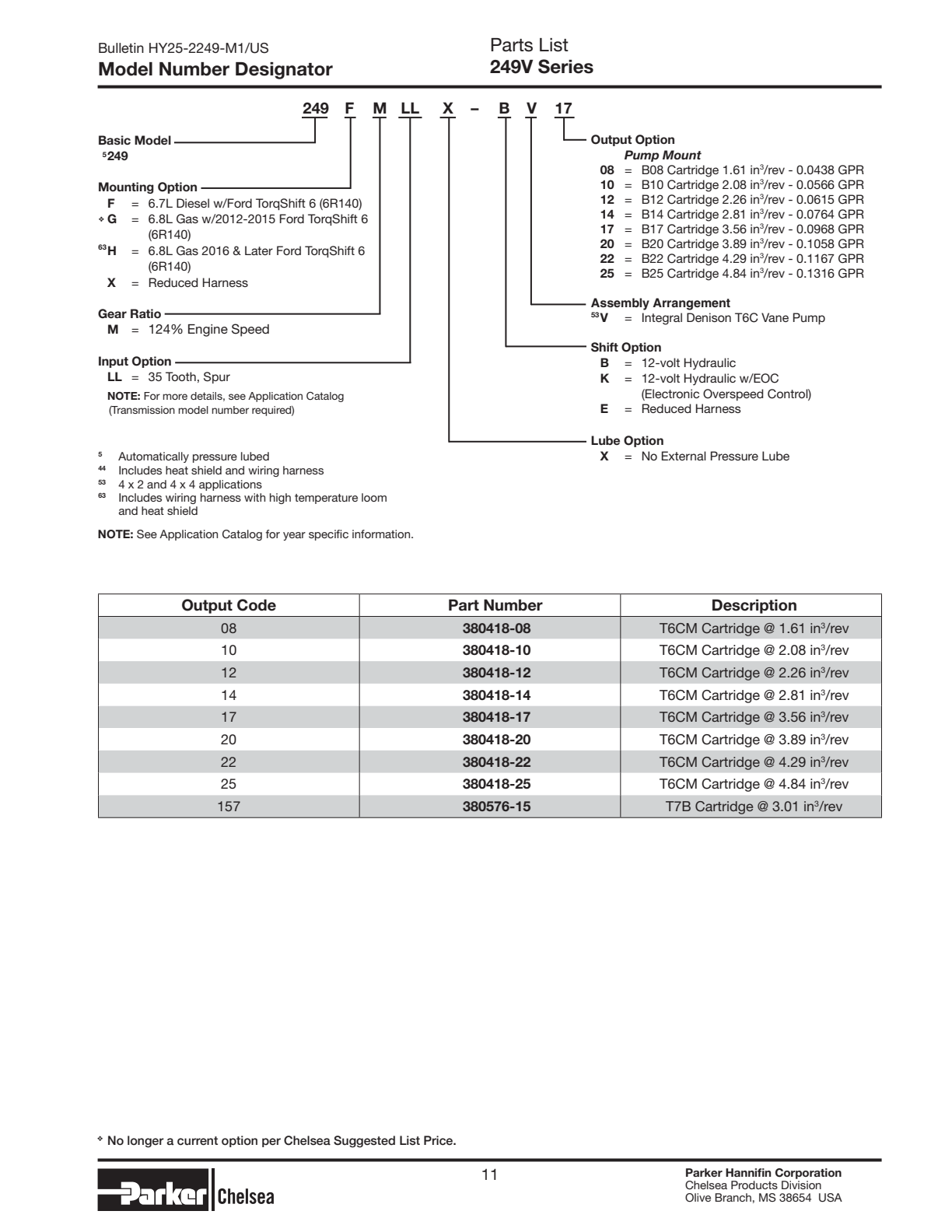

Model Number Designation
| Item | Part No. | Description | Qty | Notes | Price |
|---|

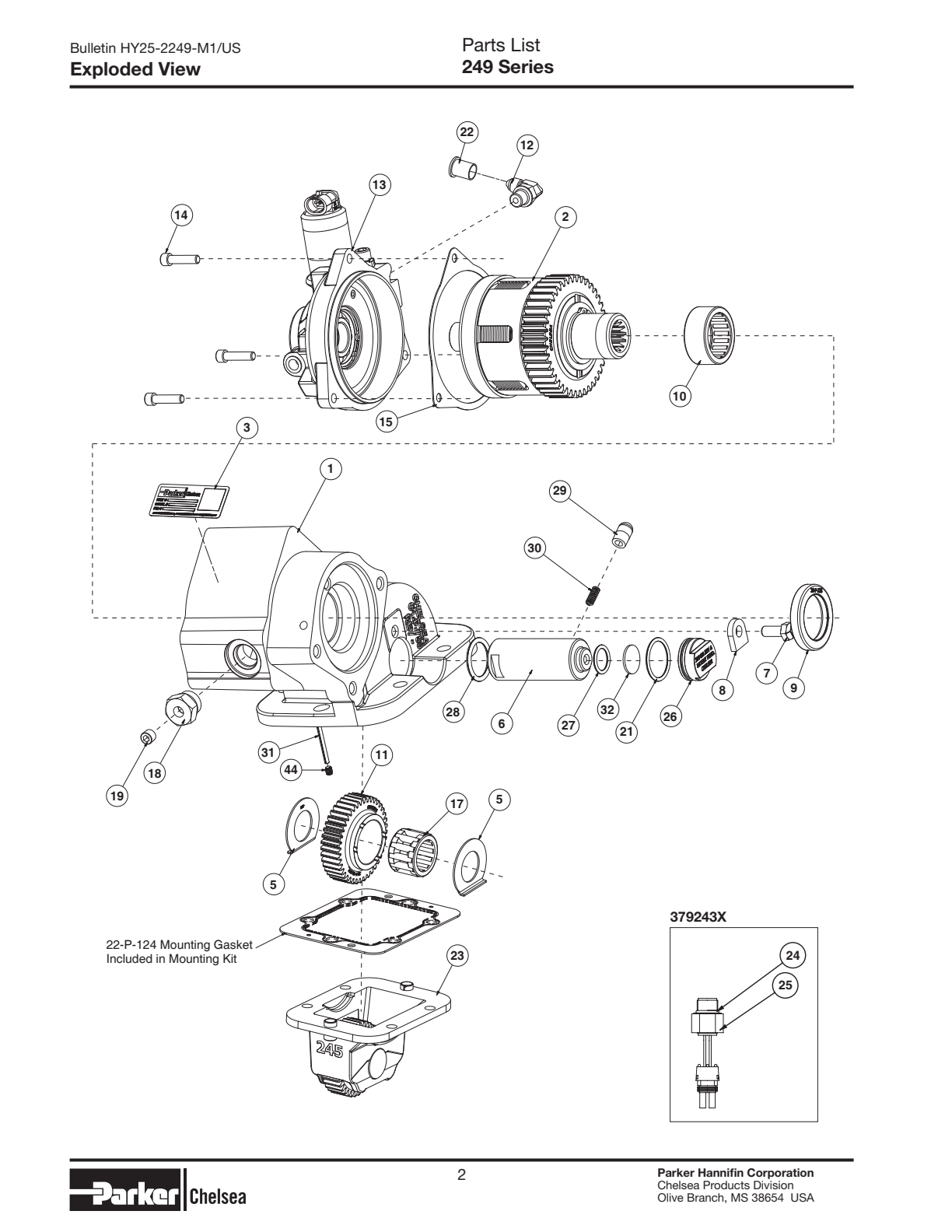

Parts List Bill of Materials 249 Series
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 1P759 | Housing (3 Arrangement) (w/5/16 Bearing Cap Bolts) | 1 | $651.57 | Add to Cart | |
| 3 | 68P511 | Adhesive Label | 1 | — | Call for availability | |
| 5 | 31P155 | Washer Thrust (1 .280 " X 2 .300 " X .064 ") | 2 | $5.03 | Add to Cart | |
| 6 | 9P128 | Shaft Idler (1 .260 ") | 1 | $112.20 | Add to Cart | |
| 7 | 3784308 | Hex Head Cap Screw (.312 " -18 X .750 ") | 1 | $2.06 | Add to Cart | |
| 8 | 27P9 | Plate Lock. | 1 | $3.19 | Add to Cart | |
| 9 | 28P225 | Oil Seal (2 .004 " X 1 .375 " X .315 ") | 1 | $19.01 | Add to Cart | |
| 10 | 561030 | Needle Roller Bearing Assy (1 .375 " X 1 .750 X .750 ") | 1 | $28.30 | Add to Cart | |
| 11 | 33P92 | Gear Reverse Idler 41T. | 1 or | $968.52 | Add to Cart | |
| 33P88 | Gear Reverse Idler 41T. | 1 | — | No longer available — call for replacement | ||
| 12 | V379486 | Elbow 90° (.438 " -20) | 1 | — | Call for availability | |
| 14 | 3794316 | Socket Head Cap Screw (.250 " -20 X 1 .000 ") | 3 | $4.02 | Add to Cart | |
| 15 | 22P123 | Gasket Valve Cap | 1 | $5.99 | Add to Cart | |
| 17 | 561029 | Needle Roller Bearing Assy (1 .260 " X 1 .811 " X 1 .260 ") | 1 | $53.91 | Add to Cart | |
| 18 | 379242 | Adapter Straight (.125 " -27 X .750 " -16) | 1 | $22.23 | Add to Cart | |
| 19 | 379231 | Plug Pipe (.125 " -27) | 1 | $1.50 | Add to Cart | |
| 50000729 | Woodruff Key (xd Output Only) | 1 | $3.11 | Add to Cart | ||
| 21 | 28P335 | O-ring (1 .112 " X .103 ") | 1 | $6.32 | Add to Cart | |
| 22 | 3795642 | Cap Thread (.438 ") | 1 | $1.23 | Add to Cart | |
| 379243X | Speed Sensor Kit | 1 | $267.63 | Add to Cart | ||
| 24 | 28P171 | O-ring (.644 " X .087 ") (w/eoc Only) | 1 | $4.88 | Add to Cart | |
| 25 | 379243 | Sensor Speed (w/eoc Only) | 1 | $229.65 | Add to Cart | |
| 26 | 380458 | Plug Idler (1 .260 ") | 1 | $73.47 | Add to Cart | |
| 27 | 28P71 | O-ring (.674 " X .103 ") | 1 | $4.88 | Add to Cart | |
| 28 | 28P239 | O-ring (1 .046 " X .139 ") | 1 | $6.64 | Add to Cart | |
| 29 | 63P16 | Poppet Shifter | 1 | $9.26 | Add to Cart | |
| 30 | 37P73 | Spring (.231 " X .716 ") | 1 | $6.86 | Add to Cart | |
| 31 | 50059516 | Slotted Pin Spring (.125 " X 1 .250 ") | 1 | $1.18 | Add to Cart | |
| 32 | 31P140 | Washer Thrust (.880 " X .030 ") | 1 | $7.72 | Add to Cart | |
| 44 | 3785413 | Socket Head Setscrew (10-24 .250 ") | 1 | — | Call for availability | |
| 22P124 | Mounting Gasket | 1 | $22.94 | Add to Cart | ||
| 379688 | Spline Lube | 1 | $8.98 | Add to Cart | ||
| 3292481X | Gasket & Seal Kit Installation Kits | $86.84 | Add to Cart | |||
| 3292485X | Installation & Label Kit | 1 | $119.84 | Add to Cart | ||
| 329650X | Speed Limiter Assemby | 1 | $1,358.05 | Add to Cart | ||
| 329651X | Installation & Mounting Kit (non-eoc) (b Shift Option) (f Mount) | 1 | $667.18 | Add to Cart | ||
| 329652X | Installation & Mounting Kit (eoc) (k Shift Option) (f Mount) | 1 | $1,006.93 | Add to Cart | ||
| 3296532X | Installation & Mounting Kit (gas) (k Shift Option) (h Mount) | 1 | $562.19 | Add to Cart | ||
| 329804X | Installation & Mounting Kit (non-eoc) (b Shift Option) (g Mount) | 1 | $1,263.09 | Add to Cart | ||
| 329902X | Installation & Mounting Kit (non-eoc) (b Shift Option) (h Mount) | 1 | $800.66 | Add to Cart | ||
| 329948X | Installation & Mounting Kit (less Wire) (e Shift Option) (x Mount) | 1 | $142.91 | Add to Cart | ||
| 329949X | Installation & Mounting Kit (less Wire) (e Shift Option) (h Mount) Service Kits | 1 | — | No longer available — call for replacement | ||
| 3292482X | Bearing Kit | $223.61 | Add to Cart | |||
| 3292483X | Clutch Repair Kit | $154.18 | Add to Cart | |||
| 3292484X | Complete Rebuild Kit W/o Output Gear 249 Only (includes 329248-1X, -2X, -3X) - | $412.83 | Add to Cart | |||
| 3292488X | Complete Rebuild Kit W/output Gear 249 Only - | $661.04 | Add to Cart | |||
| 3293765X | Soft Goods Service Kit (CGP-P11 Pump) | $152.54 | Add to Cart |
Shift Options 249 Series Valve Cap Assembly 329614X Prior to April 1 2015
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 13 | 329614X | Valve Cap Assembly | $646.80 | Add to Cart | ||
| 21P720 | Valve Cap | 1 | — | No longer available — call for replacement | ||
| 28P119 | Oil Seal (1 .379 " X .875 " X .250 ") | 1 | $26.61 | Add to Cart | ||
| 378811 | Seal Backup Plate | 1 | $5.21 | Add to Cart | ||
| 378849 | Lockring | 1 | $2.12 | Add to Cart | ||
| 38012312 | 12-volt Cartridge Valve Non Regulating | 1 | $222.19 | Add to Cart | ||
| 3784474 | Socket Head Cap Screw (.312 " -18 X .750 ") | 1 | $1.78 | Add to Cart | ||
| 5008975 | Shipping Plug | 1 | — | Call for availability | ||
| 379484 | O-ring Plug Boss (.438 " -20) | 1 | $6.85 | Add to Cart | ||
| 561031 | Ball Bearing (.984 " X 1 .850 " X .472 ") Hold Down Clamp 380124 - | 1 | $27.59 | Add to Cart |
Shift Options 249 Series Valve Cap Assembly 329850X After April 1 2015
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 13 | 329850X | Valve Cap Assembly | $646.80 | Add to Cart | ||
| 21P848 | Valve Cap | 1 | $238.47 | Add to Cart | ||
| 28P119 | Oil Seal (1 .379 " X .875 " X .250 ") | 1 | $26.61 | Add to Cart | ||
| 378811 | Seal Backup Plate | 1 | $5.21 | Add to Cart | ||
| 378849 | Lockring | 1 | $2.12 | Add to Cart | ||
| 38012312 | 12-volt Cartridge Valve Non Regulating | 1 | $222.19 | Add to Cart | ||
| 3784474 | Socket Head Cap Screw (.312 " -18 X .750 ") | 1 | $1.78 | Add to Cart | ||
| 5008975 | Shipping Plug | 1 | — | Call for availability | ||
| 379484 | O-ring Plug Boss (.438 " -20) | 1 | $6.85 | Add to Cart | ||
| 561071 | Ball Bearing (.875 " X 1 .875 " X .375 ") | 1 | $27.59 | Add to Cart | ||
| 379464 | Internal Lockring 1 .875 " (see 379462) Hold Down Clamp 380124 - | 1 | $3.79 | Add to Cart |

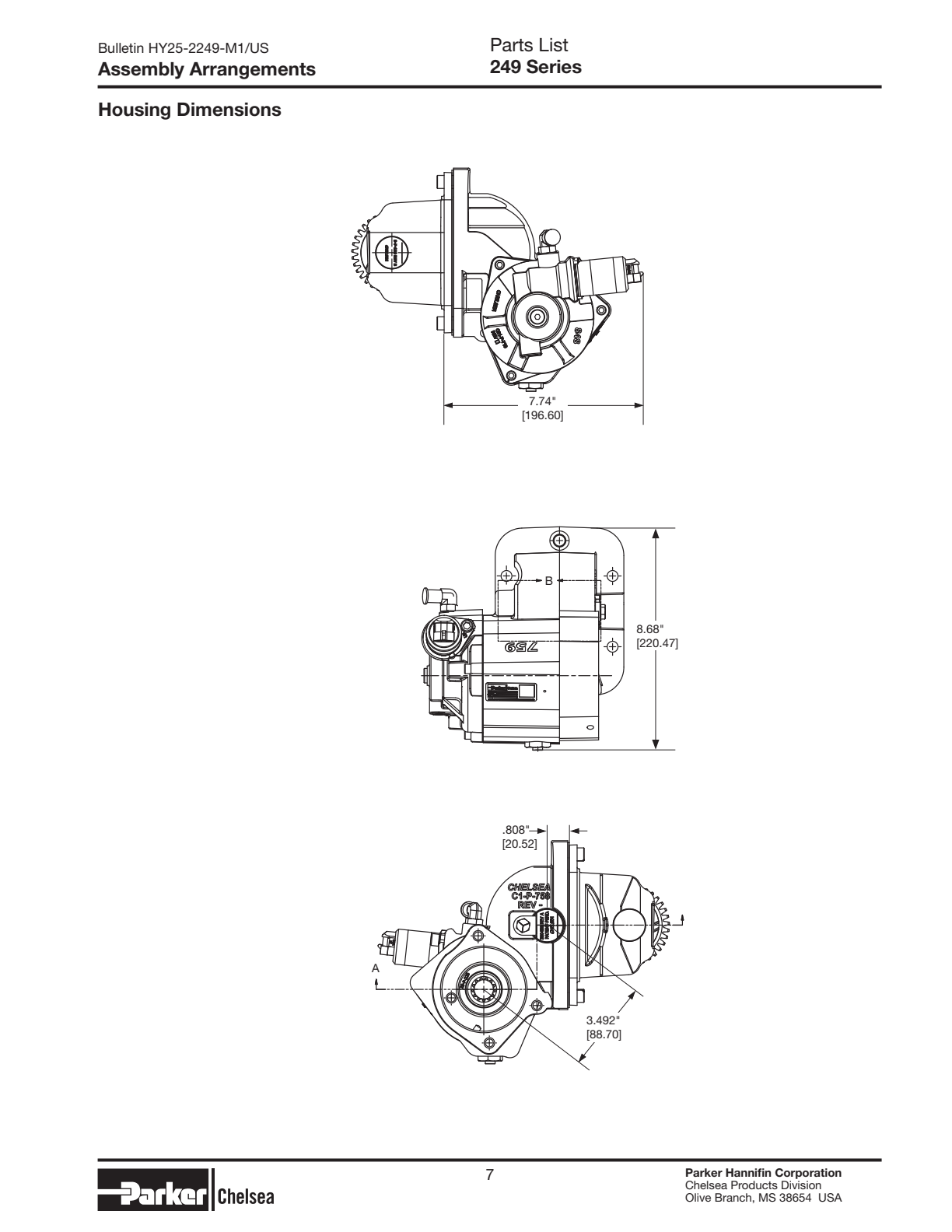

Output Options 249 Series Drive Shaft & Clutch Assembly 330030-*X, v329851 *X
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 3300301X | Drive Shaft & Clutch Assy (xd Output) (v329851 -1X) | $1,871.12 | Add to Cart | |||
| 3300302X | Drive Shaft & Clutch Assy (xp Output) (v329851 -2X) | $1,871.12 | Add to Cart | |||
| 3300303X | Drive Shaft & Clutch Assy (ad Output) (v329851 -3X) | $1,871.12 | Add to Cart | |||
| 3300304X | Drive Shaft & Clutch Assy (xe Output) (v329851 -4X) | $1,871.12 | Add to Cart | |||
| 3300305X | Drive Shaft & Clutch Assy (sd Output) (v329851 -5X) | $1,210.36 | Add to Cart | |||
| 3P1150 | Shaft (xd Output 1 .250 " Keyed) | 1 or | $398.72 | Add to Cart | ||
| 3P1151 | Shaft (xp Output 7/8 " 13T) | 1 or | $497.21 | Add to Cart | ||
| 3P1152 | Shaft (ad Output 3/4 " 11T) | 1 or | $516.29 | Add to Cart | ||
| 3P1153 | Shaft (xe Output 5/8 " 9T) | 1 or | $497.21 | Add to Cart | ||
| 3P1187 | Shaft (sd Output 1 .250 " Keyed W/smart Start) | 1 | $773.52 | Add to Cart | ||
| 5 | 37P56 | Spring (1 .750 " X 1 .510 ") | 1 | $9.77 | Add to Cart | |
| 6 | 380061 | Bell Gear 42T | 1 | $139.69 | Add to Cart | |
| 7 | 380062 | Cylinder Clutch | 1 | $69.80 | Add to Cart | |
| 8 | 380063 | Piston Clutch | 1 | $92.57 | Add to Cart | |
| 9 | 379693 | Lockring | 1 | $4.45 | Add to Cart | |
| 2P994 | Output Gear 42T. | 1 or | $635.37 | Add to Cart | ||
| V2P861 | Output Gear 42T. | 1 | — | Call for availability | ||
| 11 | 378576 | Lockring | 1 | $3.16 | Add to Cart | |
| 12 | 561032 | Plain Bearing (1 .378 " X 1 .535 " X 1 .180 ") | 1 | $28.33 | Add to Cart | |
| 13 | 31P90 | Washer Thrust (1 .382 " X 2 .042 " X .062 ") | 1 | $9.04 | Add to Cart | |
| 15 | 28P288 | O-ring (3 .234 " X .139 ") | 1 | $14.27 | Add to Cart | |
| 16 | 28P289 | O-ring (.864 " X .070 ") | 2 | $3.01 | Add to Cart | |
| 329726X | Gear And Plates Kit (includes Items 17-1 ,17-2 And 17-3) , | 1 | $203.96 | Add to Cart | ||
| 2P860 | Clutch Hub 29T | 1 | — | Call for availability | ||
| 379691 | Disc Friction | 9 | $25.49 | Add to Cart | ||
| 380060 | Clutch Plate Chelsea Suggested List Price | 8 | $6.90 | Add to Cart |
Output Options 249/249V Series Adapter Assembly 330013X, V 329901X
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 42P245 | Housing Adapter | 1 | $351.81 | Add to Cart | |
| 2 | 9P100 | Idler Shaft (1 .260 ") | 1 | $76.07 | Add to Cart | |
| 3 | 5P1669 | Input Gear 36T | 1 or | $554.61 | Add to Cart | |
| V5P1555 | Input Gear 35T | 1 | — | Call for availability | ||
| 4 | 35P155 | Thrust Washer (1 .280 " X 2 .300 " X .064 ") | 2 | — | Call for availability | |
| 5 | 561029 | Needle Roller Bearing Assy (1 .260 " X 1 .811 " X 1 .260 ") | 1 | $53.91 | Add to Cart | |
| 6 | 385078 | Bushing Dowel (10 .870 " X 13 .010 " X 20 .000 ") | 2 | $5.29 | Add to Cart | |
| 7 | 3794313 | Socket Head Cap Screw (.250 " -20 X .625 ") | 1 | $3.39 | Add to Cart | |
| 8 | 28P336 | O-ring (1 .171 " X .139 ") | 1 | $13.66 | Add to Cart | |
| 9 | 28P337 | O-ring (1 .171 " X .139 ") (modified) Chelsea Suggested List Price | 1 | $18.86 | Add to Cart |

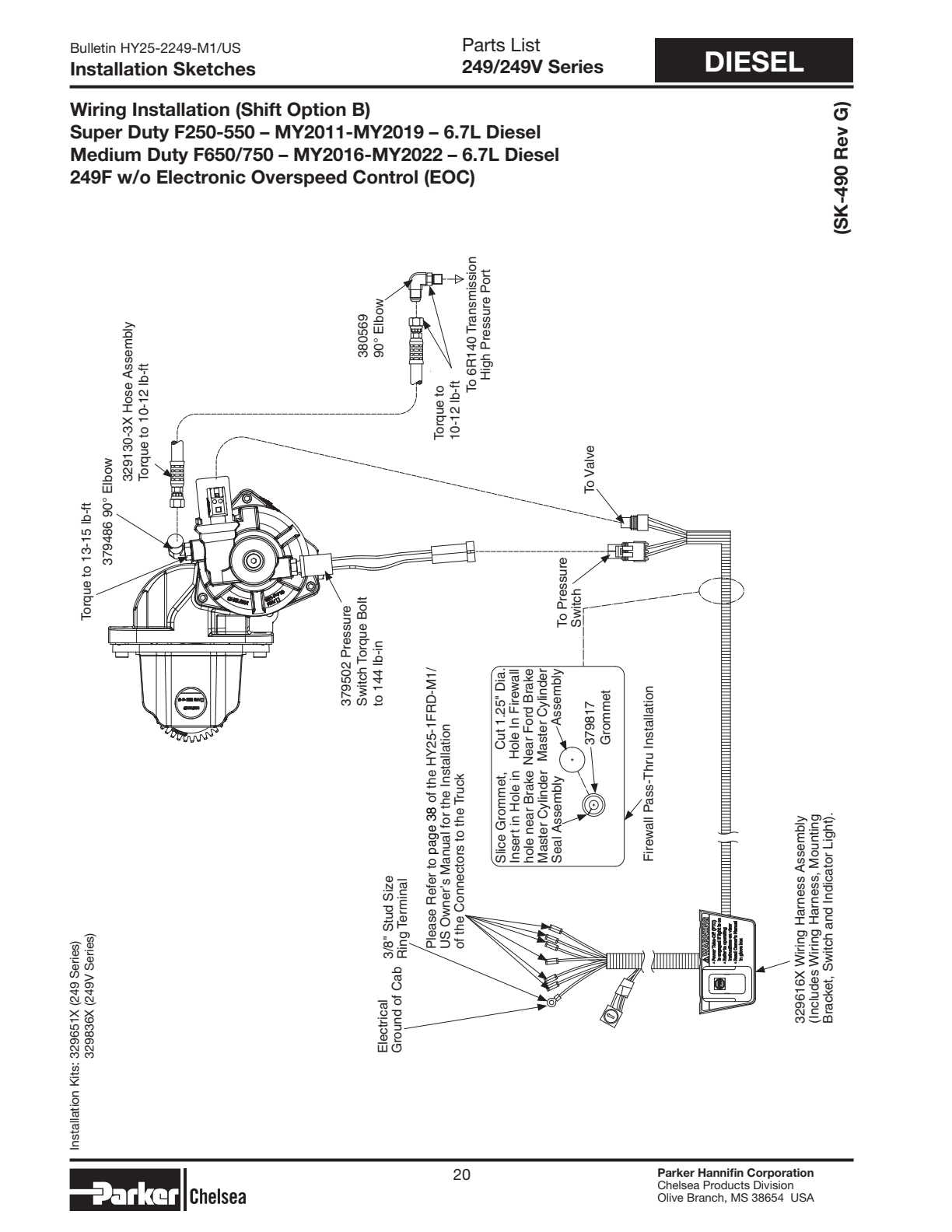

Diesel
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| F250550 | MY2017-MY2019 6 .2/6 .8L Gas – – | v | — | Call for availability |
Parts List Kits Bill of Materials 249/249V Series
| Item | Part No. | Description | Qty | Notes | Price |
|---|
