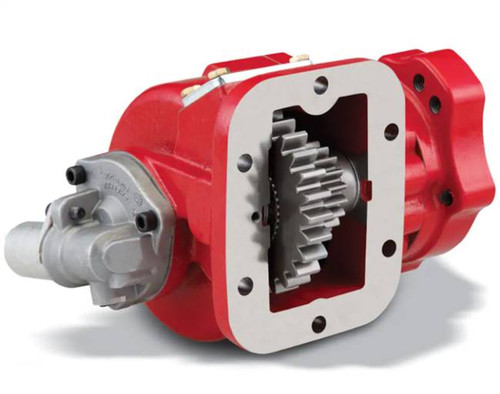

The Chelsea 442 Series Power Take-Off, part number 442XQAHX-V3GK or 442XQAHXV3GK, is a 6-bolt mount PTO designed to fit virtually all existing 6-bolt transmission applications. The cast iron housing and tapered cone bearings on the output shaft deliver an intermittent torque rating in the 201-300 lb-ft range, making it suited for light-to-medium duty vocational work including dump trucks, tow trucks, and service trucks. The 442 Series uses a wire/cable mechanical shift and features a round output shaft with a 1-1/4" key. Output flanges are rotatable for improved installation clearance, and the output shaft is greaseable for extended service life. Call us to confirm proper fit for your specific transmission and application.
Features
Chelsea 442 Series Power Take-Off, part 442XQAHX-V3GK or 442XQAHXV3GK
6-bolt mounting configuration compatible with a wide range of transmission applications
Cast iron housing with tapered cone bearings on the output shaft
Wire/cable mechanical shift type
Round output shaft with 1-1/4" key
Rotatable output flange for improved clearance during installation
Greaseable output shaft for extended service life
Tech Specs
- Mounting Type: 6-Bolt
- Shift Type: Wire/Cable, Mechanical
- Output Shaft Type: Round Shaft with 1-1/4" Key
- Housing Material: Cast Iron
- Output Bearing Type: Tapered Cone Bearings
- Series Intermittent Torque Rating: 201-300 lb-ft (check application pages for actual torque rating)
- Series Output Power: 46-55 HP
- Product Series: 442
