Chelsea PTO 442 Series Parts Manual

This Chelsea Illustrated Parts List covering the 442 PTO helps you identify the correct gear sets, shifter kits and service parts for your power take-off before you order.

Models covered442
PTO typeChelsea 400 Series
DocumentIllustrated Parts List (Chelsea)
Length45 pages
FormatPDF — view below or download free

What’s inside

  • Gear sets & output shaft assemblies
  • Shifter & air-shift control kits
  • Mounting gaskets & adapter plates
  • Housings & cover assemblies
  • Seal, bearing & snap-ring kits
  • Application & ratio reference tables

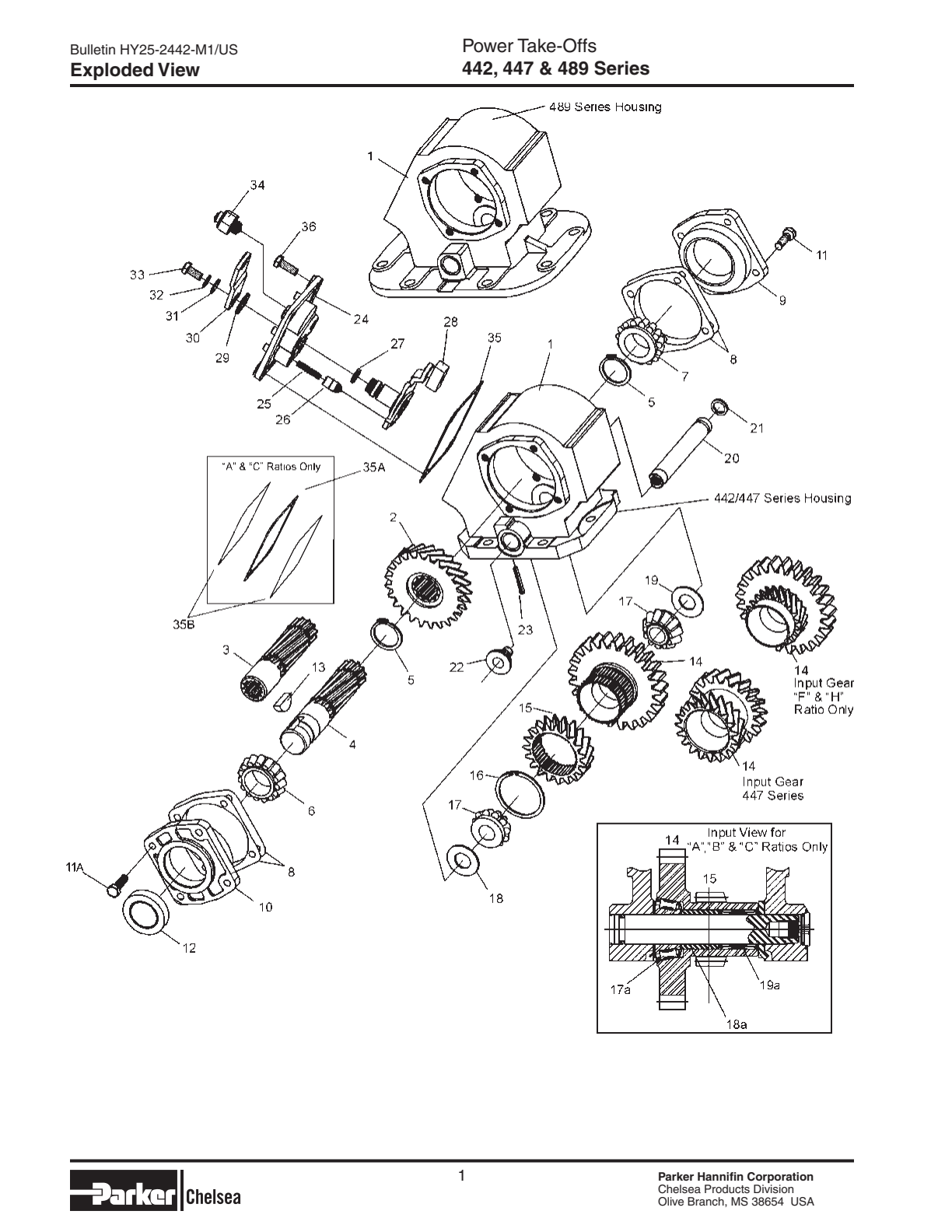

  • Exploded views with OEM part numbers

Read the manual

Download PDF

This is our interactive copy of the factory manual — part numbers are clickable and every exploded-view callout links to the part. Plain factory PDF if you prefer it.

Chelsea parts & units we stock

Pro Gear and Transmission stocks new, remanufactured and good-used parts for Chelsea PTO units:

Chelsea 442 parts list — every part number linked

This is the bill of materials from the manual above, matched against our own stock. Click any part number to see the listing and current price, or use ▶ Add to drop it straight in your cart. 1270 of the 1449 lines in this book are parts we carry.

Prices are shown on each product page so you always see the current one. Anything not linked, or marked no longer available, we can still usually source — call (877) 776-4600.

Prefer the book? Download the interactive PDF — same manual, with every part number and every exploded-view balloon clickable.

Bill of Materials — manual page 6

ItemPart numberDescriptionQtyOrder
442 489
11-P-557XHousing, Standard Mount ("X", "G" & "K") (Includes Item 23)1▶ Add
 1-P-558XHousing, Deep Mount ("Z" & "l '.') (Includes Item 23)1▶ Add
 1-P-552XHousing, Standard Mount (Includes Item 23)1▶ Add
 1-P-562XHousing, Deep Mount (Includes Item 23)1▶ Add
43-P-202Shaft, Output ("XD") Standard 1.250" Rd .313" KW 11▶ Add
 3-P-978Shaft, Output ("XD" for "B" Ratio Only ) Standard 1.250" Rd .313" KW1▶ Add
5378391Lockring (All other shifter types Except "M") 22▶ Add
6550397Bearing Cone 11▶ Add
7550532Bearing Cone 11▶ Add
 328274XBearing Cap Assembly, Close End 11▶ Add
11378447-6Capscrew, Hex Head (.312" 18 x 1.00") (Closed Cap Side) 44▶ Add
1228-P-216Oil Seal, "XD" Output 11▶ Add
13500007-29Key, Woodruff ("XD" Output) 11▶ Add
16379522Lockring 11▶ Add
17550439Bearing Cone 22▶ Add
1931-P-102Thrust Washer, Bearing 11▶ Add
209-P-88Shaft, Idler Standard 11▶ Add
 9-P-89Shaft, Idler Pressure Lube ("P") 11▶ Add
2128-P-191O-Ring 11▶ Add
22379672Plug, O-Ring w/Socket Face (NWD Plug) 11▶ Add
23500597-14Roll Pin, Deep Mount (1" Long) 11▶ Add
 500597-16Roll Pin, Standard Mount (1.125" Long) 11▶ Add
CABLE CONTROL COVER ASSEMBLIES
 329119-1XShifter Cover Ass'y, Wire Control (Ass'y 3 & 6) 11▶ Add
 329119-2XShifter Cover Ass'y, Wire Control (Ass'y 4 & 5) 11▶ Add
 329121-1XShifter Cover Ass'y, Wire Control (Ass'y 3 & 6) 11▶ Add
 329121-2XShifter Cover Ass'y, Wire Control (Ass'y 4 & 5) 11▶ Add
 329271-1XShifter Cover Assembly, Wire Control (Ass'y 3 & 6) 11▶ Add
 329271-2XShifter Cover Assembly, Wire Control (Ass'y 4 &5) 11▶ Add

Bill of Materials — manual page 7

ItemPart numberDescriptionQtyOrder
442 489
2434-P-39Cover Plate, Shifter Constant Mesh 11▶ Add
 34-P-74Cover Plate, Shifter 11▶ Add
2537-P-19Spring 11▶ Add
2663-P-16Poppet Pin 11▶ Add
2728-P-191O-Ring 11▶ Add
28329118-1XPost and Plate Assembly, (Ass'y 3 & 6) 11▶ Add
28329118-2XPost and Plate Assembly, (Ass'y 4 & 5) 11▶ Add
28329120-1XPost and Plate Assembly, (Ass'y 3 & 6) 11▶ Add
28329120-2XPost and Plate Assembly, (Ass'y 4 & 5) 11▶ Add
28329265-1XPost and Plate Assembly, (Ass'y 3 & 6) 11▶ Add
28329265-2XPost and Plate Assembly, (Ass'y 4 & 5) 11▶ Add
29378004Flat Washer 11▶ Add
3051-P-22Shifter Lever 11▶ Add
31500365-22Flat Washer 11▶ Add
32500356-10Lockwasher 11▶ Add
33500409-6Capscrew, Hex Head (.312" 24 x .625") 11▶ Add
34379639Indicator Switch, Pin Style (Normally Off) 1  no longer available — call for a replacement1
3535-P-8Gasket, Shifter Cover 11▶ Add
36378430-9Capscrew, Hex Head (.312" 18 x .875") (Wire, Electric & Air Shift) 44▶ Add
 378447-6Capscrew, Hex Head (.312" 18 x 1.000") (Wire Shift "A", "B" & "C" Ratio) 44▶ Add
LOOSE PARTS
 328170-76XMounting Kit ("X" Mounting Type)1▶ Add
 328170-77XMounting Kit ("Z" Mounting Type)1▶ Add
 328170-201X Mounting Kit ("G" Metric Mounting Type)1▶ Add
 328170-200XMounting Kit ("X" & "Z" Mounting)1▶ Add
 328346-10XCable, Wire Control ("W' Shifter) 11▶ Add
 328380XParts Bag, Wire Control ("W" Shifter) 11▶ Add
 329245XBracket Kit, Wire Control ("C" Shifter) 11▶ Add

Bill of Materials — manual page 8

ItemPart numberDescriptionQtyOrder

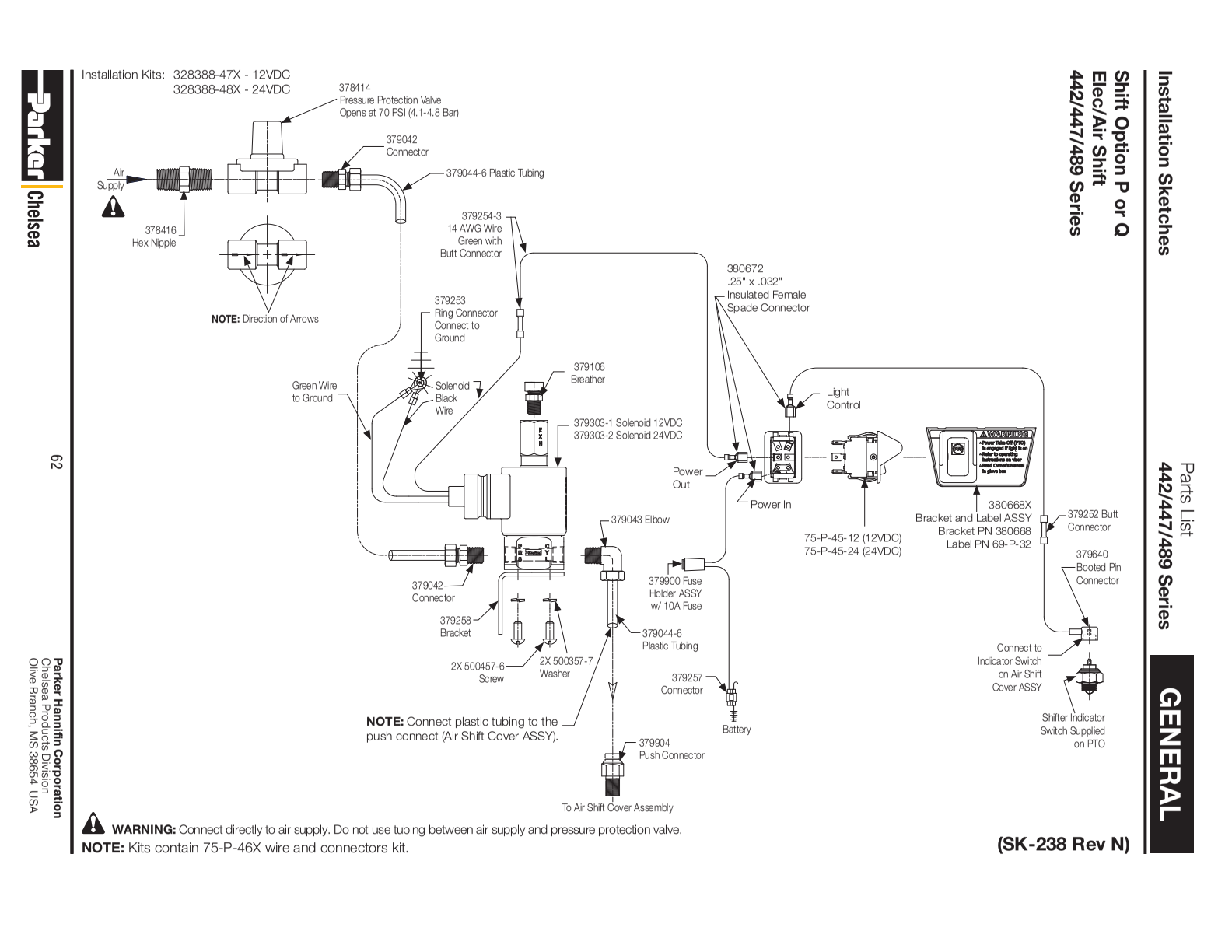

AIR SHIFT INSTALLATION KIT
 328388-37XAir Shift Installation Kit ("A" Shifter) 1  no longer available — call for a replacement1
 328388-47XAir Shift Installation Kit ("P" Shifter) 11▶ Add
 328388-48XAir Shift Installation Kit ("Q" Shifter) 11▶ Add
 328388-65XAir Shift Installation Kit (''S" Shifter) 11▶ Add
 328388-72XAir Shift Installation Kit ("T" Shifter) 11▶ Add
 328751-1XInstallation Kit ("C", "H", "W", "X", "Y") 11▶ Add
 379319Indicator Switch Booth 1  call to confirm availability1
 328948-8XGasket and Installation Instructions1▶ Add
 329166-12XElectric Shift Installation Kit 1  call to confirm availability1
 379640Booted Connector ("V" Shifter Option) 11▶ Add
 378414Pressure Protection Valve ("V" Shifter Option) 11▶ Add
 328075XPressure Lube Hose ("HVP" Input Gear Only)1▶ Add
 329202XIndicator Switch Connector Service Kit 11▶ Add
 329218XIndicator Switch Service Kit 11▶ Add
 329304XBearing Cap and Seal Assembly (Pressure Lube) 11▶ Add
 328356-67XGasket & Seal Kit. 11▶ Add
 378391Lockring2▶ Add
 328356-15XShifter Cover Seal Kit (Wire Control) 11▶ Add
 328356-69XShifter Cover Seal Kit (Wire Control "A", "B" & "C" Ratio) 11▶ Add
 328356-71XShifter Cover Seal Kit (Air Shift) 11▶ Add
 328594-13XBearing and Spacer Kit (Non-Pressure Lube) 11▶ Add
 328594-14XBearing and Spacer Kit (Pressure Lube) 11▶ Add
 328594-15XBearing and Spacer Kit (Non-Pressure Lube "A", "B" & "C" Ratio) 11▶ Add
 328594-16XBearing and Spacer Kit (Pressure Lube "A", "B" & "C" Ratio) 11▶ Add
 329260XConversion Kit, 440 to 442 Series1▶ Add
 329261XConversion Kit, 440 Deep Mount to 442 Deep Mount1▶ Add
 329262XConversion Kit, 488 to 489 Series  no longer available — call for a replacement1
 329263XConversion Kit, 488 Deep Mount to 489 Deep Mount  call to confirm availability1

Parts list (page 9) — manual page 9

ItemPart numberDescriptionQtyOrder
442 489
 329361XShifter Cover Assembly, Air Shift (Includes Items 48-57) 11▶ Add
4834-P-130Shifter Cover 11▶ Add
49378316Snap Ring 22▶ Add
50378315Cover Plug 22▶ Add
5128-P-42O-Ring 22▶ Add
5237-P-21Shifter Spring 11▶ Add
5311-P-75Shaft, Shifter 11▶ Add
 28-P-41O-Ring 11▶ Add
5532-P-180Shifter Fork 11▶ Add
56378447-4Capscrew, Socket Head w/lockpatch (.312" 18 x .750") 11▶ Add
57379639Indicator Switch (Normally OFF) 1  no longer available — call for a replacement1
58379904Push Connect, for 1/4" tubing 11▶ Add
 35-P-8Gasket, Shifter Cover 11▶ Add
 378430-8Capscrew, Hex Head (.312" 18 x .875") 44▶ Add
AIR SHIFT CONVERSION KITS
 328390-117XLever or Cable to Air 11▶ Add
 328390-119XLever or Cable to Electric/ Air, 12V 11▶ Add
 328390-120XLever or Cable to Electric/Air, 24V 11▶ Add

Kits — manual page 10

ItemPart numberDescriptionQtyOrder
442 489
 329106-39XShifter Kit (Air Shift, "A" Shift Option) 11▶ Add
 329106-43XShifter Kit (Air Shift, "P" Shift Option) 11▶ Add
 329106-45XShifter Kit (Air Shift, "Q" Shift Option) 1  no longer available — call for a replacement1
 329106-105XShifter Kit (Wire Control 3 & 6, "Q", "W", "X" Ratio; "W" Shift Option) 11▶ Add
 329106-106XShifter Kit (Wire Control 4 & 5, "Q", "W", "X" Ratio; "W" Shift Option) 11▶ Add
 329106-107XShifter Kit (Wire Control 3 & 6, "Q", "W", "X" Ratio; "X" Shift Option) 11▶ Add
 329106-10BX Shifter Kit (Wire Control 4 & 5, "Q", "W", "X" Ratio; "X" Shift Option) 1  no longer available — call for a replacement1
 329106-109XShifter Kit (Wire Control 3 & 6, "F", "L.:', "R", "S", "U" Ratio; "W" Shift Option) 11▶ Add
 329106-11ox Shifter Kit (Wire Control 4 & 5, "F", "L.:', "R", "S", "U" Ratio; "W" Shift Option) 1  call to confirm availability1
 329106-111X Shifter Kit (Wire Control 3 & 6, "F", "L.:', "R", "S", "U" Ratio; "X" Shift Option) 11▶ Add
 329106-112XShifter Kit (Wire Control 4 & 5, "F", "L.:', "R", "S", "U" Ratio; "X" Shift Option) 11▶ Add
 329106-135XConstant Mesh Kit 11▶ Add
 329106-143XShifter Kit (Wire Control 3 & 6, "A", "B" & "C" Ratio; "W" Shift Option) 11▶ Add
 329106-144XShifter Kit (Wire Control 4 & 5, "A", "B" & "C" Ratio; "W" Shift Option) 11▶ Add
 329106-145XShifter Kit (Wire Control 3 & 6, "A", "B" & "C" Ratio; "X" Shift Option) 1  no longer available — call for a replacement1
 329106-146XShifter Kit (Wire Control 4 & 5, "A", "B" & "C" Ratio; "X" Shift Option) 1  no longer available — call for a replacement1
 329106-153XShifter Kit ("V" Shift Option) 11▶ Add
 329143XField Conversion Kit (Shifter Shaft) 11▶ Add

Parts list (page 11) — manual page 11

ItemPart numberDescriptionQtyOrder
442 489
844-P-177Spacer, Drive Shaft. 11▶ Add
854-P-178Spacer, Drive Shaft. 11▶ Add
86378391Lockring (Shifter Type "M") 11▶ Add

Parts list (page 12) — manual page 12

ItemPart numberDescriptionQtyOrder
442 489
11378430-10Capscrew, Hex Head (.312" 18 x 1.00") 44▶ Add
873-P-857Shaft, Output ("LD" Output) 11▶ Add
 3-P-858Shaft, Output ("LA", "LB", "LC", "LE", "LF" Output) 1  no longer available — call for a replacement1
88329091XLube Pump & Bearing Cap Assembly 1  no longer available — call for a replacement1
89329092XPressure Lube Hose Assembly 11▶ Add
90500841-1Street Elbow, 90° 11▶ Add

Parts list (page 13) — manual page 13

ItemPart numberDescriptionQtyOrder
 5-P-1061Left Helix20▶ Add
 5-P-1063Left Helix  call to confirm availability25
 5-P-1064Left Helix26▶ Add
 5-P-1065Left Helix29▶ Add
 5-P-1066Left Helix  call to confirm availability32
 5-P-1067Left Helix  call to confirm availability21
 5-P-1068Left Helix  call to confirm availability25
 5-P-1069SPUR28▶ Add
 5-P-1070Left Helix26▶ Add
 5-P-1071Left Helix23▶ Add
 5-P-1072Left Helix  call to confirm availability21
 5-P-1098Left Helix  call to confirm availability28
 5-P-1150Left Helix26▶ Add
 5-P-1152Left Helix29▶ Add
 5-P-1157SPUR23▶ Add
 5-P-1235SPUR ▶ Add
 5-P-1236SPUR32▶ Add
 5-P-1237Left Helix26▶ Add
 5-P-1243Left Helix27▶ Add
 5-P-1248Left Helix20▶ Add
 5-P-1256Left Helix28▶ Add
 5-P-1257Left Helix29▶ Add
 5-P-1261Left Helix24▶ Add
 5-P-1263Left Helix22▶ Add
 5-P-1268Left Helix33▶ Add
 5-P-1310Left Helix  call to confirm availability20
 5-P-1313Left Helix  call to confirm availability19
 5-P-1316Left Helix25▶ Add
 5-P-1319Left Helix23▶ Add
 5-P-1341Left Helix  call to confirm availability41
 5-P-1343Left Helix32▶ Add
 5-P-1405Left Helix  call to confirm availability33
 5-P-1407Left Helix  call to confirm availability29
 5-P-1383Left Helix27▶ Add
 5-P-1411Left Helix26▶ Add
 5-P-1279SPUR 1914▶ Add
 5-P-1280SPUR 2214▶ Add
 5-P-1282Left Helix 21  call to confirm availability14
 5-P-1283Left Helix 2114▶ Add
 5-P-1284SPUR 2314▶ Add
 5-P-1285Left Helix 2214▶ Add
 5-P-1366Left Helix 27  call to confirm availability14
 5-P-1358ISPUR I 24  call to confirm availability14
 5-P-1418SPUR 2214▶ Add
 5-P-1286SPUR 1917▶ Add
 5-P-1287SPUR 2217▶ Add
 5-P-1368Left Helix 27  call to confirm availability17
 5-P-1289Left Helix 2117▶ Add
 5-P-1290Left Helix 2117▶ Add
 5-P-1291SPUR 2317▶ Add
 5-P-1292Left Helix 2217▶ Add
 5-P-1076SPUR 1921▶ Add
 5-P-1077SPUR 2221▶ Add
 5-P-1079Left Helix 2121▶ Add

Bill of Materials — manual page 19

ItemPart numberDescriptionQtyOrder
 28-P-216Oil Seal1▶ Add
 239102XBearing Cap Ass'y (21-P-532)  call to confirm availability1
 378447-8Socket Head Capscrew (.312" 18 x 1.5")4▶ Add
 28-P-219Oil Seal1▶ Add
 329088XBearing Cap Ass'y (21-P-522)1▶ Add
 378447-10Socket Head Capscrew (.312" 18 x 2.0")4▶ Add
 3-P-979Output Shaft (''B" Ratio Only)1▶ Add
 28-P-216Oil Seal1▶ Add
 328989XBearing Cap Ass'y (21-P-472)1▶ Add
 378447-8Socket Head Capscrew (.312" 18 x 1.5")4▶ Add
 28-P-275Oil Seal1▶ Add
 329052XBearing Cap Ass'y (21-P-508)1▶ Add
 378447-11Socket Head Capscrew (.312" 18 x 2.5")4▶ Add
 28-P-219Oil Seal1▶ Add
 329088XBearing Cap Ass'y (21-P-522)1▶ Add
 378447-10Socket Head Capscrew (.312" 18 x 2.0")4▶ Add
 3-P-981X"GE" Shaft Assembly 1 or ▶ Add
 3-P-921X"GF" Shaft Assemblies 1 or ▶ Add
 3-P-933X"GQ", "GK", "GP" Shaft Assemblies 1 or ▶ Add
 3-P-938X"GY" Shaft Assemblies 1 or ▶ Add
 3-P-939X"GZ" Shaft Assemblies 1 or ▶ Add
 3-P-941X"GH", "GJ" Shaft Assemblies1▶ Add
 500168-2Lube Fitting (Zerk)1▶ Add
 379819Grease Fitting Cap1▶ Add
 379688Coupling Lube Pack (5/8 fl.oz)1▶ Add
 28-P-268Rear Bearing Cap Shaft Oil Seal1▶ Add
 328273XRear Bearing Cap Assembly1▶ Add
 378447-6Rear Bearing Cap Hex Head Capscrew (.312" 18" x 1.0")4▶ Add
 3-P-858Output Shaft ("LA", "LB", "LC", "LF")  no longer available — call for a replacement1
 329091XLube Pump & Bearing Cap Ass'y  no longer available — call for a replacement1
 329092XPressure Lube Hose Ass'y1▶ Add
 500841-1Elbow 90° Street1▶ Add
 378447-6Hex Capscrew (.312" 18 x 1.0")4▶ Add

Bill of Materials — manual page 20

ItemPart numberDescriptionQtyOrder
 28-P-216Oil Seal1▶ Add
 329195XBearing Cap Ass'y (21-P-574)1▶ Add
 21-P-661Pump Flange1▶ Add
 378447-6Socket Head Capscrew (.312" 18 x 1.0")4▶ Add
 328170-207XCapscrew Bag Kit1▶ Add
 378447-6Socket Head Capscrew3▶ Add
 28-P-219Oil Seal1▶ Add
 329264XBearing Cap Ass'y (21-P-629)1▶ Add
 21-P-661Pump Flange1▶ Add
 378447-6Socket Head Capscrew (.312" 18 x 1.0")4▶ Add
 28-P-271O-Ring1▶ Add
 3-P-980Output Shaft (''B" Ratio Only)1▶ Add
 28-P-216Oil Seal1▶ Add
 329195XBearing Cap Ass'y (21-P-574)1▶ Add
 21-P-628Pump Flange (Ship Loose w/Unit)1▶ Add
 378447-6Socket Head Capscrew4▶ Add
 328170-207XCapscrew Bag Kit1▶ Add
 378170-6Socket Head Capscrew  call to confirm availability3
 3-P-980Output Shaft (''B" Ratio Only)1▶ Add
 28-P-216Oil Seal1▶ Add
 329195XBearing Cap Ass'y (21-P-574)1▶ Add
 21-P-572Pump Flange (Ship Loose w/Unit)1▶ Add
 378447-6Socket Head Capscrew4▶ Add
 328170-207XCapscrew Bag Kit1▶ Add
 378170-6Socket Head Capscrew  call to confirm availability3
 28-P-216Oil Seal1▶ Add
 329322XBearing Cap Ass'y (21-P-640)1▶ Add
 21-P-638Pump Flange1▶ Add
 378447-6Socket Head Capscrew (.312" 18 x 1.0")4▶ Add
 328170-21ox Capscrew Bag Kit  call to confirm availability1
 378447-4Socket Head Capscrew (.312" 18 x 75")6▶ Add
 28-P-219Oil Seal1▶ Add
 329264XBearing Cap Ass'y (21-P-629)1▶ Add
 21-P-654Pump Flange1▶ Add
 378447-6Socket Head Capscrew (.312" 18 x 1.0")4▶ Add
 28-P-271O-Ring1▶ Add
 28-P-219Oil Seal1▶ Add
 329264XBearing Cap Ass'y (21-P-629)1▶ Add
 21-P-626Pump Flange1▶ Add
 378447-6Socket Head Capscrew (.312" 18 x 1.0")7▶ Add
 28-P-271O-Ring1▶ Add
 28-P-216Oil Seal1▶ Add
 329322XBearing Cap Ass'y (21-P-640)1▶ Add
 21-P-638Pump Flange (Ship Loose w/Unit)1▶ Add
 378447-6Socket Head Capscrew4▶ Add
 328170-21ox Capscrew Bag Kit  call to confirm availability1
 378446-4Socket Head Capscrew6▶ Add

Bill of Materials — manual page 21

ItemPart numberDescriptionQtyOrder
 21-P-625Pump Flange1▶ Add
 329356XBearing Cap Ass'y (21-P-532)1▶ Add
 378447-8Socket Head Capscrew (.312" 18 x 1.5")4▶ Add
 329355-1XStandard Loose Parts Kit1▶ Add
 379740-6Socket Head Capscrew (M10 1.5" x .984")3▶ Add
 22-P-100Gasket1▶ Add
 22-P-84Gasket1▶ Add
 379231Pipe Plug2▶ Add
 28-P-216Oil Seal1▶ Add
 328328XBearing Cap Ass'y (21-P-161)1▶ Add
 378447-8Socket Head Capscrew (.312" 18 x 1.5")4▶ Add
 28-P-216Oil Seal1▶ Add
 328580XBearing Cap Ass'y (21-P-259)1▶ Add
 378447-8Socket Head Capscrew (.312" 18 x 1.5")4▶ Add
 28-P-216Oil Seal1▶ Add
 328580XBearing Cap Ass'y (21-P-259)1▶ Add
 378447-8Socket Head Capscrew (.312" 18 x 1.5")4▶ Add
 3-P-979Output Shaft (''B" Ratio Only)1▶ Add
 28-P-216Oil Seal1▶ Add
 328333XBearing Cap Ass'y (21-P-424) & (28-P-216)1▶ Add
 378447-8Socket Head Capscrew (.312" 18 x 1.5")4▶ Add
 328580XBearing Cap Ass'y (21-P-259)1▶ Add
 378447-8Socket Head Capscrew (.312" 18 x 1.5")4▶ Add
 28-P-216Oil Seal1▶ Add
 328328XBearing Cap Ass'y (21-P-161)1▶ Add
 378447-8Socket Head Capscrew (.312" 18 x 1.5")4▶ Add
 3-P-979Output Shaft (''B" Ratio Only)1▶ Add
 28-P-216Oil Seal1▶ Add
 328328XBearing Cap Ass'y (21-P-161)1▶ Add
 378447-8Socket Head Capscrew (.312" 18 x 1.5")4▶ Add
 3-P-979Output Shaft (''B" Ratio Only)1▶ Add
 28-P-216Oil Seal1▶ Add
 328589XBearing Cap Ass'y (21-P-269)1▶ Add
 378447-8Socket Head Capscrew (.312" 18 x 1.5")4▶ Add
 28-P-216Oil Seal1▶ Add
 329194XBearing Cap Assembly (21-P-574)1▶ Add
 379673Hex Shoulder Screw (.312" 24)4▶ Add
 379063Flat Washer4▶ Add
 328711XPump Mounting Kit1▶ Add
 378919Washer4▶ Add
 500963-1Hex Lock Nut (.312" 24)  no longer available — call for a replacement4

Bill of Materials — manual page 22

ItemPart numberDescriptionQtyOrder
 28-P-216Oil Seal1▶ Add
 3-P-978Output Shaft ("B" Ratio Only}1▶ Add
 328273XBearing Cap Ass'y (21-P-418)1▶ Add
 378430-10Hex Capscrew (.312" 18 x 1.0")4▶ Add
 500007-29Woodruff Key1▶ Add
 379828Companion Flange1▶ Add
 378431-8Set Screw  call to confirm availability1
 378431-8Set Screw  call to confirm availability1
 28-P-216Oil Seal1▶ Add
 378430-10Hex Capscrew (.312" 18 x 1.0")4▶ Add
 379111Square Key1▶ Add
 501181Hex Locknut (1.0" -20}  no longer available — call for a replacement1
 28-P-275Oil Seal1▶ Add
 328234XBearing Cap Ass'y (21-P-614)  call to confirm availability1
 378447-6Socket Head Capscrew (.312" 18 x 1.0")4▶ Add
 3-P-979Output Shaft ("B" Ratio Only)1▶ Add
 28-P-216Oil Seal1▶ Add
 329449XBearing Cap Ass'y (21-P-692)1▶ Add
 378447-8Socket Head Capscrew (.312" 18 x 1.5") .4 ▶ Add

Parts list (page 23) — manual page 23

ItemPart numberDescriptionQtyOrder
CH CH
4421-P-557X0.793" 3.80011 ("F","H","L',"R","S","U") 3.317" ("F","H","L',"R","S","U") 6.428" 7.000" ▶ Add
4421-P-558X0.573" 3.58011 ("F","H","L',"R","S","U") 3.31711 ("F","H","L',"R","S","U") 6.207" 7.000" ▶ Add
4891-P-552X1.072" 4.07911 ("F","H","L',"R","S","U") 3.31711 ("F","H","L',"R","S",11U") 6.708" 8.500" ▶ Add
4891-P-562X0.930" 3.93711 ("F","H","L',"R","S","U") 3.31711 ("F", "H" ,"L' ,"R", "S",UU") 6.566" 8.500" ▶ Add

Bill of Materials — manual page 27

ItemPart numberDescriptionQtyOrder
 329091XLube Pump & Bearing Cap Assembly  no longer available — call for a replacement
 329106-39XAir Shift (Ass'y 3&6) ▶ Add
 28-P-249O-Ring2▶ Add
 329361XShifter Cover1▶ Add
 3-P-881Ge rotor Shatt1▶ Add
 378430-9Hex Capscrew4▶ Add
 329093XPump Adapter  no longer available — call for a replacement1
 35-P-8Shifter Cover1▶ Add
 21-P-530Pump Adapter  call to confirm availability1
 328388-98XKit Installation1▶ Add
 550221Bearing Tab1▶ Add
 378429-11Hex Capscrew3▶ Add
 329106-43XElectric/ Air 12V ▶ Add
 379173Plate-Plump1▶ Add
 328388-47X12V Electric1▶ Add
 379175Retaining1▶ Add
 329361XShifter Cover1▶ Add
 379176Pump-Gerotor1▶ Add
 378430-9Hex Capscrew4▶ Add
 379525Pump Cap1▶ Add
 35-P-8Shifter Cover1▶ Add
 500037-7Dowel Pin  no longer available — call for a replacement2
 500566-3Ball1▶ Add
 329106-45XElectric/Air 24V  no longer available — call for a replacement
 500897-11Cap Plug  no longer available — call for a replacement1
 328388-48X24V Electric Over Air1▶ Add
 500897-8Shipping Plug  call to confirm availability1
 329361XShifter Cover1▶ Add
 378430-9Hex Capscrew4▶ Add
 329092XPressure Lube Hose Assembly ▶ Add
 35-P-8Shifter Cover1▶ Add
 379280Fitting Swivel1▶ Add
 385004Female JIC1▶ Add
 329106-105XCable Shift ("Q", "W', & "X") ▶ Add
 385003Male NPTF1▶ Add
 328380XMounting Parts Kit1▶ Add
 385006Hose Bulk1▶ Add
 329119-1XCable Control Cover1▶ Add
 35-P-8Shifter Cover1▶ Add
 329096-1XField Conversion Kit  call to confirm availability
 378430-9Hex Capscrew4▶ Add
 378441-1010 Ft. Wire1▶ Add
 28-P-216Oil Seal1▶ Add
 378502Knob1▶ Add
 3-P-857Output Shatt1▶ Add
 328751-1XInstall Kit1▶ Add
 329091XLube Pump  no longer available — call for a replacement1
 329092XPressure Lever1▶ Add
 329106-106XCable Shift ("Q", "W', & "X") ▶ Add
 378391Lock/Retaining2▶ Add
 328751-1XInstall Kit1▶ Add
 379534Inst Instruction1▶ Add
 328380XMounting Parts Kit1▶ Add
 500841-1Elbow 90°1▶ Add
 329119-2XCable Control Cover1▶ Add
 28-P-190O-Ring .731▶ Add
 35-P-8Shifter Cover1▶ Add
 28-P-191O-Ring .541▶ Add
 378430-9Hex Capscrew4▶ Add
 9-P-76Idler Shatt  call to confirm availability1
 378441-10Wire1▶ Add
 378422Drive Screw2▶ Add
 378502Knob1▶ Add
 379646Installation  call to confirm availability1
 329106-107XWire Shift Kit Less ▶ Add
 328751-1XInstall Kit1▶ Add
 329119-1XCable Control Cover1▶ Add
 68-P-2Name Plate1▶ Add
 35-P-8Shifter Cover1▶ Add
 378430-9Hex Capscrew4▶ Add
 329097-1XField Conversion Kit  call to confirm availability
 329106-108XWire Shift Kit Less ▶ Add
 378391Lock/Retaining2▶ Add
 328751-1XInstall Kit1▶ Add
 500841-1Elbow 90°1▶ Add
 329119-2XCable Control Cover1▶ Add
 379534Inst Instruction1▶ Add
 35-P-8Shifter Cover1▶ Add
 379646Installation  call to confirm availability1
 378430-9Hex Capscrew4▶ Add
 378422Drive Screw2▶ Add
 329092XPressure Lever1▶ Add
 329091XLube Pump  no longer available — call for a replacement1
 328751-1XInstall Kit1▶ Add
 28-P-191O-Ring .541▶ Add
 328380XMounting Parts Kit1▶ Add
 28-P-190O-Ring 731▶ Add
 329121-1XCable Control Cover1▶ Add
 28-P-216Oil Seal1▶ Add
 35-P-8Shifter Cover1▶ Add
 9-P-76Idler Shatt  call to confirm availability1
 378430-9Hex Capscrew4▶ Add
 3-P-858Pump Shatt  no longer available — call for a replacement1
 378441-1010 Ft. Wire1▶ Add
 378502Knob1▶ Add
 68-P-2Name Plate1▶ Add

Bill of Materials — manual page 28

ItemPart numberDescriptionQtyOrder
 329106-153XShifter Kit ''V" Option ▶ Add
 328380XMounting Parts Kit1▶ Add
 379640Booted Connector1▶ Add
 329121-2XCable Control Cover1▶ Add
 378414Pressure Protection Valve1▶ Add
 35-P-8Shifter Cover1▶ Add
 35-P-8Shifter Cover1▶ Add
 378430-9Hex Capscrew4▶ Add
 329361XShifter Cover1▶ Add
 378441-1010 Ft. Wire1▶ Add
 378430-9Hex Capscrew4▶ Add
 378502Knob1▶ Add
 328751-1XInstall Kit1▶ Add
 329106-111XCable Shift, Less Cable ▶ Add
 329118-1XPost and Plate Assembly, (Ass'y 3 & 6) ▶ Add
 328751-1XInstall Kit1▶ Add
 62-P-45Shifter Plate  call to confirm availability1
 329121-1XCable Control Cover1▶ Add
 63-P-20Shifter Pin  call to confirm availability1
 35-P-8Shifter Cover1▶ Add
 64-P-1Shifter Shoe  call to confirm availability1
 378430-9Hex Capscrew4▶ Add
 378244Shifter Post  call to confirm availability1
 378246Lockring  call to confirm availability1
 329106-112XCable Shift, Less Cable ▶ Add
 378313Litter Plate  call to confirm availability1
 328751-1XInstall Kit1▶ Add
 329121-2XCable Control Cover1▶ Add
 329118-2XPost and Plate Assembly, (Ass'y 4 & 5) ▶ Add
 35-P-8Shifter Cover1▶ Add
 62-P-46Shifter Plate  call to confirm availability1
 378430-9Hex Capscrew4▶ Add
 63-P-20Shifter Pin  call to confirm availability1
 64-P-1Shifter Shoe  call to confirm availability1
 378244Shifter Post  call to confirm availability1
 329106-135XConstant Mesh Kit ▶ Add
 378246Lockring  call to confirm availability1
 34-P-39Cover Plate1▶ Add
 378313Litter Plate  call to confirm availability1
 35-P-8Shifter Cover1▶ Add
 378430-6Hex Capscrew4▶ Add
 4-P-178Spacer Drive Shatt1▶ Add
 329119-1XShifter Cover Ass'y, Wire Control (Ass'y 3 & 6) ▶ Add
 4-P-177Spacer Drive Shatt1▶ Add
 28-P-191O-Ring1▶ Add
 34-P-74Shifter Cover1▶ Add
 329106-143XShifter Kit ▶ Add
 37-P-19Spring1▶ Add
 378430-10Hex Capscrew4▶ Add
 51-P-22Shifter Lever1▶ Add
 378441-1010 Ft. Wire1▶ Add
 63-P-16Poppet Pin1▶ Add
 5-A-188Use 5-A-181▶ Add
 329118-1XShifter Plate Ass'y1▶ Add
 329271-1XCover Ass'y1▶ Add
 378004Flat Washer1▶ Add
 328380XMounting Parts Kit1▶ Add
 379639Indicator Switch  no longer available — call for a replacement1
 378502Knob1▶ Add
 500356-10Lock Washer1▶ Add
 328751-1XInstall Kit1▶ Add
 500365-22Flat Washer1▶ Add
 35-P-8Shifter Cover2▶ Add
 500409-6Hex. HD. Capscrew .312" 24 x .625"1▶ Add
 329106-144XShifter Kit ▶ Add
 329119-2XShifter Cover Ass'y, Wire Control (Ass'y 4 & 5) ▶ Add
 35-P-8Shifter Cover2▶ Add
 28-P-191O-Ring1▶ Add
 328751-1XInstall Kit1▶ Add
 34-P-74Shifter Cover1▶ Add
 329271-2XCover Ass'y1▶ Add
 37-P-19Spring1▶ Add
 378430-10Hex Capscrew4▶ Add
 51-P-22Shifter Lever1▶ Add
 5-A-188Use 5-A-181▶ Add
 63-P-16Poppet Pin1▶ Add
 378441-1010 Ft. Wire1▶ Add
 329118-2XShifter Plate Ass'y1▶ Add
 378502Knob1▶ Add
 378004Flat Washer1▶ Add
 328380XMounting Parts Kit1▶ Add
 379639Indicator Switch  no longer available — call for a replacement1
 500356-10Lock Washer1▶ Add
 329106-145XShifter Kit  no longer available — call for a replacement
 500365-22Flat Washer1▶ Add
 378430-10Hex Capscrew1▶ Add
 500409-6Hex. HD. Capscrew .312" 24 x .625"1▶ Add
 5-A-188Use 5-A-181▶ Add
 329271-1XCover Ass'y1▶ Add
 328751-1XInstall Kit1▶ Add
 329120-1XPost and Plate Assembly, (Ass'y 3 & 6) ▶ Add
 35-P-8Shifter Cover2▶ Add
 62-P-45Shifter Plate  call to confirm availability1
 63-P-21Shifter Pin  call to confirm availability1
 329106-146XShifter Kit  no longer available — call for a replacement
 64-P-1Shifter Shoe  call to confirm availability1
 35-P-8Shifter Cover2▶ Add
 378244Shifter Post  call to confirm availability1
 329271-2XCover Ass'y1▶ Add
 378246Lockring  call to confirm availability1
 5-A-188Use 5-A-181▶ Add
 378313Litter Plate  call to confirm availability1
 378430-10Hex Capscrew4▶ Add
 328751-1XInstall Kit1▶ Add

Bill of Materials — manual page 29

ItemPart numberDescriptionQtyOrder
 329120-2XPost and Plate Assembly, (Ass'y 4 & 5) ▶ Add
 329151-2XShifter Cover Assembly ▶ Add
 62-P-46Shifter Plate  call to confirm availability1
 63-P-21Shifter Pin  call to confirm availability1
 28-P-191O-Ring1▶ Add
 64-P-1Shifter Shoe  call to confirm availability1
 34-P-74Shifter Cover1▶ Add
 378244Shifter Post  call to confirm availability1
 37-P-19Spring1▶ Add
 378246Lockring  call to confirm availability1
 51-P-22Shifter Lever1▶ Add
 378313Lifter Plate  call to confirm availability1
 63-P-16Poppet Pin1▶ Add
 329118-2XShifter Plate Ass'y1▶ Add
 378004Flat Washer1▶ Add
 329121-1XShifter Cover Ass'y, Wire Control (Ass'y 3 & 6) ▶ Add
 379652Indicator Switch Norm. "On"1▶ Add
 28-P-191O-Ring1▶ Add
 500356-10Lock Washer1▶ Add
 34-P-74Shifter Cover1▶ Add
 500365-22Flat Washer1▶ Add
 37-P-19Spring1▶ Add
 500409-6Hex. HD. Capscrew .312" 24 x .625"1▶ Add
 51-P-22Shifter Lever1▶ Add
 63-P-16Poppet Pin1▶ Add
 329120-1XShifter Plate Ass'y1▶ Add
 329152-1XShifter Cover Assembly ▶ Add
 378004Flat Washer1▶ Add
 379639Indicator Switch  no longer available — call for a replacement1
 28-P-191O-Ring1▶ Add
 500356-10Lock Washer1▶ Add
 34-P-74Shifter Cover1▶ Add
 500365-22Flat Washer1▶ Add
 37-P-19Spring1▶ Add
 500409-6Hex. HD. Capscrew .312" 24 x .625"1▶ Add
 51-P-22Shifter Lever1▶ Add
 63-P-16Poppet Pin1▶ Add
 329121-2XShifter Cover Ass'y, Wire Control (Ass'y 4 & 5) ▶ Add
 329120-1XShifter Plate Ass'y1▶ Add
 28-P-191O-Ring1▶ Add
 378004Flat Washer1▶ Add
 34-P-74Shifter Cover1▶ Add
 379652Indicator Switch Norm. "On"1▶ Add
 37-P-19Spring1▶ Add
 500356-10Lock Washer1▶ Add
 51-P-22Shifter Lever1▶ Add
 500365-22Flat Washer1▶ Add
 63-P-16Poppet Pin1▶ Add
 500409-6Hex. HD. Capscrew .312" 24 x .625"1▶ Add
 329120-2XShifter Plate Ass'y1▶ Add
 378004Flat Washer1▶ Add
 329152-2XShifter Cover Assembly ▶ Add
 379639Indicator Switch  no longer available — call for a replacement1
 500356-10Lock Washer1▶ Add
 28-P-191O-Ring1▶ Add
 500365-22Flat Washer1▶ Add
 34-P-74Shifter Cover1▶ Add
 500409-6Hex. HD. Capscrew .312" 24 x .625"1▶ Add
 37-P-19Spring1▶ Add
 51-P-22Shifter Lever1▶ Add
 329143XDust Cover Kit ▶ Add
 63-P-16Poppet Pin1▶ Add
 35-P-14Gasket1▶ Add
 329120-2XShifter Plate Ass'y1▶ Add
 378430-4Capscrew Hex Head2▶ Add
 378004Flat Washer1▶ Add
 65-P-23Cover Shift1▶ Add
 379652Indicator Switch Norm. "On"1▶ Add
 500356-10Lock Washer1▶ Add
 500365-22Flat Washer1▶ Add
 329151-1XShifter Cover Assembly ▶ Add
 500409-6Hex. HD. Capscrew .312" 24 x .625"1▶ Add
 28-P-191O-Ring1▶ Add
 329166-12XElectric Shift Installation Kit  call to confirm availability
 34-P-74Shifter Cover1▶ Add
 329158-12XElectric Shift  call to confirm availability1
 37-P-19Spring1▶ Add
 329163-10XElectric Shift  call to confirm availability1
 51-P-22Shifter Lever1▶ Add
 379247Fuse Holder  no longer available — call for a replacement1
 63-P-16Poppet Pin1▶ Add
 379252Butt Connector2▶ Add
 329118-1XShifter Plate Ass'y1▶ Add
 379253Ring Connector1▶ Add
 378004Flat Washer1▶ Add
 379257Splice Connector1▶ Add
 379652Indicator Switch Norm. "On"1▶ Add
 379265Grommet1▶ Add
 500356-10Lock Washer1▶ Add
 379689Self Taping Screw  call to confirm availability4
 500365-22Flat Washer1▶ Add
 500357-7Lockwasher4▶ Add
 500409-6Hex. HD. Capscrew .312" 24 x .625"1▶ Add
 500376-6Nut 10-24  no longer available — call for a replacement4
 500457-6Slotted Screw4▶ Add
 379640Booted Connector1▶ Add
 379061XTie Wire  call to confirm availability1

Bill of Materials — manual page 30

ItemPart numberDescriptionQtyOrder
 329202XIndicator Switch Connector Service Kit ▶ Add
 379252Butt Connector1▶ Add
 329271-1XShifter Cover Assembly ▶ Add
 379639Switch Indicator  no longer available — call for a replacement1
 379640Booted Connector1▶ Add
 28-P-191O-Ring1▶ Add
 34-P-74Shifter Cover1▶ Add
 329260XConversion Kit, 440 to 442 Series ▶ Add
 37-P-19Spring1▶ Add
 1-P-557XHousing, Standard Mount1▶ Add
 51-P-22Shifter Lever1▶ Add
 1-P-557P.T.O. Housing  no longer available — call for a replacement1
 63-P-16Poppet Pin1▶ Add
 500597-16Roll Pin, Standard Mount (1.125" Long)1▶ Add
 329265-1XShifter Plate Ass'y1▶ Add
 328594-13XBearing Spacer Kit1▶ Add
 378004Flat Washer1▶ Add
 379639Indicator Switch Norm. "On"  no longer available — call for a replacement1
 329261XConversion Kit ▶ Add
 500356-10Lock Washer1▶ Add
 500365-22Flat Washer1▶ Add
 1-P-558XDeep Mount w/Roll Pin1▶ Add
 500409-6Hex. HD. Capscrew .312" 24 x .625"1▶ Add
 1-P-558Housing Deep Mount1▶ Add
 500597-14Roll Pin, Deep Mount (1" Long)1▶ Add
 329271-2XShifter Cover Assembly ▶ Add
 328594-13XBearing Spacer Kit1▶ Add
 28-P-191O-Ring1▶ Add
 329262XConversion Kit, 488 to 489 Series  no longer available — call for a replacement
 34-P-74Shifter Cover1▶ Add
 1-P-552XHousing Standard w/Roll Pin1▶ Add
 37-P-19Spring1▶ Add
 1-P-552Housing1▶ Add
 51-P-22Shifter Lever1▶ Add
 500597-16Pin Roll1▶ Add
 63-P-16Poppet Pin1▶ Add
 328594-13XBearing Spacer Kit (Non Pressure Lube)1▶ Add
 329265-2XShifter Plate Ass'y1▶ Add
 378004Flat Washer1▶ Add
 329263XConversion Kit  call to confirm availability
 379639Indicator Switch Norm. "On"  no longer available — call for a replacement1
 500356-10Lock Washer1▶ Add
 1-P-562XDeep Mount1▶ Add
 500365-22Flat Washer1▶ Add
 1-P-562Housing1▶ Add
 500409-6Hex. HD. Capscrew .312" 24 x .625"1▶ Add
 500597-16Pin Roller1▶ Add
 328594-13XBearing Spacer Kit1▶ Add
 329304XBearing Cap & Seal ▶ Add
 31-P-102Thrust Washer1▶ Add
 21-P-641Bearing Cap1▶ Add
 379672Plug O-Ring1▶ Add
 28-P-224Oil Seal1▶ Add
 9-P-88Idler Shaft1▶ Add
 550439Bearing Cone1▶ Add
 329361XShifter Cover Assembly, Air Shift ▶ Add
 28-P-191O-Ring ▶ Add
 34-P-130Shifter Cover1▶ Add
 379639Indicator Switch (Normally OFF)  no longer available — call for a replacement1
 21-P-572Flange Pump1▶ Add
 28-P-216Oil Seal1▶ Add
 3-P-980Output Shaft1▶ Add
 329195XBearing Cap Ass'y1▶ Add
 329265-1XPost and Plate Assembly, (Ass'y 3 & 6) ▶ Add
 378391Lock/Retaining2▶ Add
 62-P-45Shifter Plate  call to confirm availability1
 378447-6Socket Head7▶ Add
 63-P-23Shifter Pin  call to confirm availability1
 379638P.T.O. Tag1▶ Add
 64-P-1Shifter Shoe  call to confirm availability1
 379688Lubricant Spline1▶ Add
 378244Shifter Post  call to confirm availability1
 378246Lockring  call to confirm availability1
 378313Lifter Plate  call to confirm availability1
 329265-2XPost and Plate Assembly, (Ass'y 4 & 5) ▶ Add
 329436-1XPump Conv Kit "RA" "B" Ratio Only ▶ Add
 62-P-46Shifter Plate  call to confirm availability1
 21-P-628Pump Flange1▶ Add
 63-P-23Shifter Pin  call to confirm availability1
 28-P-216Oil Seal1▶ Add
 64-P-1Shifter Shoe  call to confirm availability1
 3-P-980Output Shaft1▶ Add
 378244Shifter Post  call to confirm availability1
 329195XBearing Cap Ass'y1▶ Add
 378246Lockring  call to confirm availability1
 378391Lock/Retaining2▶ Add
 378313Lifter Plate  call to confirm availability1
 378447-6Socket Head7▶ Add
 379638P.T.O. Tag1▶ Add
 379688Lubricant Spline1▶ Add

Bill of Materials — manual page 31

ItemPart numberDescriptionQtyOrder
 329436-3XPump Conv Kit "XK" "B" Ratio Only ▶ Add
 328170-77XStud Kit, Deep Mount (422 Series) ▶ Add
 3-P-979Output Shaft1▶ Add
 379744Flange Nut3▶ Add
 328333XFlange Assembly1▶ Add
 378431-11Hex Capscrew3▶ Add
 378391Lock/Retaining2▶ Add
 379423-12Stud .375"3▶ Add
 378447-8Socket Head4▶ Add
 378774Tablock Washer3▶ Add
 379688Lubricant Spline1▶ Add
 328170-200XStud Kit Standard & Deep Mount (489 Series) ▶ Add
 379224Tab Lockwasher6▶ Add
 378432-12Capscrew6▶ Add
 379424-18Stud2▶ Add
 329436-6XPump Conv Kit "XO" "B" Ratio Only  no longer available — call for a replacement
 379745Flange Nut2▶ Add
 28-P-216Oil Seal1▶ Add
 3-P-979Output Shaft1▶ Add
 328170-201X Stud Kit, Metric (489 Series) ▶ Add
 328589XBearing Cap1▶ Add
 379745Flange Nut8▶ Add
 378391Lock/Retaining2▶ Add
 379429-19Stud Metric8▶ Add
 378447-8Socket Head4▶ Add
 379688Lubricant Spline1▶ Add
 328346-10XCable Control ▶ Add
 378441-1010 Ft. Wire1▶ Add
 378502Knob1▶ Add
 328356-13XGasket & Seal Kit ▶ Add
 28-P-216Oil Seal1▶ Add
 328989XFlange Assembly1▶ Add
 378391Lock/Retaining2▶ Add
 28-P-190O-Ring1▶ Add
 378447-8Socket Head4▶ Add
 28-P-191O-Ring2▶ Add
 379688Lubricant Spline1▶ Add
 28-P-216Oil Seal1▶ Add
 3-P-979Output Shaft1▶ Add
 35-P-8Gasket, Shifter Cover2▶ Add
 378391Lockring2▶ Add
 378774Lockwasher6▶ Add
 21-P-638Pump Flange1▶ Add
 328356-15XShifter Cover Seal Kit (Wire Control) ▶ Add
 329322XBearing Cap1▶ Add
 22-P-69Gasket1▶ Add
 378391Lock/Retaining2▶ Add
 28-P-191O-Ring1▶ Add
 378447-6Socket Head4▶ Add
 28-P-226Oil Seal1▶ Add
 379638P.T.O. Tag1▶ Add
 35-P-8Gasket, Shifter Cover1▶ Add
 379688Lubricant Spline1▶ Add
 378446-4Screw, Socket6▶ Add
 28-P-216Oil Seal1▶ Add
 3-P-979Output Shaft1▶ Add
 28-P-190O-Ring1▶ Add
 329436-9XPump Conv Kit "SQ" "B" Ratio Only  no longer available — call for a replacement
 28-P-191O-Ring1▶ Add
 28-P-216Oil Seal1▶ Add
 28-P-216Oil Seal1▶ Add
 3-P-979Output Shaft1▶ Add
 35-P-8Gasket, Shifter Cover1▶ Add
 329449XBearing Cap1▶ Add
 378391Lock/Retaining2▶ Add
 378447-8Socket Head4▶ Add
 378391Lockring2▶ Add
 379688Lubricant Spline1▶ Add
 328170-76XStud Kit, Standard (422 Series) ▶ Add
 379423-15Stud .375"6▶ Add
 379744Flange Nut6▶ Add

Bill of Materials — manual page 32

ItemPart numberDescriptionQtyOrder
 328356-67XGasket & Seal Kit ▶ Add
 328388-46XInst Kit Parts Bag ▶ Add
 379900Ass'y Fuse1▶ Add
 378416Hex Nipple1▶ Add
 379042Male Connector2▶ Add
 28-P-191O-Ring2▶ Add
 379043Male Elbow1▶ Add
 28-P-216Oil Seal1▶ Add
 379253Ring Connector1▶ Add
 35-P-8Gasket, Shifter Cover1▶ Add
 379257Splice Connect1▶ Add
 379306Fork Connector4▶ Add
 500357-7Lockwasher2▶ Add
 500457-6Slotted Screw2▶ Add
 328356-69XShifter Cover Seal Kit ▶ Add
 379904Push Connect1▶ Add
 22-P-69Gasket1▶ Add
 328388-47X12V Electric Over Air ▶ Add
 28-P-191O-Ring1▶ Add
 328388-46XInst Kit P Shift Option1▶ Add
 28-P-226Oil Seal1▶ Add
 378414Pressure Protection Valve1▶ Add
 5-A-188Spacer1▶ Add
 378881Rocker Swivel  no longer available — call for a replacement1
 378978Indicator1▶ Add
 379044-7Nylon Tubing  call to confirm availability1
 379252Butt Connector2▶ Add
 328356-71XShifter Cover Seal Kit (Air Shift) ▶ Add
 379258Bracket1▶ Add
 28-P-41O-Ring1▶ Add
 379303-1Valve 12V1▶ Add
 28-P-42O-Ring2▶ Add
 379336Switch Bracket1▶ Add
 378316Retainer2▶ Add
 379254-3Wire, Green1▶ Add
 35-P-8Gasket, Shifter Cover2▶ Add
 379106Breather Cap1▶ Add
 379640Booted Connector1▶ Add
 328388-48X24V Electric Over Air ▶ Add
 328380XMounting Parts Kit ▶ Add
 379640Booted Connector1▶ Add
 378326Nut, Hex1▶ Add
 328388-46XInst Kit P Shift Option1▶ Add
 50-P-17Bracket, Wire Control1▶ Add
 378414Pressure Protection Valve1▶ Add
 50-P-19Swivel Bracket1▶ Add
 378881Rocker Swivel  no longer available — call for a replacement1
 500396-8Screw, Hex1▶ Add
 379005Indicator  no longer available — call for a replacement1
 500568-4Set Screw1▶ Add
 379044-7Nylon Tubing  call to confirm availability1
 378019Pivot Pin1▶ Add
 379252Butt Connector1▶ Add
 379258Bracket1▶ Add
 328388-37XAir Shift Installation Kit ("A" Shifter)  no longer available — call for a replacement
 379303-2Valve 24V1▶ Add
 328388-44XAir Shift1▶ Add
 379336Switch Bracket1▶ Add
 329090-1XValve Kit  call to confirm availability1
 379106Breather Cap1▶ Add
 379044-7Nylon Tubing  call to confirm availability1
 379254-3Wire, Green1▶ Add
 379130Support Bracket2▶ Add
 68-P-27Control Plate1▶ Add
 328388-65XAir-O-Matic Shift ▶ Add
 379640Booted Connector1▶ Add
 329214XApsco Valve1▶ Add
 378414Pressure Protection Valve1▶ Add
 328388-44XAir Shift Kit ▶ Add
 328388-64XAirshift Kit1▶ Add
 378416Hex Nipple1▶ Add
 378978Indicator1▶ Add
 328388-72XAir Shift ▶ Add
 379042Male Connector2▶ Add
 378414Pressure Protection Valve1▶ Add
 379043Male Elbow1▶ Add
 329316XValve Assembly1▶ Add
 379252Butt Connector2▶ Add
 328388-64XAirshift Kit1▶ Add
 500357-7Lockwasher8▶ Add
 500376-6Nut 10-24  no longer available — call for a replacement4
 328388-97XAirshift ▶ Add
 500448-9Screw Slot4▶ Add
 328931XKit Valve1▶ Add
 379900Ass'y Fuse1▶ Add
 500357-7Lockwasher4▶ Add
 379904Push Connect1▶ Add
 500376-6Nut 10-24  no longer available — call for a replacement4
 500448-9Screw Slot4▶ Add
 378416Hex Nipple1▶ Add
 379042Male Connector1▶ Add
 379252Butt Connector2▶ Add
 379900Ass'y Fuse1▶ Add
 379904Push Connect1▶ Add
 75-P-13Light Indicator1▶ Add

Bill of Materials — manual page 33

ItemPart numberDescriptionQtyOrder
 328388-98XKit Installation Air Shift ▶ Add
 328591-17X"XO" Pump Conversion ▶ Add
 328388-97XAir Shift1▶ Add
 28-P-216Oil Seal1▶ Add
 329090-6XKit Valve1▶ Add
 3-P-282Pump Shaft1▶ Add
 379044-7Nylon Tubing  call to confirm availability1
 328589XBearing Cap1▶ Add
 379130Support Bracket2▶ Add
 378391Lock/Retaining2▶ Add
 379640Booted Connector1▶ Add
 378447-8Socket Head4▶ Add
 379688Lubricant Spline1▶ Add
 328390-117XCable to Air ▶ Add
 35-P-8Shifter Cover1▶ Add
 329361XShifter Cover1▶ Add
 378430-9Hex Capscrew4▶ Add
 328388-98XKit Installation1▶ Add
 328591-18X"XL'.' Pump Conversion  call to confirm availability
 28-P-216Oil Seal1▶ Add
 3-P-283Pump Shaft1▶ Add
 328390-119XCable to Electric/Air ▶ Add
 328580XFlange Assembly1▶ Add
 328388-47X12V Electric1▶ Add
 378391Lock/Retaining2▶ Add
 329361XShifter Cover1▶ Add
 378447-8Socket Head4▶ Add
 35-P-8Shifter Cover1▶ Add
 379688Lubricant Spline1▶ Add
 378430-11Hex Capscrew4▶ Add
 328390-120XCable to Electric/Air ▶ Add
 328388-48X24V Electric Over Air1▶ Add
 328591-23X"XP" Pump Conversion  call to confirm availability
 329361XShifter Cover1▶ Add
 28-P-216Oil Seal1▶ Add
 35-P-8Shifter Cover1▶ Add
 3-P-282Pump Shaft1▶ Add
 378430-11Hex Capscrew4▶ Add
 328328XFlange Assembly1▶ Add
 378391Lock/Retaining2▶ Add
 378447-8Socket Head4▶ Add
 328591-10X"XG" Pump Conversion ▶ Add
 379688Lubricant Spline1▶ Add
 28-P-216Oil Seal1▶ Add
 3-P-281Pump Shaft1▶ Add
 328580XFlange Assembly1▶ Add
 378391Lock/Retaining2▶ Add
 378447-8Socket Head4▶ Add
 328591-26X"XO" Pump Conversion  call to confirm availability
 28-P-216Oil Seal1▶ Add
 3-P-284Pump Shaft1▶ Add
 328328XFlange Assembly1▶ Add
 378391Lock/Retaining2▶ Add
 328591-11X"XJ" Pump Conversion ▶ Add
 378447-8Socket Head4▶ Add
 28-P-216Oil Seal1▶ Add
 3-P-284Pump Shaft1▶ Add
 328580XFlange Assembly1▶ Add
 378391Lock/Retaining2▶ Add
 378447-8Socket Head4▶ Add
 328591-27X"XE" Pump Conversion ▶ Add
 28-P-216Oil Seal1▶ Add
 3-P-800Pump Shaft1▶ Add
 328328XFlange Assembly1▶ Add
 378391Lock/Retaining2▶ Add
 328591-16X"XK" Pump Conversion ▶ Add
 378447-8Socket Head4▶ Add
 3-P-282Pump Shaft1▶ Add
 379688Lubricant Spline1▶ Add
 328333XFlange Assembly1▶ Add
 378391Lock/Retaining2▶ Add
 378447-8Socket Head4▶ Add
 379688Lubricant Spline1▶ Add

Bill of Materials — manual page 34

ItemPart numberDescriptionQtyOrder
 328591-28X"AK" Pump Conversion ▶ Add
 328591-45X"LB" Pump Conversion  call to confirm availability
 28-P-216Oil Seal1▶ Add
 28-P-216Oil Seal1▶ Add
 3-P-282Pump Shaft1▶ Add
 3-P-858Pump Shaft  no longer available — call for a replacement1
 328989XFlange Assembly1▶ Add
 328328XFlange Assembly1▶ Add
 378391Lock/Retaining2▶ Add
 329091XLube Pump  no longer available — call for a replacement1
 378447-8Socket Head4▶ Add
 329092XPressure Lube1▶ Add
 379688Lubricant Spline1▶ Add
 378391Lock/Retaining2▶ Add
 378447-8Socket Head4▶ Add
 379533Installation  no longer available — call for a replacement1
 379534Inst Instruction1▶ Add
 500841-1Elbow 90°1▶ Add
 328591-29X"FP' Pump Conversion  no longer available — call for a replacement
 500897-5Plug Shipping  call to confirm availability1
 28-P-219Oil Seal1▶ Add
 9-P-76Idler Shaft  call to confirm availability1
 3-P-851Pump Shaft  call to confirm availability1
 329088XFlange Assembly1▶ Add
 378391Lock/Retaining2▶ Add
 378447-10Capscrew4▶ Add
 379688Lubricant Spline1▶ Add
 328591-46X"LC" Pump Conversion  call to confirm availability
 28-P-216Oil Seal1▶ Add
 3-P-858Pump Shaft  no longer available — call for a replacement1
 328589XBearing Cap1▶ Add
 329091XLube Pump  no longer available — call for a replacement1
 328591-30X"AF" Pump Conversion ▶ Add
 329092XPressure Lube1▶ Add
 28-P-219Oil Seal1▶ Add
 378391Lock/Retaining1▶ Add
 3-P-854Pump Shaft1▶ Add
 378447-8Socket Head4▶ Add
 329088XFlange Assembly1▶ Add
 379533Installation  no longer available — call for a replacement1
 378391Lock/Retaining2▶ Add
 379534Inst Instruction1▶ Add
 378447-10Capscrew4▶ Add
 500841-1Elbow 90°1▶ Add
 379688Lubricant Spline1▶ Add
 500897-5Plug Shipping  call to confirm availability1
 9-P-76Idler Shaft  call to confirm availability1
 328591-44X"LA" Pump Conversion  call to confirm availability
 28-P-216Oil Seal1▶ Add
 328591-47X"LE" Pump Conversion  call to confirm availability
 3-P-858Pump Shaft  no longer available — call for a replacement1
 28-P-216Oil Seal1▶ Add
 328989XFlange Assembly1▶ Add
 3-P-858Pump Shaft  no longer available — call for a replacement1
 329091XLube Pump  no longer available — call for a replacement1
 328584XFlange Assembly  call to confirm availability1
 329092XPressure Lube1▶ Add
 329091XLube Pump  no longer available — call for a replacement1
 378391Lock/Retaining2▶ Add
 329092XPressure Lube1▶ Add
 378447-8Socket Head4▶ Add
 378391Lock/Retaining2▶ Add
 379533Installation  no longer available — call for a replacement1
 378447-8Socket Head4▶ Add
 379534Inst Instruction1▶ Add
 379533Installation  no longer available — call for a replacement1
 500841-1Elbow 90°1▶ Add
 379534Inst Instruction1▶ Add
 500897-5Plug Shipping  call to confirm availability1
 500841-1Elbow 90°1▶ Add
 9-P-76Idler Shaft  call to confirm availability1
 500897-5Plug-Shipping  call to confirm availability1
 9-P-76Idler Shaft  call to confirm availability1

Bill of Materials — manual page 35

ItemPart numberDescriptionQtyOrder
 328591-48X"LF" Pump Conversion ▶ Add
 328591-56XPump Conv. Kit "XD" ▶ Add
 3-P-858Pump Shaft  no longer available — call for a replacement1
 21-P-572Flange Pump1▶ Add
 328333XFlange Assembly1▶ Add
 28-P-216Oil Seal1▶ Add
 329091XLube Pump  no longer available — call for a replacement1
 3-P-283Pump Shaft1▶ Add
 329092XPressure Lube1▶ Add
 329195XBearing Cap Ass'y1▶ Add
 378391Lock/Retaining2▶ Add
 378391Lock/Retaining2▶ Add
 378447-8Socket Head4▶ Add
 378447-6Socket Head7▶ Add
 379533Installation  no longer available — call for a replacement1
 379638P.T.O. Tag1▶ Add
 379534Inst Instruction1▶ Add
 379688Lubricant Spline1▶ Add
 500841-1Elbow 90°1▶ Add
 500897-5Plug Shipping  call to confirm availability1
 9-P-76Idler Shaft  call to confirm availability1
 328591-70X"AZ' Pump Conversion ▶ Add
 379688Lubricant Spline1▶ Add
 378447-11Capscrew4▶ Add
 328591-52XPump Conv. Kit "XD" ▶ Add
 3-P-844Output Shaft1▶ Add
 28-P-216Oil Seal1▶ Add
 378391Lock/Retaining2▶ Add
 3-P-283Pump Shaft1▶ Add
 329052XBearing Cap1▶ Add
 328711XPump Mount1▶ Add
 28-P-275Oil Seal1▶ Add
 329194XBearing Cap Ass'y1▶ Add
 378391Lock/Retaining2▶ Add
 379063Flat Washer4▶ Add
 379673Stud4▶ Add
 379688Lubricant Spline1▶ Add
 328591-71XPump Conversion Kit ▶ Add
 28-P-219Oil Seal1▶ Add
 329088XFlange Assembly1▶ Add
 378391Lock/Retaining2▶ Add
 328591-53XPump Conv. Kit "R" ▶ Add
 378447-10Capscrew4▶ Add
 378447-6Socket Head7▶ Add
 28-P-268Oil Seal1▶ Add
 379638P.T.O. Tag1▶ Add
 328273XBearing Cap1▶ Add
 21-P-628Pump Flange1▶ Add
 3-P-921XDrive Shaft Ass'y1▶ Add
 379688Lubricant Spline1▶ Add
 328591-54XPump Conv. Kit "R" ▶ Add
 3-P-921Drive Shaft  no longer available — call for a replacement1
 21-P-572Flange Pump1▶ Add
 378447-6Socket Head7▶ Add
 500168-2Fitting1▶ Add
 379638P.T.O. Tag1▶ Add
 379819Grease Fit1▶ Add
 21-P-628Pump Flange1▶ Add
 28-P-216Oil Seal1▶ Add
 3-P-283Pump Shaft1▶ Add
 328591-72XPump Conversion Kit ▶ Add
 329195XBearing Cap Ass'y1▶ Add
 378447-6Socket Head7▶ Add
 378391Lock/Retaining2▶ Add
 329195XBearing Cap Ass'y1▶ Add
 378447-6Socket Head7▶ Add
 379638P.T.O. Tag1▶ Add
 379638P.T.O. Tag1▶ Add
 328273XBearing Cap1▶ Add
 379688Lubricant Spline1▶ Add
 28-P-268Oil Seal1▶ Add
 3-P-923XDrive Shaft Ass'y1▶ Add
 3-P-923Drive Shaft  no longer available — call for a replacement1
 379688Lubricant Spline1▶ Add
 500168-2Fitting1▶ Add
 379819Grease Fit1▶ Add
 28-P-216Oil Seal1▶ Add
 378391Lock/Retaining2▶ Add
 21-P-628Pump Flange1▶ Add

Bill of Materials — manual page 36

ItemPart numberDescriptionQtyOrder
 328591-73XPump Conversion Kit ▶ Add
 328591-76XPump Conversion Kit  no longer available — call for a replacement
 378391Lock/Retaining2▶ Add
 3-P-923XDrive Shaft Ass'y1▶ Add
 379638P.T.O. Tag1▶ Add
 3-P-923Drive Shaft  no longer available — call for a replacement1
 3-P-923XDrive Shaft Ass'y1▶ Add
 379688Lubricant Spline1▶ Add
 3-P-923Drive Shaft  no longer available — call for a replacement1
 500168-2Fitting1▶ Add
 379688Lubricant Spline1▶ Add
 379819Grease Fit1▶ Add
 500168-2Fitting1▶ Add
 328273XBearing Cap1▶ Add
 379819Grease Fit1▶ Add
 28-P-268Oil Seal1▶ Add
 328273XBearing Cap1▶ Add
 28-P-216Oil Seal1▶ Add
 28-P-268Oil Seal1▶ Add
 328711XPump Mount1▶ Add
 21-P-628Pump Flange1▶ Add
 329194XBearing Cap Ass'y1▶ Add
 378447-6Socket Head7▶ Add
 378391Lock/Retaining 2 ▶ Add
 379063Flat Washer4▶ Add
 379673Stud4▶ Add
 328591-74XPump Conversion Kit ▶ Add
 3-P-923XDrive Shaft Ass'y1▶ Add
 3-P-923Drive Shaft  no longer available — call for a replacement1
 328591-78XPump Conversion Kit ▶ Add
 379688Lubricant Spline1▶ Add
 21-P-626Pump Flange1▶ Add
 500168-2Fitting1▶ Add
 28-P-219Oil Seal1▶ Add
 379819Grease Fit1▶ Add
 3-P-924Output Shaft1▶ Add
 328273XBearing Cap1▶ Add
 329264XBearing Cap Ass'y1▶ Add
 28-P-268Oil Seal1▶ Add
 378391Lock/Retaining2▶ Add
 28-P-216Oil Seal1▶ Add
 378447-6Socket Head7▶ Add
 329195XBearing Cap Ass'y1▶ Add
 379688Lubricant Spline1▶ Add
 378391Lock/Retaining2▶ Add
 379638P.T.O. Tag1▶ Add
 378447-6Socket Head7▶ Add
 28-P-271O-Ring1▶ Add
 379638P.T.O. Tag1▶ Add
 21-P-572Flange Pump1▶ Add
 328591-86XConversion Kit To "GK" ▶ Add
 378447-8Socket Head4▶ Add
 328591-75XPump Conversion Kit  no longer available — call for a replacement
 28-P-216Oil Seal1▶ Add
 21-P-572Flange Pump1▶ Add
 378391Lock/Retaining2▶ Add
 378447-6Socket Head7▶ Add
 328273XBearing Cap1▶ Add
 379638P.T.O. Tag1▶ Add
 28-P-268Oil Seal1▶ Add
 3-P-923XDrive Shaft Ass'y1▶ Add
 3-P-933XOutput Shaft1▶ Add
 3-P-923Drive Shaft  no longer available — call for a replacement1
 379819Grease Fit1▶ Add
 379688Lubricant Spline1▶ Add
 500168-2Fitting1▶ Add
 500168-2Fitting1▶ Add
 3-P-933Output Shaft1▶ Add
 379819Grease Fit1▶ Add
 379688Lubricant Spline1▶ Add
 328273XBearing Cap1▶ Add
 28-P-268Oil Seal1▶ Add
 378391Lock/Retaining2▶ Add

Bill of Materials — manual page 37

ItemPart numberDescriptionQtyOrder
 328591-91XConversion Kit "XD" To "GQ" ▶ Add
 378391Lock/Retaining2▶ Add
 378391Lock/Retaining2▶ Add
 328273XBearing Cap1▶ Add
 328589XBearing Cap1▶ Add
 28-P-268Oil Seal1▶ Add
 28-P-216Oil Seal1▶ Add
 378447-8Socket Head4▶ Add
 28-P-268Oil Seal1▶ Add
 3-P-939XOutput Shaft1▶ Add
 328273XBearing Cap1▶ Add
 379688Lubricant Spline1▶ Add
 378447-8Socket Head4▶ Add
 3-P-939Output Shaft1▶ Add
 3-P-933XOutput Shaft1▶ Add
 379819Grease Fit1▶ Add
 379819Grease Fit1▶ Add
 500168-2Fitting1▶ Add
 500168-2Fitting1▶ Add
 28-P-275Oil Seal1▶ Add
 3-P-933Output Shaft1▶ Add
 379688Lubricant Spline1▶ Add
 328591-89XConversion Kit "XD" To "GK'' ▶ Add
 328273XBearing Cap1▶ Add
 328591-92XConversion Kit "XD" To "GY" ▶ Add
 3-P-933XOutput Shaft1▶ Add
 28-P-275Oil Seal1▶ Add
 379819Grease Fit1▶ Add
 378391Lock/Retaining2▶ Add
 500168-2Fitting1▶ Add
 329234XBearing Cap1▶ Add
 3-P-933Output Shaft1▶ Add
 378447-6Socket Head4▶ Add
 379688Lubricant Spline1▶ Add
 328273XBearing Cap1▶ Add
 28-P-268Oil Seal1▶ Add
 28-P-268Oil Seal1▶ Add
 378391Lock/Retaining2▶ Add
 3-P-938XOutput Shaft1▶ Add
 328333XFlange Assembly1▶ Add
 500168-2Fitting1▶ Add
 378447-8Socket Head4▶ Add
 379688Lubricant Spline1▶ Add
 3-P-938Output Shaft1▶ Add
 379819Grease Fit1▶ Add
 328591-90XConversion Kit "XD"To "GP" ▶ Add
 378447-8Socket Head4▶ Add
 28-P-268Oil Seal1▶ Add
 328591-93XConversion Kit "XD" To "GZ" ▶ Add
 28-P-216Oil Seal1▶ Add
 378391Lock/Retaining2▶ Add
 378391Lock/Retaining2▶ Add
 329052XBearing Cap1▶ Add
 328328XFlange Assembly1▶ Add
 328273XBearing Cap1▶ Add
 328273XBearing Cap1▶ Add
 28-P-268Oil Seal1▶ Add
 3-P-933XOutput Shaft1▶ Add
 378447-11Capscrew4▶ Add
 379819Grease Fit1▶ Add
 3-P-939XOutput Shaft1▶ Add
 500168-2Fitting1▶ Add
 379688Lubricant Spline1▶ Add
 3-P-933Output Shaft1▶ Add
 3-P-939Output Shaft1▶ Add
 379688Lubricant Spline1▶ Add
 379819Grease Fit1▶ Add
 500168-2Fitting1▶ Add
 28-P-275Oil Seal1▶ Add

Bill of Materials — manual page 38

ItemPart numberDescriptionQtyOrder
 328591-106XConversion Kit "RA" To "GA"  call to confirm availability
 328591-112XConversion Kit "XD" To "RC"  call to confirm availability
 28-P-268Oil Seal1▶ Add
 329322XBearing Cap1▶ Add
 328273XBearing Cap1▶ Add
 28-P-216Oil Seal1▶ Add
 378391Lock/Retaining2▶ Add
 3-P-800Pump Shaft1▶ Add
 28-P-216Oil Seal-21▶ Add
 378391Lock/Retaining2▶ Add
 3-P-923XDrive Shaft Ass'y1▶ Add
 379638P.T.O. Tag1▶ Add
 3-P-923Drive Shaft  no longer available — call for a replacement1
 378447-6Socket Head4▶ Add
 379688Lubricant Spline1▶ Add
 379688Lubricant Spline1▶ Add
 500168-2Fitting1▶ Add
 378446-4Screw, Socket6▶ Add
 379819Grease Fit1▶ Add
 21-P-638Pump Flange1▶ Add
 378447-6Socket Head7▶ Add
 328591-113XConversion Kit "XD" To "RD" ▶ Add
 328591-107XConversion Kit "RB" To "GB" ▶ Add
 21-P-638Pump Flange1▶ Add
 3-P-923XDrive Shaft Ass'y1▶ Add
 329322XBearing Cap1▶ Add
 3-P-923Drive Shaft  no longer available — call for a replacement1
 378391Lock/Retaining2▶ Add
 379688Lubricant Spline1▶ Add
 378447-6Socket Head4▶ Add
 500168-2Fitting1▶ Add
 379638P.T.O. Tag1▶ Add
 379819Grease Fit1▶ Add
 379688Lubricant Spline1▶ Add
 378447-6Socket Head7▶ Add
 378446-4Screw, Socket6▶ Add
 28-P-268Oil Seal1▶ Add
 28-P-216Oil Seal1▶ Add
 28-P-216Oil Seal1▶ Add
 3-P-282Pump Shaft1▶ Add
 328273XBearing Cap1▶ Add
 378391Lock/Retaining2▶ Add
 328591-114XConversion Kit "RF" To "GH" ▶ Add
 378447-6Socket Head7▶ Add
 328591-108XConversion Kit "AF" To "GF" ▶ Add
 378391Lock/Retaining2▶ Add
 28-P-268Oil Seal1▶ Add
 28-P-219Oil Seal1▶ Add
 28-P-219Oil Seal1▶ Add
 28-P-268Oil Seal1▶ Add
 328273XBearing Cap1▶ Add
 328273XBearing Cap1▶ Add
 378391Lock/Retaining2▶ Add
 3-P-941XDrive Shaft1▶ Add
 378447-10Capscrew4▶ Add
 3-P-941Drive Shaft1▶ Add
 3-P-921XDrive Shaft Ass'y1▶ Add
 379688Lubricant Spline1▶ Add
 379688Lubricant Spline1▶ Add
 379819Grease Fit1▶ Add
 3-P-921Drive Shaft  no longer available — call for a replacement1
 500168-2Fitting1▶ Add
 500168-2Fitting1▶ Add
 379819Grease Fit1▶ Add

Bill of Materials — manual page 39

ItemPart numberDescriptionQtyOrder
 328591-116XConversion Kit "XD" To "GH" ▶ Add
 328591-134XPump Conv Kit "XD" To "RE" ▶ Add
 28-P-219Oil Seal1▶ Add
 21-P-654Pump Flange1▶ Add
 378447-6Socket Head7▶ Add
 329264XBearing Cap Ass'y1▶ Add
 378391Lock/Retaining2▶ Add
 378391Lock/Retaining1▶ Add
 21-P-626Pump Flange1▶ Add
 378447-6Socket Head7▶ Add
 329264XBearing Cap Ass'y1▶ Add
 379638P.T.O. Tag1▶ Add
 328273XBearing Cap1▶ Add
 379688Lubricant Spline1▶ Add
 28-P-268Oil Seal1▶ Add
 28-P-271O-Ring1▶ Add
 28-P-219Oil Seal1▶ Add
 3-P-941XDrive Shaft1▶ Add
 28-P-271O-Ring1▶ Add
 3-P-941Drive Shaft1▶ Add
 3-P-924Output Shaft1▶ Add
 379688Lubricant Spline1▶ Add
 379819Grease Fit1▶ Add
 500168-2Fitting1▶ Add
 328591-138XConversion Kit "XD" To "GJ" ▶ Add
 28-P-271O-Ring1▶ Add
 328273XBearing Cap1▶ Add
 328591-121XConversion Kit "XD" To "XY" ▶ Add
 378447-6Socket Head7▶ Add
 28-P-275Oil Seal1▶ Add
 378391Lock/Retaining2▶ Add
 3-P-768Shaft Output ("XY")1▶ Add
 329264XBearing Cap Ass'y1▶ Add
 329234XBearing Cap1▶ Add
 28-P-219Oil Seal1▶ Add
 378447-6Socket Head4▶ Add
 21-P-654Pump Flange1▶ Add
 378391Lock/Retaining2▶ Add
 28-P-268Oil Seal1▶ Add
 3-P-941XDrive Shaft1▶ Add
 3-P-941Drive Shaft1▶ Add
 379688Lubricant Spline1▶ Add
 379819Grease Fit1▶ Add
 328591-122XConversion Kit "XD" To "XX" ▶ Add
 500168-2Fitting1▶ Add
 501181Hex Nut  no longer available — call for a replacement1
 3-P-766Shaft Earby1▶ Add
 328591-142XPump Conversion Kit "XD" To "PF"  no longer available — call for a replacement
 28-P-216Oil Seal1▶ Add
 28-P-219Oil Seal1▶ Add
 379111SQ. Key 501▶ Add
 3-P-924Output Shaft1▶ Add
 378447-6Socket Head4▶ Add
 329264XBearing Cap Ass'y1▶ Add
 378391Lock/Retaining1▶ Add
 328591-130XConversion Kit "XD" To "XV" ▶ Add
 378447-6Socket Head7▶ Add
 379828Companion1▶ Add
 379688Lubricant Spline1▶ Add
 378454-7Setscrew1▶ Add
 379638P.T.O. Tag1▶ Add
 28-P-271O-Ring1▶ Add
 328591-131XConversion Kit "XD" To "RY" ▶ Add
 21-P-661Pump Flange1▶ Add
 378447-8Socket Head4▶ Add
 21-P-625Output Cover1▶ Add
 3-P-768Shaft Output ("XY")1▶ Add
 378391Lock/Retaining1▶ Add
 329356XBearing Cap Ass'y1▶ Add
 328591-143XPump Conversion Kit "XD" To "PA" ▶ Add
 329355-1XLoose Part1▶ Add
 378447-6Socket Head7▶ Add
 378391Lock/Retaining2▶ Add
 21-P-661Pump Flange1▶ Add
 28-P-216Oil Seal1▶ Add
 329195XBearing Cap Ass'y1▶ Add
 3-P-283Pump Shaft1▶ Add
 379638P.T.O. Tag1▶ Add
 379688Lubricant Spline1▶ Add

Bill of Materials — manual page 40

ItemPart numberDescriptionQtyOrder
 328591-149X"SQ" Pump Conversion  no longer available — call for a replacement
 328594-16XBearing and Spacer Kit ▶ Add
 28-P-216Oil Seal1▶ Add
 3-P-282Pump Shaft1▶ Add
 329449XBearing Cap1▶ Add
 378391Lock/Retaining2▶ Add
 378447-8Socket Head4▶ Add
 14-P-75Spacer, Input Bearing1▶ Add
 379688Lubricant Spline1▶ Add
 28-P-191O-Ring1▶ Add
 31-P-102Thrust Washer1▶ Add
 379672Plug, NWD1▶ Add
 500841-1Street Elbow 90°1▶ Add
 500897-5Plug, Shipping  call to confirm availability1
 328594-13XBearing and Spacer Kit (Non-Pressure Lube) ▶ Add
 550890Needle Bearing1▶ Add
 561006Bearing1▶ Add
 9-P-89Shaft, Idler1▶ Add
 28-P-191O-Ring1▶ Add
 328751-1XInstallation Kit ("C", "H", "W", "X", "Y") ▶ Add
 31-P-102Thrust Washer, Bearing1▶ Add
 68-P-18Name Plate1▶ Add
 379672NWD Plug1▶ Add
 378978Indicator Light, 12V1▶ Add
 550439Bearing2▶ Add
 379900Fuse Holder, 10-Amp1▶ Add
 9-P-88Shaft, Idler1▶ Add
 379252Butt Connector2▶ Add
 379640Booted Connector ("V'' Shifter Option)1▶ Add
 328594-14XBearing and Spacer Kit (Pressure Lube) ▶ Add
 28-P-191O-Ring1▶ Add
 379085-1P.T.O. Instruction Decal1▶ Add
 31-P-102Thrust Washer1▶ Add
 328946XCaution Label Kit  no longer available — call for a replacement1
 379672NWD Plug1▶ Add
 379624Product Warranty Card1▶ Add
 500841-1Street Elbow 90°1▶ Add
 500897-5Shipping Plug  call to confirm availability1
 550439Bearing2▶ Add
 9-P-89Shaft, Idler1▶ Add
 328946XCaution Label Kit  no longer available — call for a replacement1
 328594-15XBearing and Spacer Kit ▶ Add
 379085-1P.T.O. Instructions Decal1▶ Add
 379624Product Warranty Card1▶ Add
 14-P-75Spacer, Input Bearing1▶ Add
 28-P-191O-Ring1▶ Add
 31-P-102Thrust Washer1▶ Add
 379672Plug, NWD1▶ Add
 379428-14Stud M106▶ Add
 550890Needle Bearing1▶ Add
 379744Flange Nut6▶ Add
 561006Bearing1▶ Add
 9-P-88Shaft, Idler1▶ Add

Parts list (page 41) — manual page 41

ItemPart numberDescriptionQtyOrder
 328388-98XInstallation Kit ;!: - ▶ Add
 75-P-13m (I) s: ▶ Add
 500448-9329648X ▶ Add
 379900en ▶ Add
 379904Ignition ▶ Add
 379252.1:1, -u ▶ Add
 3790424 Places iii" .1:1, ▶ Add
 379640(I) 0- ▶ Add

Part numbers and descriptions are taken from the Chelsea/Parker parts manual on this page. Chelsea® and Parker® are trademarks of Parker Hannifin Corporation; Pro Gear and Transmission is an independent distributor.

Not sure exactly which unit you have? Check our identification guides, or Ask an Expert — send us photos of your data tag and our drivetrain specialists will identify the unit and the exact parts you need. Or call (877) 776-4600.
!
Call Us Now!
