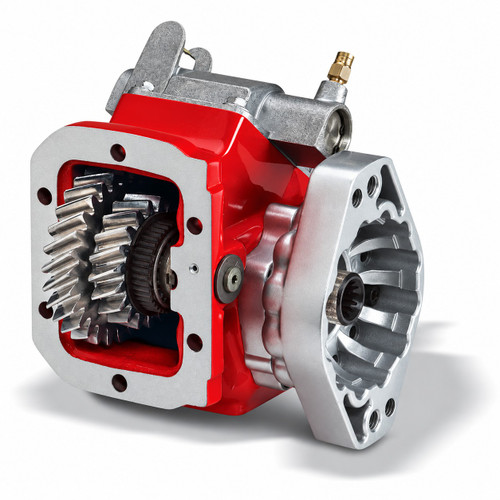

The Chelsea 442 Series Power Take-Off, part number 442ZSFNX-X5RA or 442ZSFNXX5RA, is a 6-bolt transmission-mount PTO built for light-to-medium duty vocational work. The cast iron housing and tapered cone bearings on the output shaft give the 442 Series its class-leading torque capacity, with intermittent torque ratings in the 201-300 lb-ft range (check application pages for your specific installation). Shift is wire/cable mechanical. The series supports a 1-1/4" round output shaft with a 1/4" key. Typical applications include tow trucks, service trucks, dump trucks, and small aerial trucks. Call us to confirm proper fit for your transmission.
Features
Chelsea 442 Series Power Take-Off
Part number: 442ZSFNX-X5RA or 442ZSFNXX5RA
6-bolt mounting fits virtually all current 6-bolt transmission applications
Cast iron housing with tapered cone bearings on the output shaft
Wire/cable mechanical shift type
1-1/4" round output shaft with 1/4" key
Suited for tow trucks, service trucks, dump trucks, and small aerial trucks
