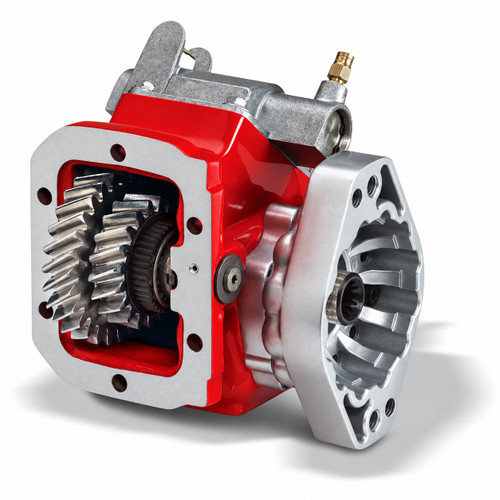

The Chelsea 442 Series Power Take-Off, part number 442ZUFNX-W5RK or 442ZUFNXW5RK, is a 6-bolt mount PTO designed to fit virtually all existing 6-bolt transmission applications. The cast iron housing and tapered cone bearings on the output shaft give this series its class-leading torque rating and extended service life. The 442 Series features a wire/cable mechanical shift type and a round output shaft with a 1-1/4" key. Intermittent torque for the series ranges from 201 to 300 lb-ft, with output power from 46 to 55 HP. Common applications for this series include dump trucks, tow trucks, service trucks, snow and ice trucks, and small aerial trucks. Call us to confirm proper fit for your specific transmission and application.
Features
Chelsea 442 Series PTO, part 442ZUFNX-W5RK or 442ZUFNXW5RK
6-bolt mounting configuration fits a wide range of transmission applications
Cast iron housing with tapered cone bearings on the output shaft
Wire/cable mechanical shift type
Round output shaft, 1-1/4" key drive
Series intermittent torque rating: 201-300 lb-ft (339 Nm); output power: 46-55 HP
