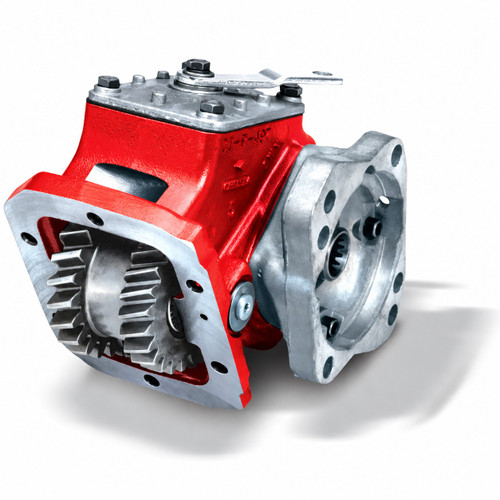

The Chelsea 447 Series power take-off, part number 447KWESX-W5RA or 447KWESXW5RA, mounts via a 6-bolt flange and uses a wire/cable mechanical shift. The output is a rotatable SAE B 2-bolt flange with a 7/8" 13-tooth SAE B shaft. Intermittent torque rating falls in the 201-300 lb-ft range; check Chelsea application pages for the actual rating verified to your transmission. Shaft power is rated at 21 HP at 500 RPM and 43 HP at 1,000 RPM. Compatible transmissions include Eaton/Fuller, ZF, and select other manufacturers. The 447 Series uses a one-piece input gear with a space between its two sets of gear teeth, designed to clear interference problems at the PTO aperture without requiring an adapter plate. Call us to confirm proper fit for your specific transmission.
Features
6-bolt mounting, no adapter plate required
Wire/cable mechanical shift
Rotatable SAE B 2-bolt flange with a 7/8" 13-tooth SAE B shaft
Intermittent torque: 201-300 lb-ft (305 Nm range); verify actual rating on Chelsea application pages
Shaft power: 21 HP at 500 RPM, 43 HP at 1,000 RPM
One-piece input gear design eliminates interference at the transmission PTO opening
Compatible with Eaton/Fuller, ZF, and other select transmission manufacturers
Tech Specs
- Intermittent Torque: 201-300 lb-ft / 301-400 Nm (225 lb-ft / 305 Nm - check application pages for actual torque rating)
- Continuous Torque: De-rate intermittent rating by 30% (check application pages for actual torque rating)
- Mounting Option: Standard Mount without Stud Kit (K)
- Gear Ratio Code: W
- Input Gear Designator: ES
- Lube Option: No Pressure Lube (X)
- Shift Option: Cable (Wire) Shift (W)
- Assembly Arrangement: 5
- Output Option: Rotatable SAE B 2-Bolt Flange, SAE B Shaft (7/8" 13T) (RA)
- Output Power: 36-45 HP / 31-40 kW
- Shaft Power: 21 HP at 500 RPM, 43 HP at 1,000 RPM (16 kW at 500 RPM, 32 kW at 1,000 RPM)
- Mounting Type: 6-Bolt
- Transmission Compatibility: Eaton/Fuller, ZF, and other select manufacturers
Additional Information
Parts manual and diagrams: Chelsea 447 Series PTO parts list with prices
