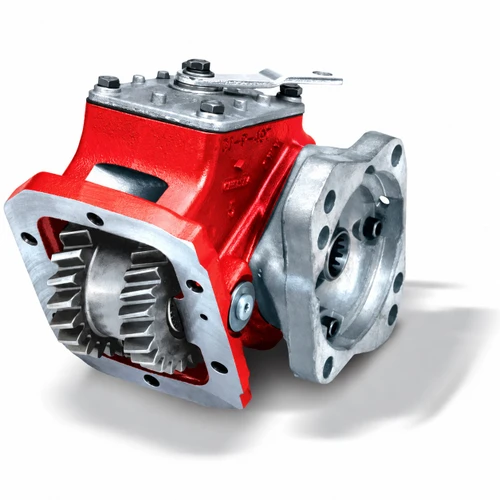

The Chelsea 447 Series Power Take-Off, part number 447XSESX-W3RA or 447XSESXW3RA, is a 6-bolt mounted PTO designed specifically to eliminate interference problems inside the transmission PTO opening. Its one-piece input gear with a space between the two sets of gear teeth prevents adjacent gear contact on transmissions where clearance is tight. The 447XSESX-W3RA uses wire/cable mechanical shift and carries a 1-1/4" round output shaft with keyway. Series intermittent torque ratings range from 201-300 lb-ft, with shaft power of 21 HP at 500 RPM and 43 HP at 1000 RPM. Compatible with Eaton/Fuller, ZF, and other transmission manufacturers. Call us to confirm proper fit for your application.
Features
6-bolt mounting, no adapter plate required for most installations
Wire/cable mechanical shift for flexible installation routing
1-1/4" round output shaft with keyway
Intermittent torque rating: 201-300 lb-ft (check application pages for actual rating)
Shaft power: 21 HP at 500 RPM, 43 HP at 1000 RPM
One-piece input gear eliminates adjacent gear interference inside the transmission PTO opening
Tech Specs
- Mounting Type: 6-Bolt
- Shift Type: Wire/Cable, Mechanical
- Output Shaft Type: 1-1/4" Round with Key
- Transmission Compatibility: Eaton/Fuller, ZF, Other
- Intermittent Torque: 201-300 lb-ft / 301-400 Nm (check application pages for actual torque ratings)
- Output Power: 36-45 HP / 31-40 kW
- Shaft Power: 21 HP (500 RPM), 43 HP (1000 RPM), 16 kW (500 RPM), 32 kW (1000 RPM)
