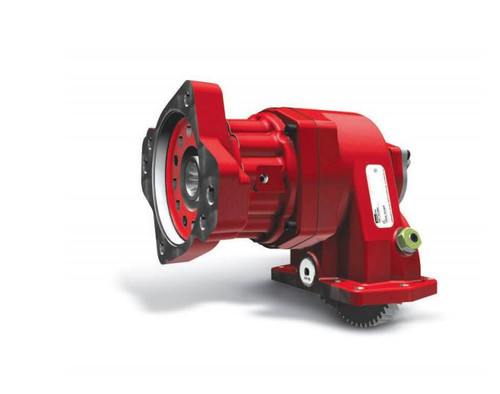

The Chelsea 877 Series Power Take-Off, part number 877XGFJP-M3RS or 877XGFJPM3RS, is a constant-mesh, 10-bolt PTO engineered for Allison transmissions. The output shaft is a 1-1/2" 10-tooth spline with a 1410 companion flange. Continuous torque is rated at 670 lb-ft (908 Nm), with intermittent torque capacity exceeding 501 lb-ft. Shaft power reaches 64 HP at 500 RPM and 128 HP at 1,000 RPM. Constant-mesh design suits load-sense pump applications that do not require mid-cycle disengagement. The compact housing reduces clearance demands, rotatable output flanges allow installation flexibility, and Wet Spline Technology extends service life for both the PTO and pump shaft. Common applications include refuse trucks, aerial units, snow and ice equipment, and fire and rescue vehicles. Call us to confirm proper fit for your transmission and installation.
Features
10-bolt mounting for Allison transmissions
Constant-mesh shift type suits load-sense pump applications
1-1/2" 10-tooth spline output with 1410 companion flange
Continuous torque: 670 lb-ft (908 Nm); intermittent: 501+ lb-ft
Shaft power: 64 HP at 500 RPM, 128 HP at 1,000 RPM
Compact housing, rotatable output flanges, and Wet Spline Technology for extended service life
Tech Specs
- Mounting Type: 10-Bolt
- Transmission Manufacturer: Allison
- Shift Type: Constant Mesh
- Output Shaft Type: 1-1/2" 10-Tooth Spline with 1410 Companion Flange
- Continuous Torque: 670 lb-ft / 908 Nm (check application pages for actual torque ratings)
- Intermittent Torque: 501+ lb-ft / 501+ Nm
- Output Power: 56+ HP / 51+ kW
- Shaft Power: 64 HP at 500 RPM, 128 HP at 1,000 RPM / 48 kW at 500 RPM, 95 kW at 1,000 RPM
